Summary:

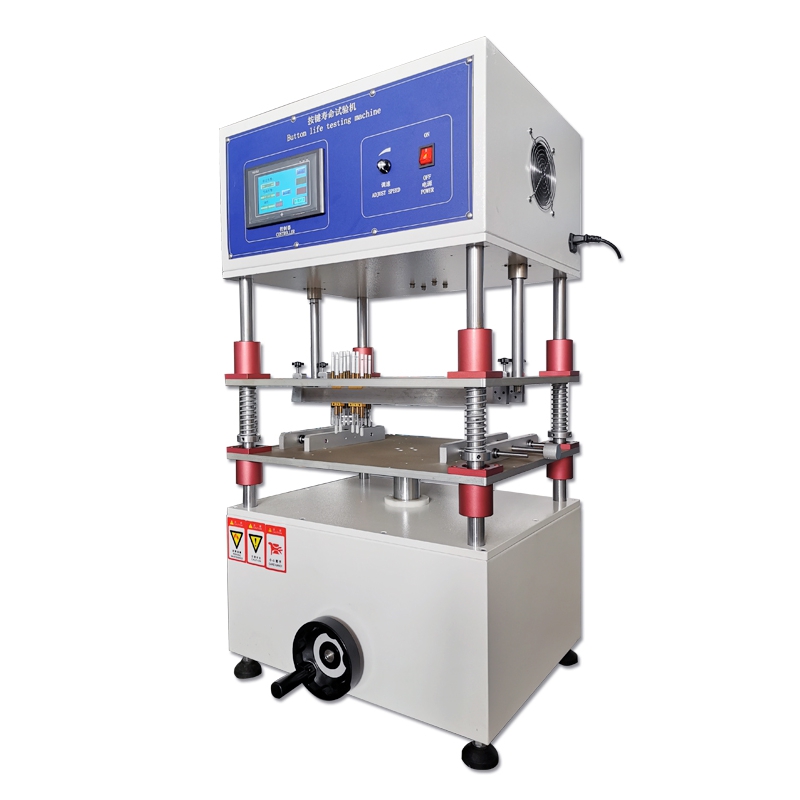

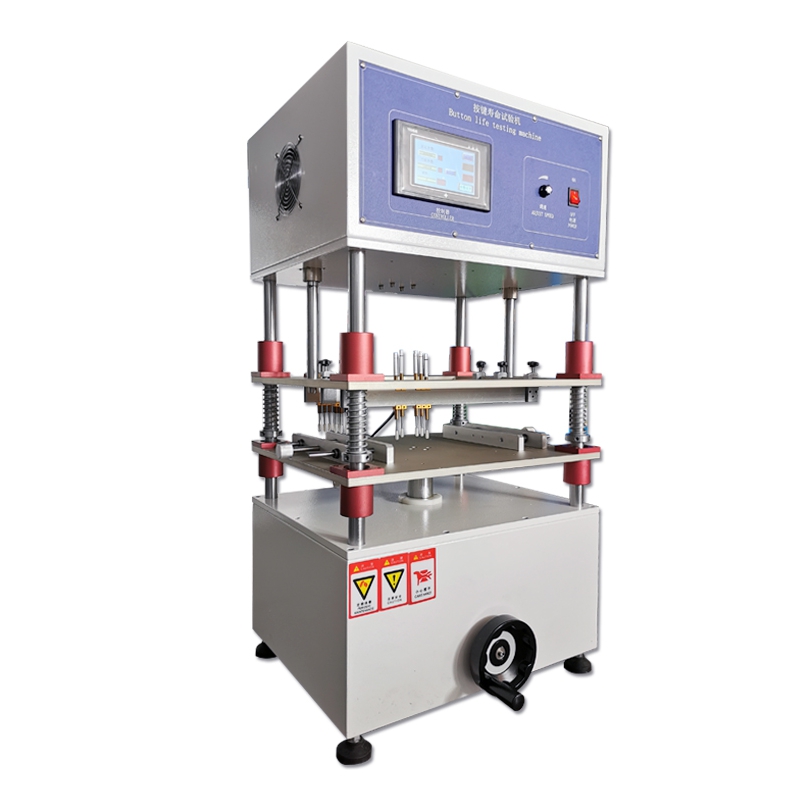

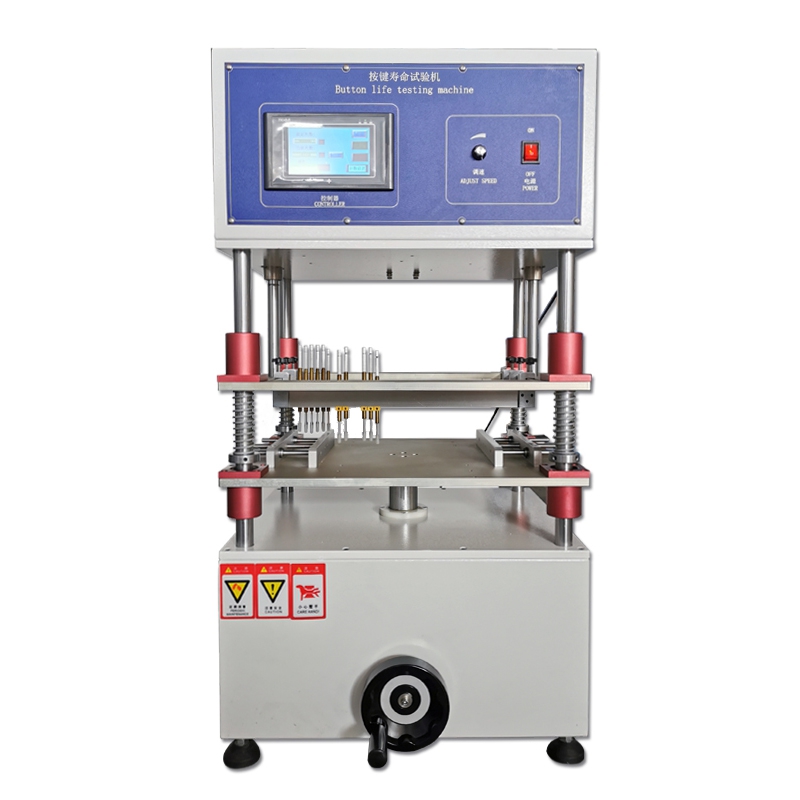

The Key and Button Life Testing Machine can test the durability of the buttons and other buttons and switches of notebook computers, mobile phones, PDAs, etc.
Features:
Key and Button Life Testing Machine can test several products at the same time (each product can be multi-point test), and each button can set different pressure and different levels of pressure. This machine adopts Japan Panasonic servo motor, Japan Mitsubishi PLC, Taiwan high-definition touch screen, Japan NHK high-precision bearings, the whole machine transmission processing parts CNC machining error is small, low noise, low failure rate, the use of touch screen setting, has the advantages of convenient operation, convenient observation.
Test standards:
GB/T4967-95 silicone rubber and key life test is equivalent to JIS IEC related standards.
Technology parameter:
|
Action stroke |
10mm (fixed) |
|
Adjustment range of working schedule height |
100mm |
|
Clamping capacity of the fixture |
400×300mm |
|
The mounting range of probe |
350×250mm |
|
Test times |
9999999 |
|
Test speed |
60-300rpm |
|
The load range |
50-450g |
|
Probe height adjustment |
15mm |
|
Number of Probes |
15 (Expansible to 120) |
|
Minimum spacing between two probes |
X direction 10mm,Y direction 20mm |
|
Appearance size |
520×420×980mm |
|
Weight |
110 kg |
|
Power supply |
220V |
