Equipment application:

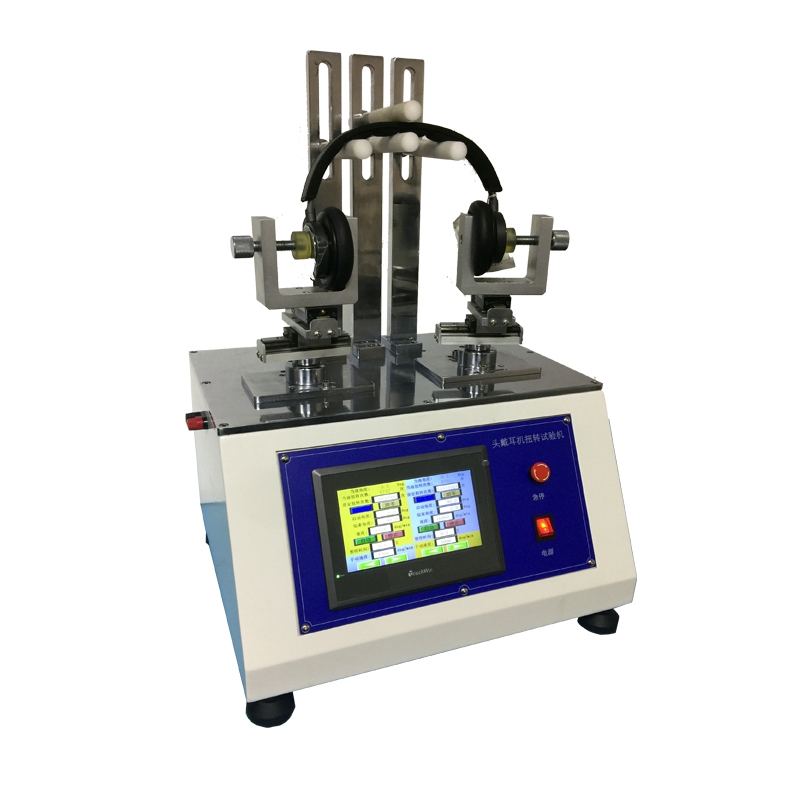

The machine is suitable for wearing headphones torsion test. Test method:Make one of the headset earpiece side on the fixture, headband is fixed on the supporting frame, set up the test point of view, rotate speed, after N times test, remove the headset detection the axis of rotation performance.
Equipment specification:
|
The control mode |
PLC+ Touch screen |
|
Transmission structure |
rotating way |
|
Minimum display angle |
0.1 degree |
|
The receiver center spacing range |
150~220mm adjustable |
|
The test speed range |
5~40 times/min (can be set) |
|
The test schedule |
Plus or minus 90 degrees (can be set) |
|
Test number set |
1~99999999 (can be set) |
|
The machine size |
480(W)*590(D)*530(H)mm |
|
The machine weight |
40Kg |
|
Power |
AC 220V/50Hz/5A |
Equipment Features:
1.With stepping motor servo system as the source of power, performance stable, reliable and durable, positioning precision.
2.Collocation is specialized X/Y automatic evaluation of the heart, reduce the product fixed on the concentricity error, will be get more completely accurate about the axis of rotation performance
3.The receiver center distance is adjustable, to suitable for various product testing.
4.Using TFT4.3 inch true color LCD touch screen and mitsubishi programmable controller, and touch screen set rotation Angle, rotation rate, test times, test interval pause time.
5.This machine is used for Single receiver two station independent control test or double receiver single station test.
