Phone and Computer Test Equipment

Introduction:

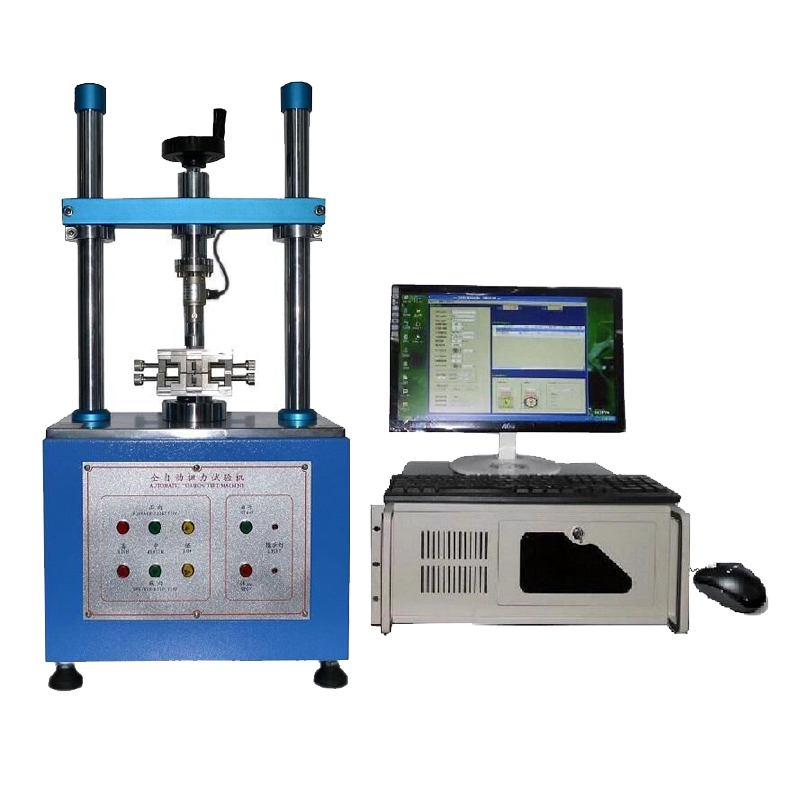

Computer automatic torque testing machine for a variety of products related to the torque test.

NB shaft, mobile phone (single shaft torque, finished torsion life test), LCD Monitor Foot, rotary switch torque test and torque life test. With Windows Chinese as window screen setting is simple.

Parameter:

Machine characteristics:

1. Machine adopts servo motor drive, providing high-precision torque test.

2. Test conditions are set by the computer screen, and can be stored.

3. can be directly tested at each angle of the torque value changes (torque - angle curve changes).

4. Simultaneous display of torque - angle curve and torque attenuation life curve.

5. can store and print graphics (torque - angle curve and torque attenuation life curve, test report).

6. The inspection report is automatically printed and can be exported or output directly through the network.

7. can enter the test upper and lower limits, beyond the specifications of the machine will automatically stop.

8. can set the torque value: positive torque, anti-torque, positive torque + anti-torque.

9. test travel direction: forward to the process, forward to the process + return. Reverse the process, reverse the course + return.

Forward to + reverse + forward.

Torque angle curve:

1. can be recorded directly at each angle of the torque value changes. (The X axis represents the angle, the Y axis represents the torque)

2. Each measurement pattern can be traced by the cross cursor trajectory, interpretation of the corresponding torque and angle values, the minimum accuracy of 0.1 degrees.

3. curve automatically stored by the computer, you can zoom at any time, a paper can be arbitrarily designated to place N graphs.

4. scroll curve shows, you can browse the curve.

Life curve:

1. Report header content can be set freely.

2. The maximum, minimum, and average values of each curve can be displayed on the report.

3. The specifications of the test upper and lower limits can be displayed on the report.

4. can be set at the same time show multiple sets of life curve.

The experimental conditions are simple to set up:

1. Chinese window screen setting operation is simple.

2. Test conditions are set by the computer screen, and can be stored.

3. Select from the drop-down menu or enter the data directly. (Including the determination of the type of power, determination of walking

Direction, load measurement range, angle measurement range, travel origin position, travel origin detection,

Measurement speed, number of measurements, pause time, each waiting position)

4. Determination of the project and specifications: the upper and lower limits of the specified value, the test results can be automatically determined OK or NG.
