Application:

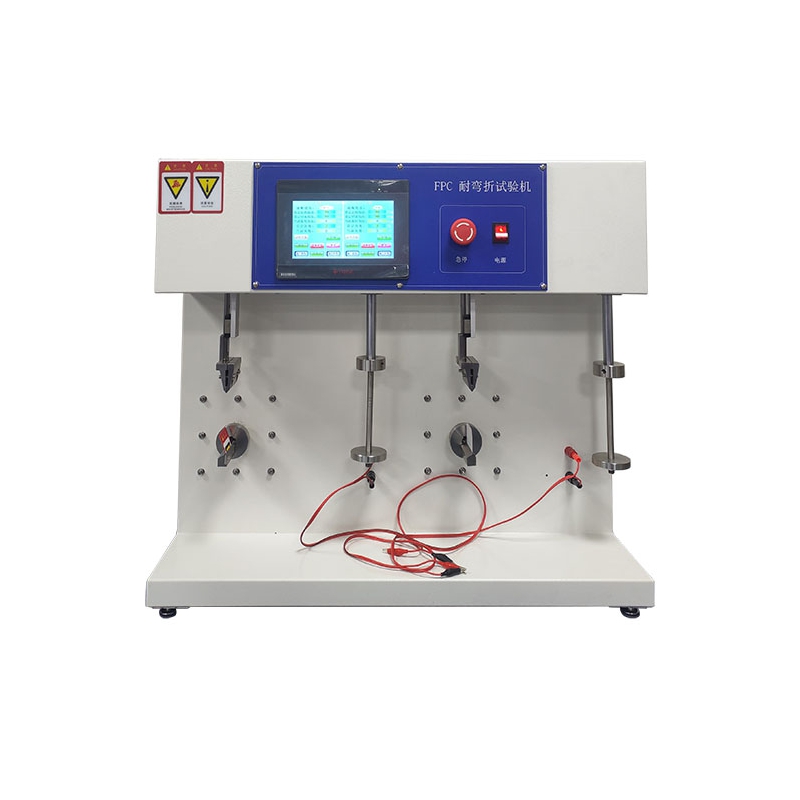

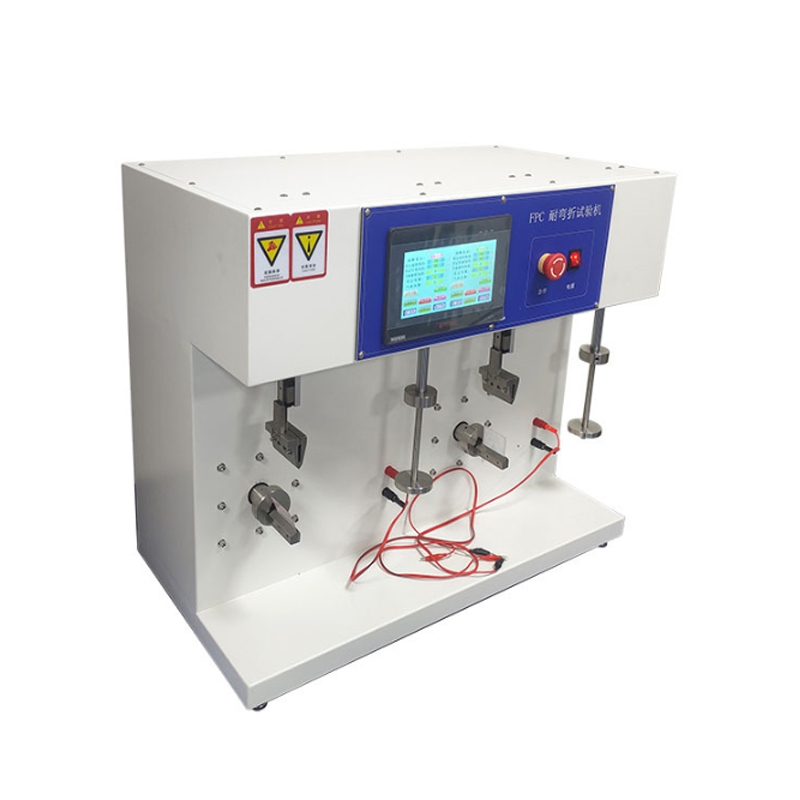

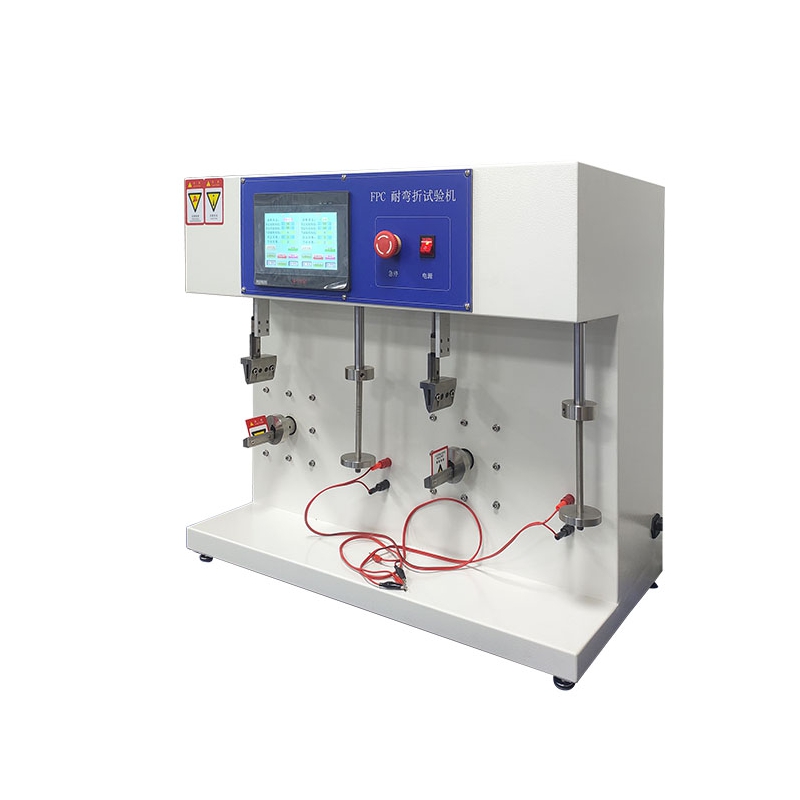

Flexible Circuit Board FPC Folding Tester is mainly used for bending test of circuit board (soft circuit board) and bending resistance test of copper clad laminate; For example, flexure resistance and flexure resistance life test of FPC soft boards of mobile phones, PDAs, electronic dictionaries, laptops and other electronic products.
Technical parameters:
|
Test station |
2 |
|
Test angle |
0 - 150 degrees (touch screen setting) |
|
Test speed |
0 - 120 times/minute (touch screen setting) |
|
Max. width and opening width of test fixture |
60mm |
|
Test fixture |
one set of lower movable fixture and upper movable fixture |
|
Test times counter |
1-999999 times (can be preset, and the number of times reached and the product breaking will stop automatically) |
|
Test function |
the touch screen sets the angle, times, speed, etc., has a unique continuity function, disconnects the automatic stop counting function, and automatically finds the origin, etc |
|
Weight of weights |
1N, 2N, 3N, 5N (1 for each) |
|
Working power supply |
AC220V, 50HZ |
|
Machine size |
450*308*700mm(L*W*H) |
|
Machine weight |
45KG |
Feature descriptions:
1. This machine is driven by servo motor, with high precision and accurate positioning, low noise, and can be used for a long time;
2. Program controlled zero point reset, no need to manually align the fixture to the original position;
3. This machine uses touch screen display controller for program input;
4. The test angle, speed, test times, and motor return to the original point can be set and counted automatically, and the operation can be stopped automatically when the product is bent to the point where the power can not be connected.
