Application:

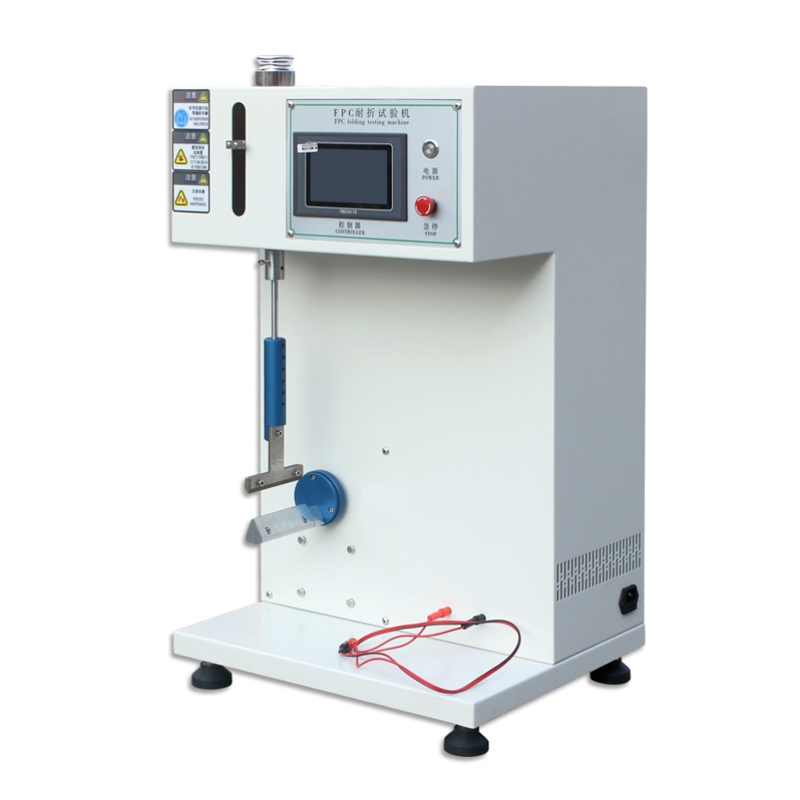

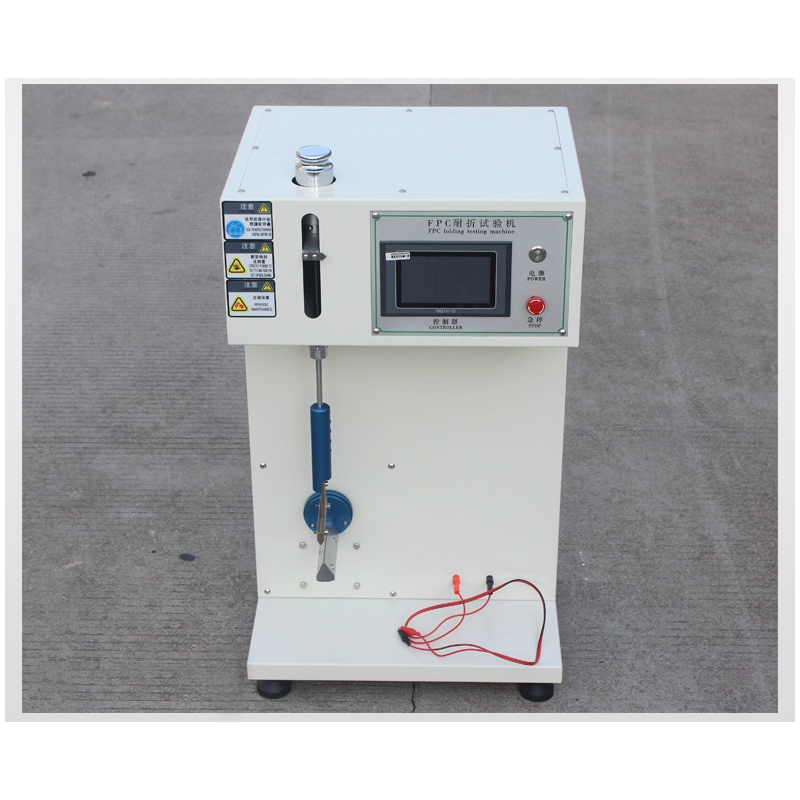

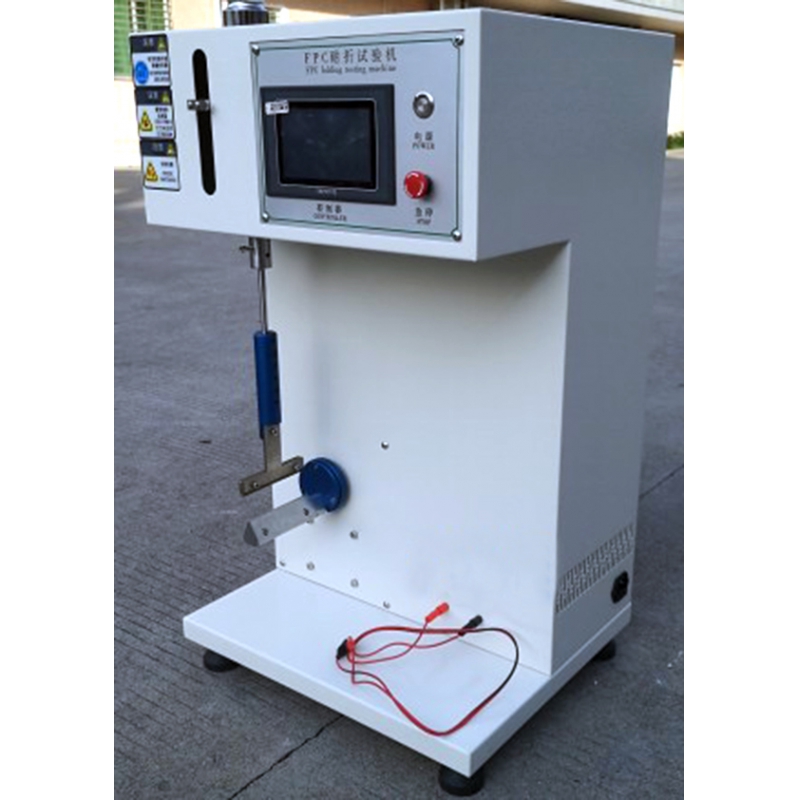

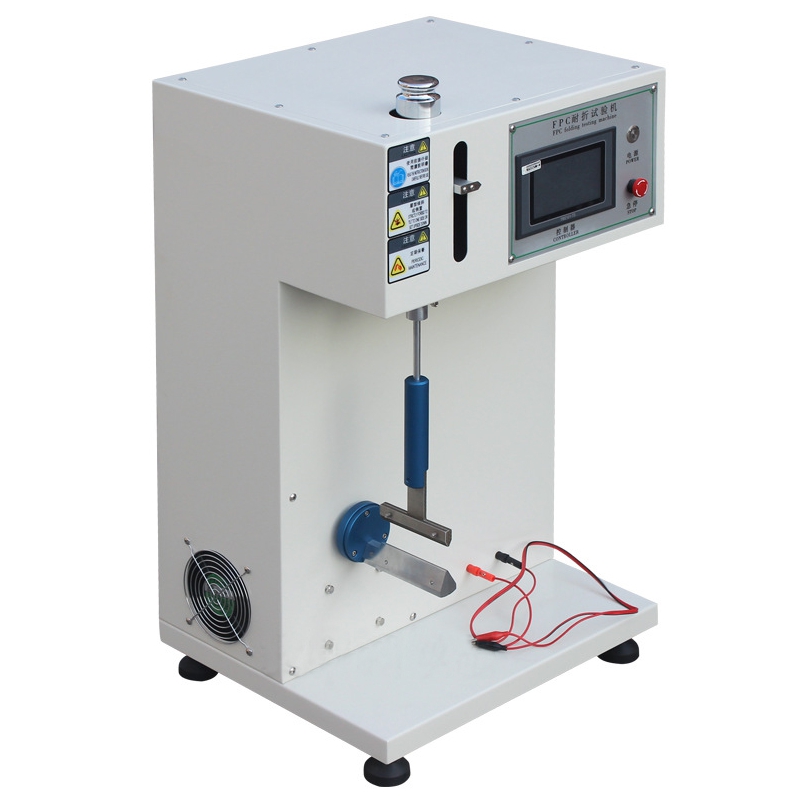

This machine is mainly used for bending testing of flexible circuit boards; Flexure resistance and flexure resistance life test of FPC soft boards of electronic products such as mobile phones, PDAs, Electronic dictionary, laptops, etc.
Technical parameters:
|
Test station |
1 |
|
Test angle |
10-170 degrees (touch screen digital setting, this is a unidirectional angle requirement, up to 340 degrees in both directions) |
|
Test speed |
10-120 times/minute (touch screen digital setting; stepper motor 60 times limit speed: servo motor maximum 120 times limit speed) |
|
Test stroke |
15-100mm (manually adjustable) |
|
Test fixture width and opening width |
80mm (specific to each customer‘s product requirements) |
|
Bending radius options |
0.4mm, 0.8mm, 1.2mm, 2.0mm, other specifications can be customized (two standard options) |
|
Test fixture |
One set of lower and upper movable fixtures (customized design fixtures can be made according to different product types) |
|
Test count counter |
0~999999 times (touch screen digits can be preset, and the number of times reached and the product breaks will automatically stop) |
|
Test function |
touch screen setting angle, frequency, speed, etc., with unique conduction function, automatic stop counting function when disconnected, automatic search for origin, and other functions |
|
Machine size (LxWxH) |
450x380x700mm |
|
Machine weight |
40kg |
|
Working power supply |
AC220V, 50HZ |
Machine features:
1. This machine is driven by a stepper motor, with high precision and accurate positioning, low noise, and can be used for a long time;
2. Program controlled zero point reset eliminates the need to manually align the fixture to its original position;
3. This machine uses a touch screen display controller as program input;
4. The test angle, speed, number of tests, and motor return to the origin can be set, automatically counted, and automatically stopped when the product bends to a broken wire and cannot be powered on.
