Introduction:

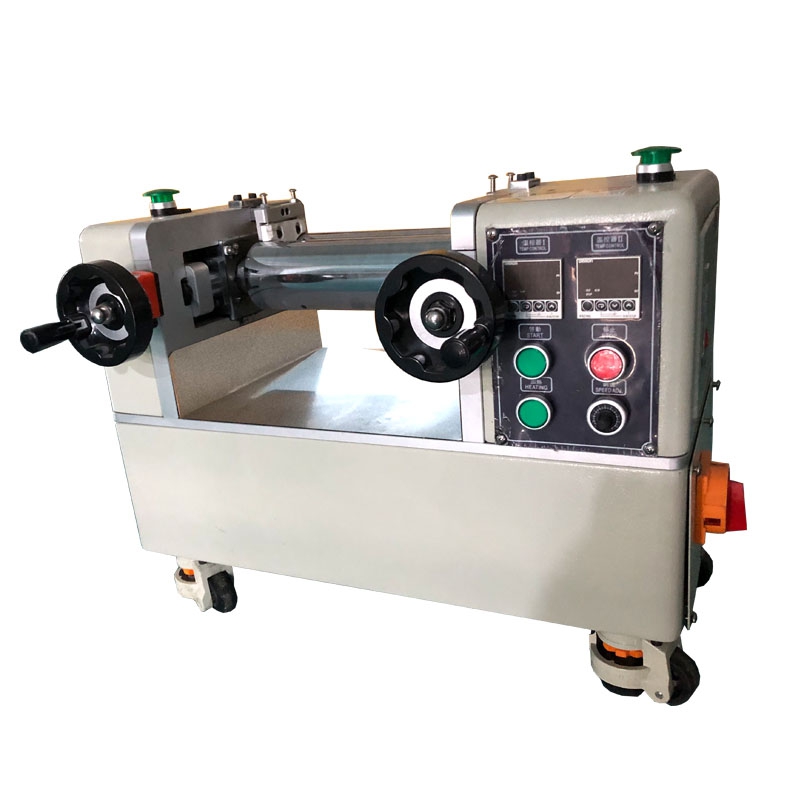

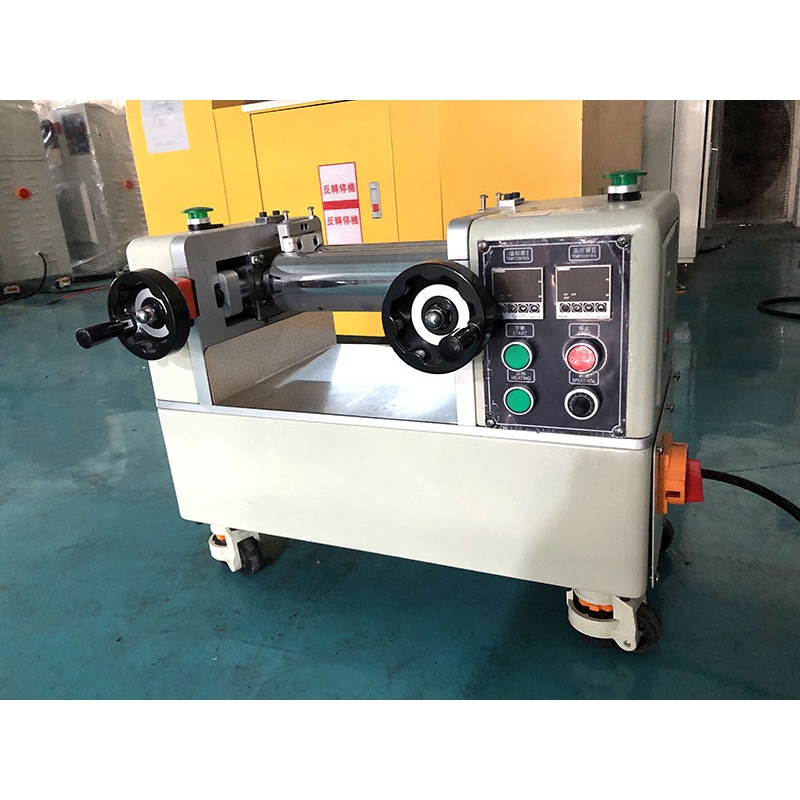

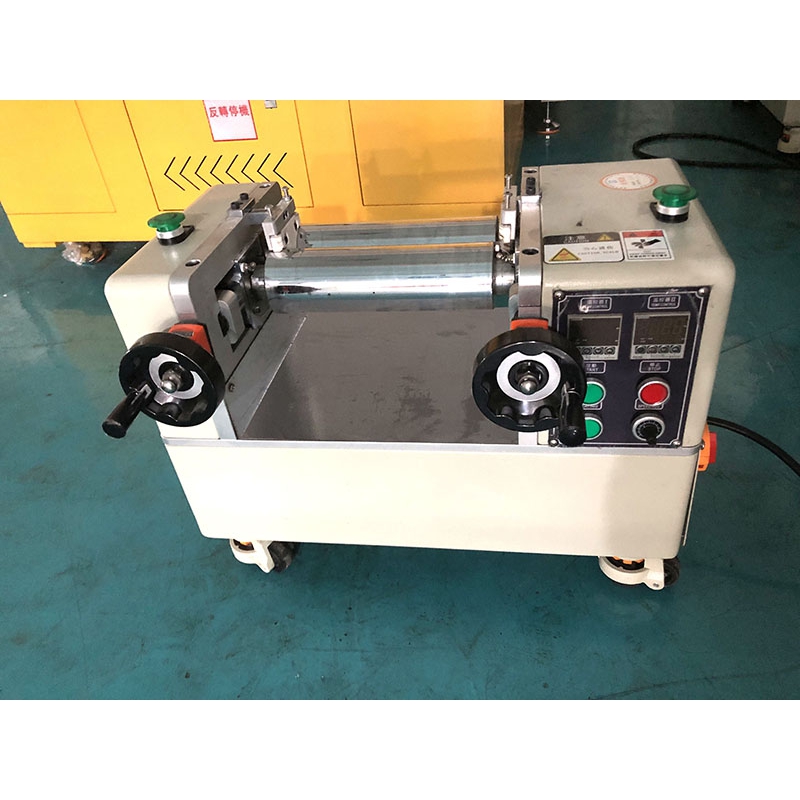

Suitable for plasticizing and dispersing color masterbatch, PVC, plastic, and pigments. The machine adopts a special electric heating mold, double roller mirror chrome plating, and uniform temperature.
Technical parameters:
|
Temperature range |
normal temperature~300 ℃ |
|
Controller |
LED digital display, key setting input, digital display output |
|
Heating time |
Approximately 30 minutes from room temperature to 200 ℃ |
|
Temperature accuracy |
± 3 ℃ |
|
Roller size |
Ø 76 × L260mm |
|
Roller spacing |
adjustable from 0.05 to 3mm |
|
Roller speed |
0~20r/min, single frequency converter speed regulation |
|
Roller surface |
roller surface hardness HRC60 degrees, mirror chrome plating |
|
Rotation ratio |
1:1.27 |
|
Power |
1.2KW (motor power 0.4KW) |
|
Security protection |
Pull rod emergency stop, knee top reversal and other security devices |
|
Volume |
650*400*500 (W*D*H) mm |
|
Power supply |
220V, 20A two-phase three wire |
|
Weight |
Approximately 45kg |
Instrument features:
1. The size of this machine is relatively small, occupying an area of about 0.5 square meters. It can be placed on both the ground and a table, and uses a two-phase three wire connection method, making installation simple and convenient
2. Easy to operate: using LED digital display, key setting input, digital display output
3. The surface of the drum is subjected to rough machining, drilling, pre grinding, heat treatment, precision grinding, electroplating, grinding, and polishing processes. The hardness of the roller surface is HRC60 degrees, with mirror chrome plating, high temperature resistance, fast thermal conductivity, and corrosion resistance
4. Improve emergency stop settings and install safety emergency stop devices on both sides of the control panel to ensure the maximum safety of personnel and equipment use;
5. Precise distance adjustment: using a precision screw to adjust the distance between the rollers and a direct reading dial.
