Rubber and Plastic Test Machine

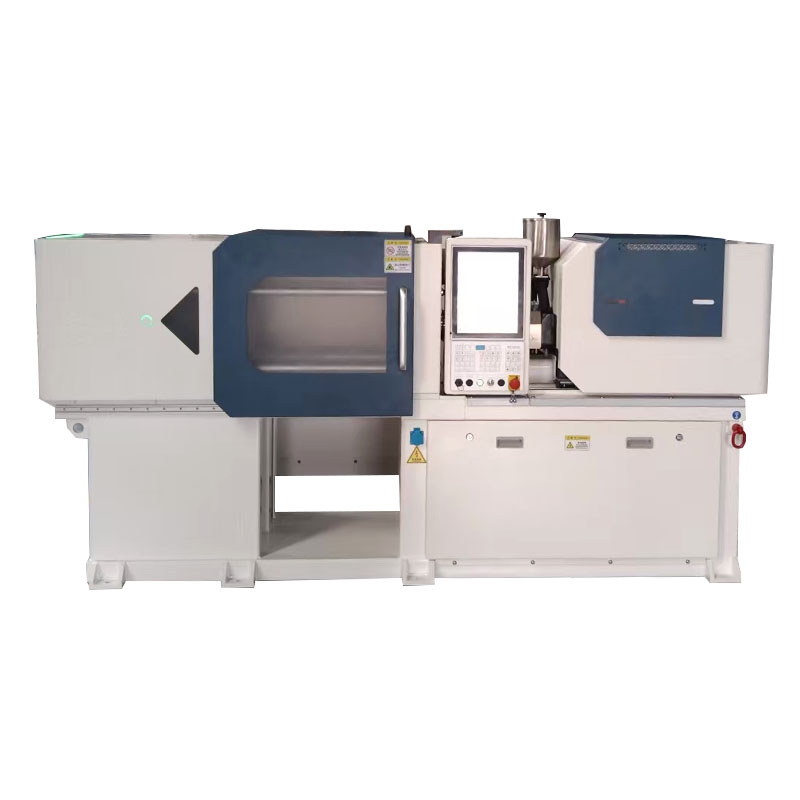

ZT-1083 20T 30T ABS Fully Electrical Injection Molding Machine

    20T 30T ABS Fully Electrical Injection Molding Machine

    The fully electric injection molding machine represents a revolutionary advancement in polymer processing technology, with higher energy efficiency and precision compared to traditional hydraulic systems. This innovative device is entirely driven by servo motors, eliminating the use of hydraulic oil while providing excellent repeatability for high-precision manufacturing applications.



    Main features:
    1. Energy saving operation
    40-70% energy savings are achieved through servo motor drive mechanisms, with power consumption proportional to production output.
    2. Enhance precision control
    Adopting a closed-loop digital control system to ensure a positioning accuracy of ± 0.01mm for microforming applications and an injection weight variation of less than 0.1%.
    3. Clean production environment
    Oil free operation eliminates the risk of hydraulic oil contamination and meets the strict requirements of optical component manufacturing.
    4. Compatibility of intelligent manufacturing
    The integrated IoT interface can monitor key parameters of Industry 4.0 integration in real time, such as clamping force, injection speed, and temperature.



    Technical advantages:

    Screw diameter 20mm
    Theoretical injection volume 19cm3
    Injection weight(PS)
    17g
    Screw L/D ratio 20 L/D
    Injection pressure
    2400 kgf/cm2
    245 MPa
    Holding pressure 1920 kgf/cm2
    196 MPa
    Injection speed 300 mm/sec
    Injection stroke 60MM
    Nozzle contact force 20 KN
    Screw speed 0-380 rpm
    Clamping force 200 KN
    Dist.between tie bars(H×V) 260*260 mm
    The range of the mold height 130-260 mm
    Mold opening stroke 180 mm
    Max.daylight 440 mm
    Ejector force 13 KN
    Ejector stroke 35 mm
    Heating power 3.7 kW
    Total power 15 kW
    Machine dimension 2.4*0.8*1.2 m
    Machine weight 1.28 t



    Application:
    Very suitable for the precision drive industry, including syringes, implants, electronic connectors and micro components, automotive sensors and LED optics, ISO 5 cleanliness food grade packaging, etc

    Environmental compliance:

    Compliant with global sustainable development standards: 65 dB (A) low-noise operation, 0% oil emissions, - RoHS compliant structure
    With the development of manufacturing towards more environmentally friendly practices and stricter tolerances, fully electric injection molding machines provide a future oriented solution that combines environmental responsibility with excellent technology. Its advanced motion control capabilities and energy-saving design make it particularly suitable for high-value precision molding operations in regulated industries.



    Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
