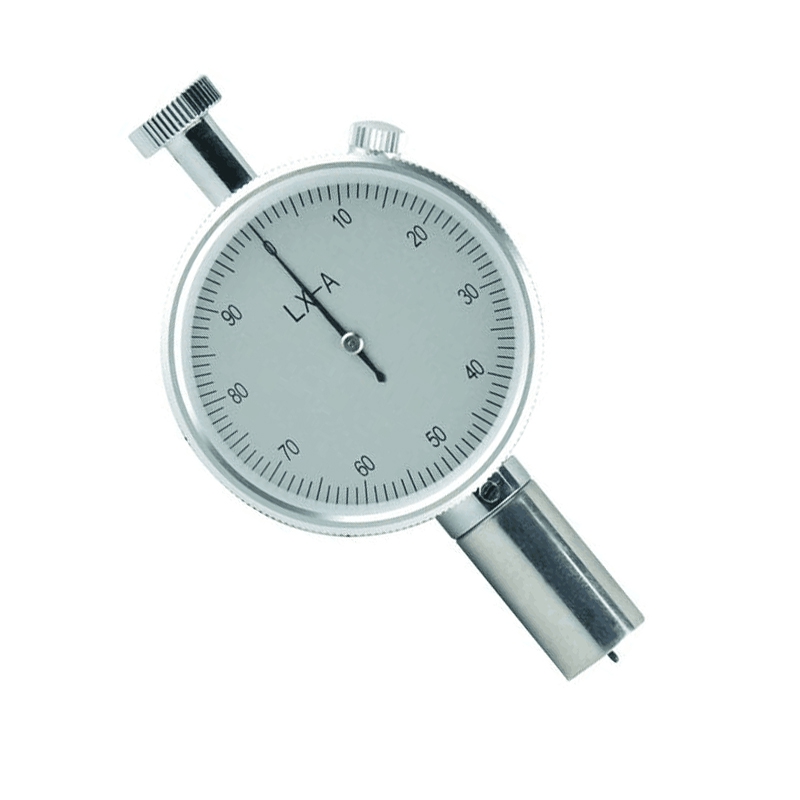

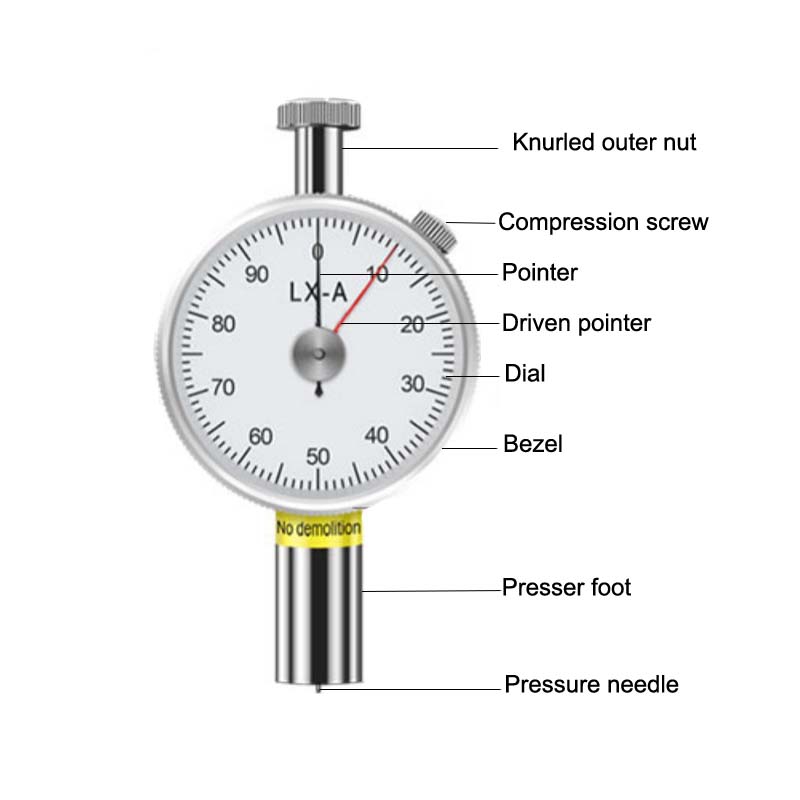

Shore A Hardness Tester
Introduction:
Shore hardness is a measure of vulcanized rubber, rubber and plastic hardness instrument, which has A-type, D type, C type three kinds of patterns. A-type and D type were applied to the low hardness and high hardness in the hardness of rubber materials. C-applied compression rate of 50%, the stress 0.049Mpa above, the use of rubber and the use made of plastic foam in the shoe with micro hardness testing. The hardness Executive GB/T531, GB2411, HG/T2489JB6148 requirements.
Technical parameter:
|
Dial Value |
A type 0-100HA、D type 0-100HD、C type 0-100HW |
|
Pressure needle stroke |
0-2.5mm |
|
Pressure needle tip pressure |
A type、C type Z0.55N-8.06N D type 0-44.5N |
|
Accuracy |
±1HA |
