Rubber and Plastic Test Machine

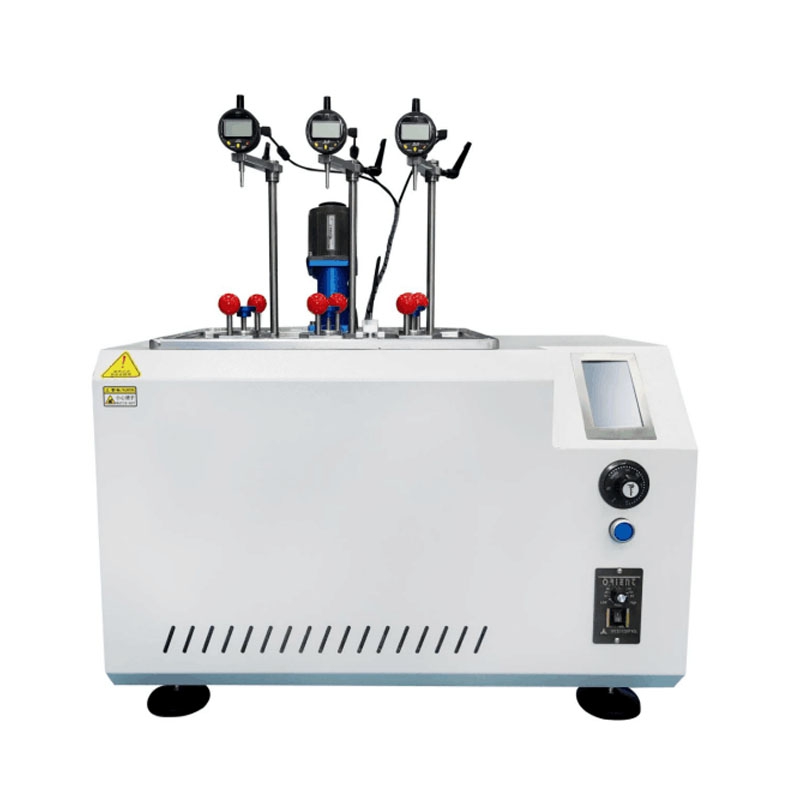

Vicat Softening Point Temperature Test Machine Vicat Apparatus

Introduction:

This Vicat Softening Point Temperature Test Machine uses PLC programmable controller for temperature adjustment and computer display operation. It is mainly used to test the heat distortion temperature and Vicat softening point temperature of non-metallic materials such as plastics, rubber, nylon, electrical insulating materials, etc.



Test Standards:

ISO75-2013 Determination of plastic load deformation temperature

ASTM D 648 Plastic thermal deformation temperature test method

ASTM D 1525 Plastic Vicat (VICAT) softening temperature test method

GB/T 1633 Thermoplastics - Determination of Vicat softening temperature (VST)

GB/T 1634 Determination of plastic load deformation temperature Part I: General test method

GB/T 8802 Determination of softening temperature of plastic pipe fittings



Specifications:

Temperature control range	Ambient temperature -300℃
Heating rate	(120±10)℃/h;(12±1)℃/6min; (50±5)℃/h; (5a±0.5)℃/6min
Temperature indication error	0.1℃
Temperature control accuracy	±0.5℃
Max. deformation indication error	±0.001mm
Deformation measurement range	0-10mm
Number of sample racks	3,4,6
Load rod and pallet quality	68g
Heating medium	Methyl silicone oil or transformer oil
Cooling method	Natural cooling above 150, water cooling or natural cooling below 150
Heating power	4KW
Control mode	Touch screen control
Power	220V 50Hz
