Rubber and Plastic Test Machine

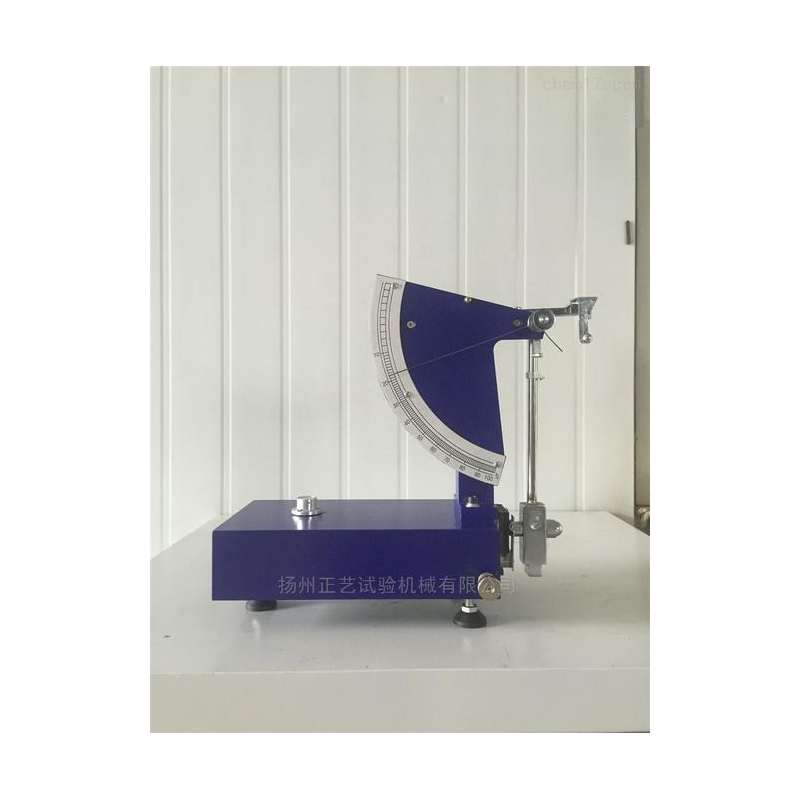

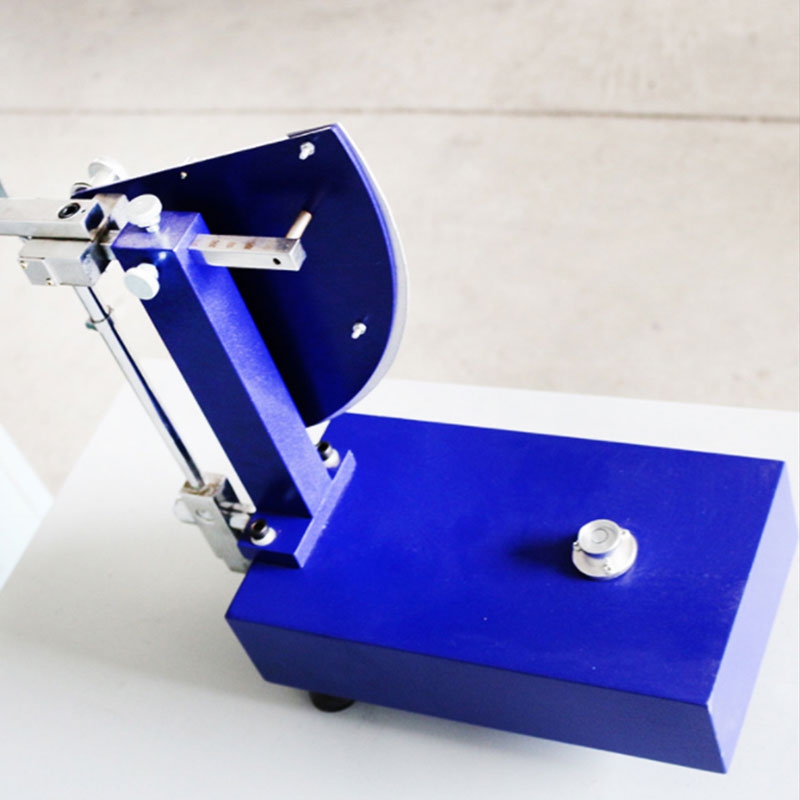

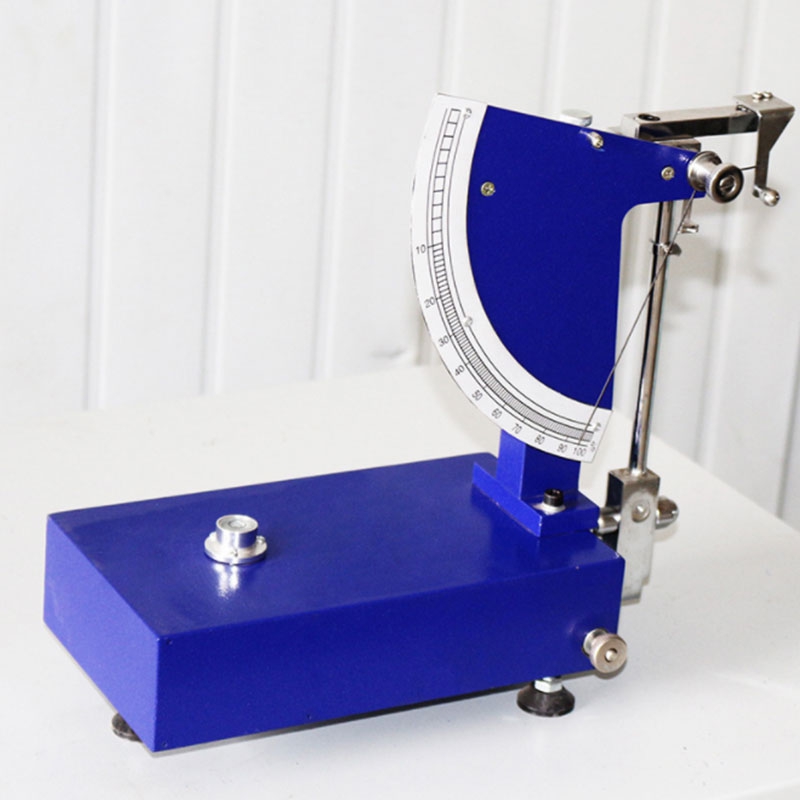

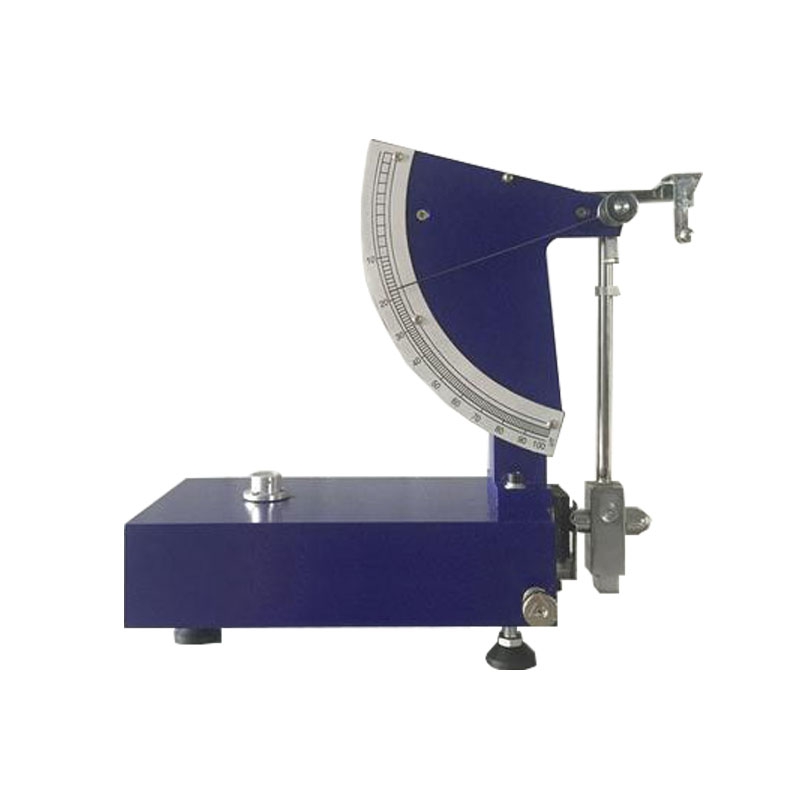

Rubber Rebound Resilience Elasticity Tester

Equipment Overview:
The machine is energy 0.5J pendulum-type impact testing machine flexibility for nominal hardness 30-85IRHD rebound between the value of vulcanized rubber.



Main feature:

1. After the test, this function displays the test results and automatic storage or direct printing;
2. After the test, this function displays the data of angle energy

3. With safety protection devices and electric shock button, to ensure that test security.

To meet the standards:

In line with GB / T 1681 "Determination of vulcanized rubber elasticity" and the requirements of ISO4662 standards.



Applicable industry: Rubber



Technical parameter:

Instruction Range	0~100%
Marking scale	1%
Adjustable range of specimen thickness	0~60mm
Scale mark	1mm
Measuring elastic feeding device test	Flexible test material measuring device (in line with DIN53512 and ISO4662 specifications)
Dimension	62*12*33cm
Weight	38kg
