Product introduction:

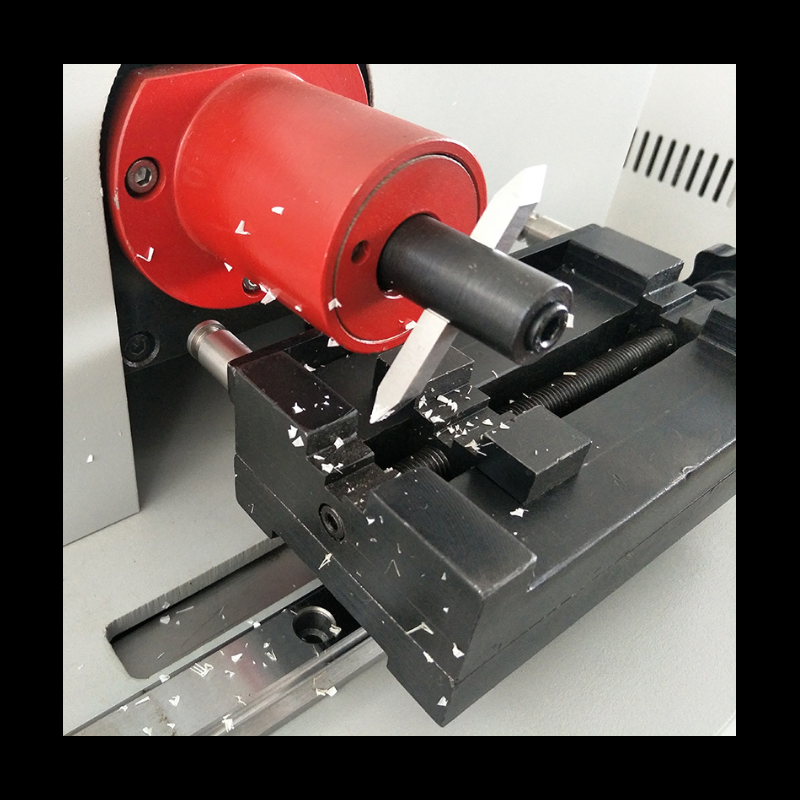

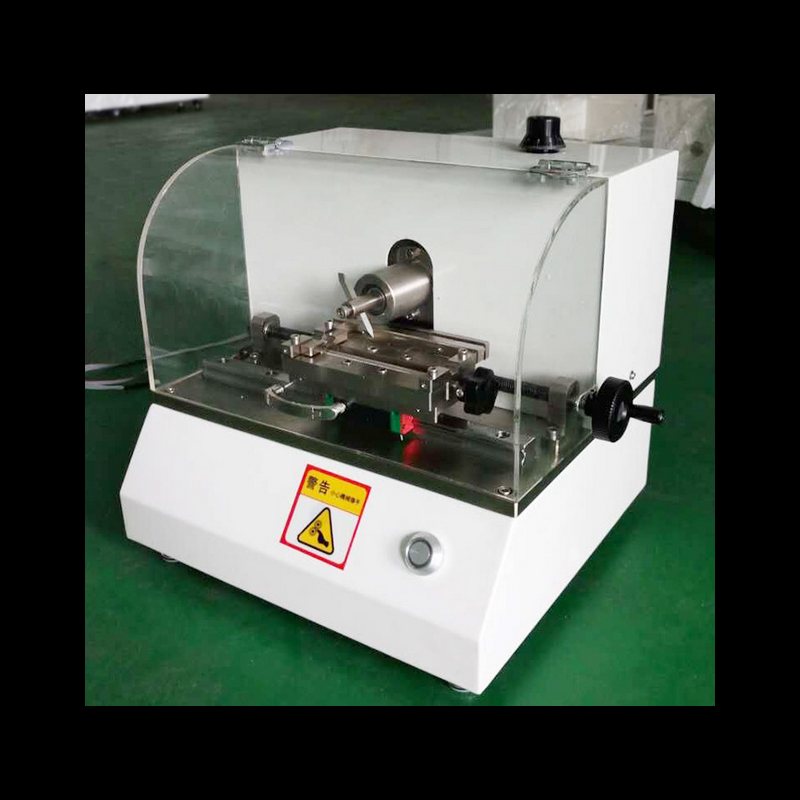

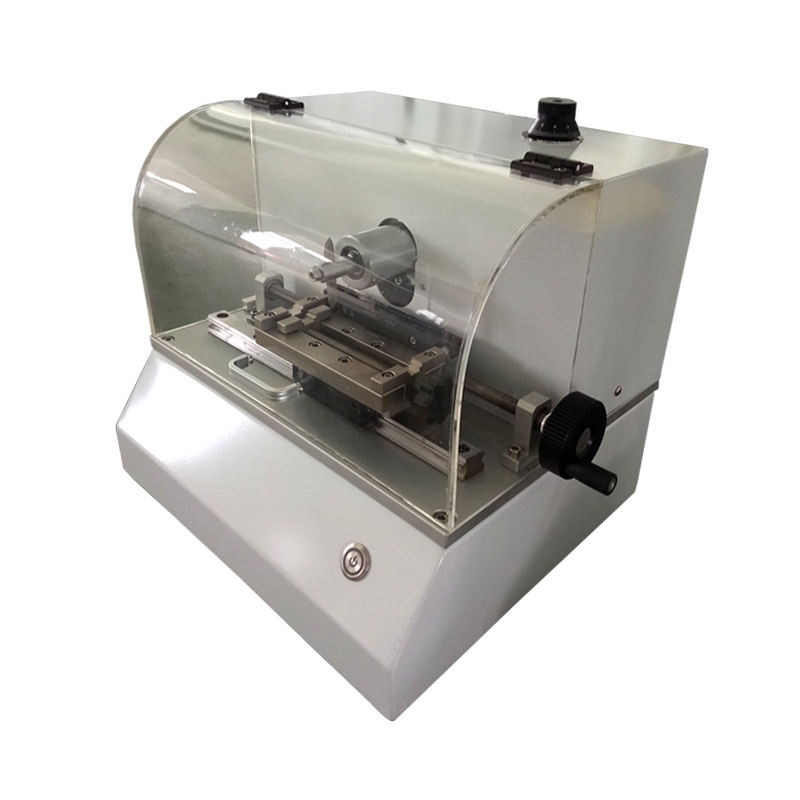

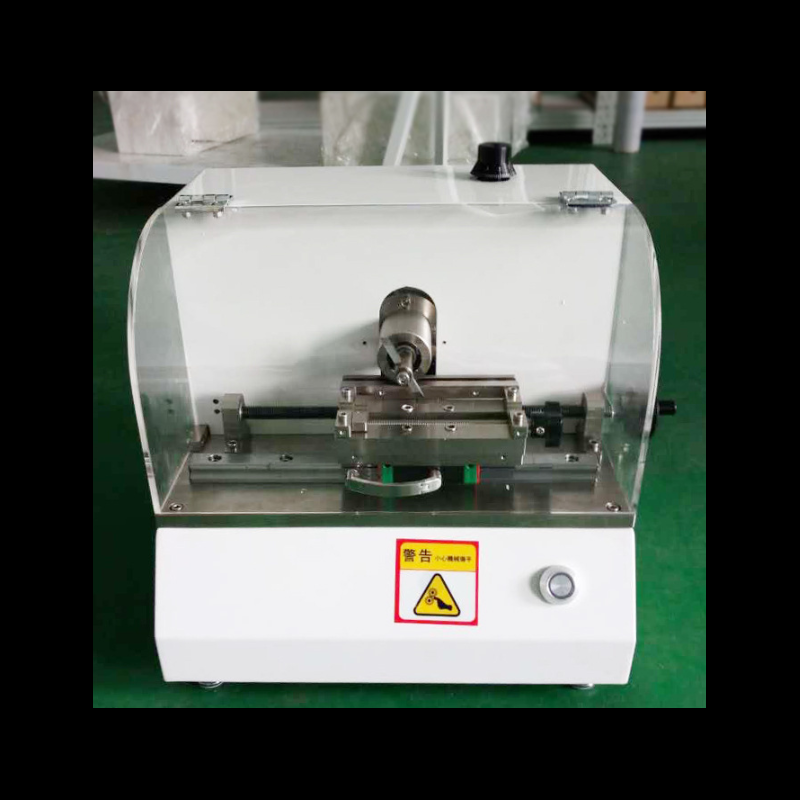

ISO180 Plastic Izod Charpy Impact Test Sample Making Machine is the sampling machine producing notch sample used by charpy and izod impact tester to do the test of impact toughness of non- metallic materials. It can clamp 20 samples per time; make more than 60 notches per 10 minutes.
ISO180 Plastic Izod Charpy Impact Test Sample Making Machine is accurate, and has much effective, greatly reduced the difficulties of operation.
Meet standard:
ISO 179-2000 impact strength test of plastic simply supported beams
ISO 180-2000 Izod impact strength test for plastics
ASTM D256-2010 test method for Izod Pendulum impact strength of plastics
Main technical parameters:
|
Table stroke |
>160MM |
|
|
Blade feeding speed |
0~30mm/min |
|
|
Sample type |
1 type, 2 type, 3 type |
|
|
Notch type |
A type, B type(Optional), C type(Optional) |
|
|
Feeding amount |
according to the standard |
|
|
Supply voltage |
220V |
|
|
External dimension |
450mm×360mm×390mm |
|
|
Weight |
30kg |
|
|
Tool parameters |
A type tool |
45°±1° R=0.25±0.025 |
|
B type tool |
45°±1° R=1.0±0.025 |
|
|
C1 type tool |
45°±1° R=0.1±0.02 |
|
|
C2 type tool |
thickness1=2±0.1 R<=0.1 |
|
|
C3 type tool |
thickness2=0.8±0.1 R=0.2±0.05 |
|
