Equipment description:

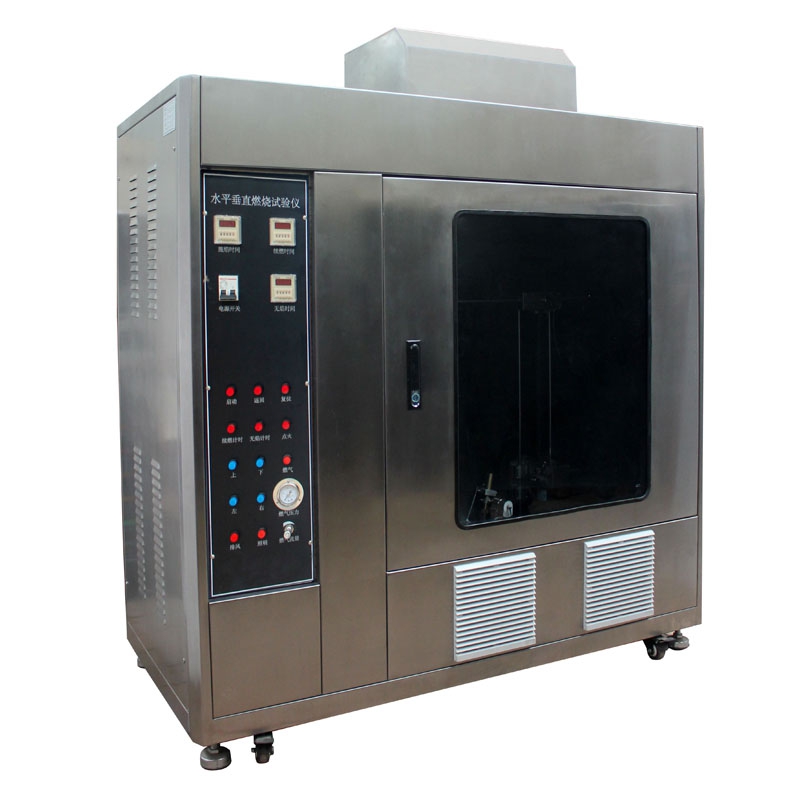

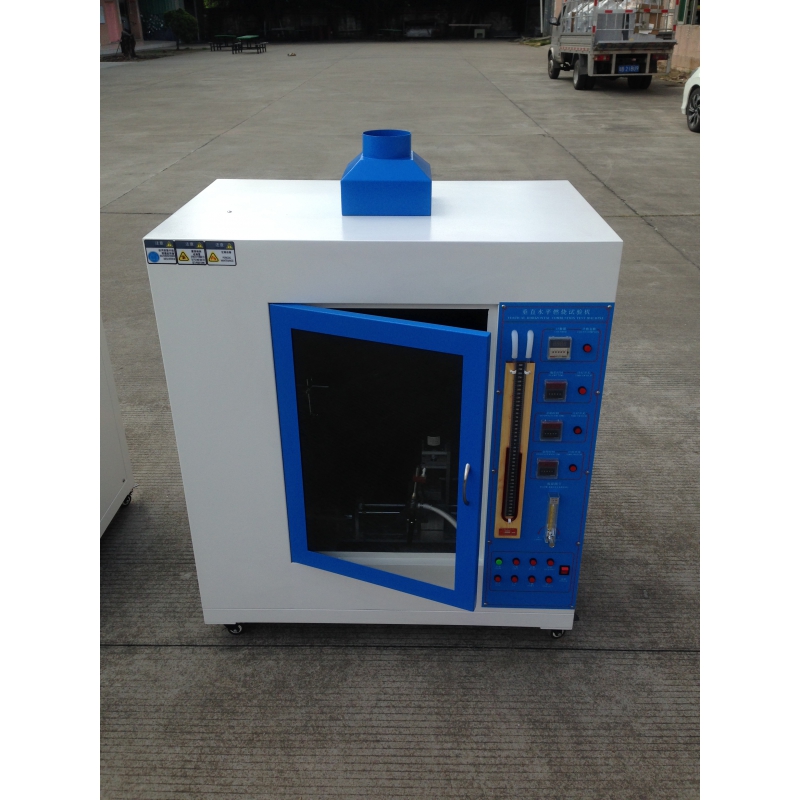

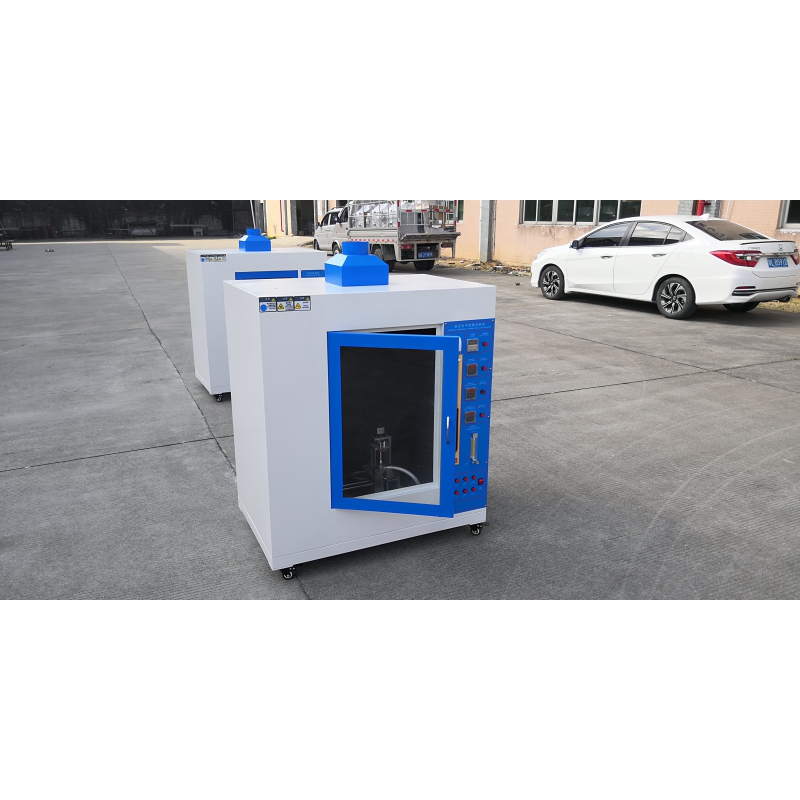

This Horizontal and vertical flammability tester is applicable to solid materials and the apparent density measured according to GB6343 not less than 250kg/m2 of foam when placed in the horizontal and vertical with a small flame ignition source ignited combustion after the test. The machine has the use of safe, reliable, easy to operate, and so on.
Meet the standard:
This Horizontal and vertical flammability tester according to national standards GB/T2408-1996 "Test method for flammability of plastic - horizontal and vertical Law," flame-retardant material designed to test equipment.
Meet UL 94 and EN 60695-2-11, IEC 60950
Technical parameter:
| Testing room area |
0.5m3 |
|
Timing accuracy |
1s |
|
Simple size requirements |
Length:125±5mm,Thickness:3.0±0.2mm Width:3.0±0.2mm |
|
Specification |
Tube length100±10mm,Diameter:9.5±0.5 mm |
|
Titled |
20°45°, 90° |
|
Height of burner blue flame |
20 mm(Adjustable) |
|
Time account |
0~9999 times |
|
Timer |
0~99.99s |
|
Burner when necessary to manually lift in the vertical direction |
|
|
Main configuration as follows |
|
|
Host box(vertical burning ,burning one level) |
|
|
Burning in part by the Bunsen burner, solenoid valve, high pressure ignition, gas pipes, regulators etc. |
|
|
Inner control box by the fire-breathing, Minting timer, counter etc. burning |
|
