Parameter:
1. Automotive interior materials combustion test is mainly based on the national standard GB8410-2006 and American Standard FMVSS 571.302 and other standards of the simulated combustion safety test project.
2. Automotive interior materials combustion test is the use of a predetermined size Bunsen burner and a specific gas source (liquefied petroleum gas or gas), according to a certain flame height and a certain degree of flame angle on the level of the automotive interior materials Shi Yan number Time, to test the ignition, duration and burn length to assess their flammability and fire risk.

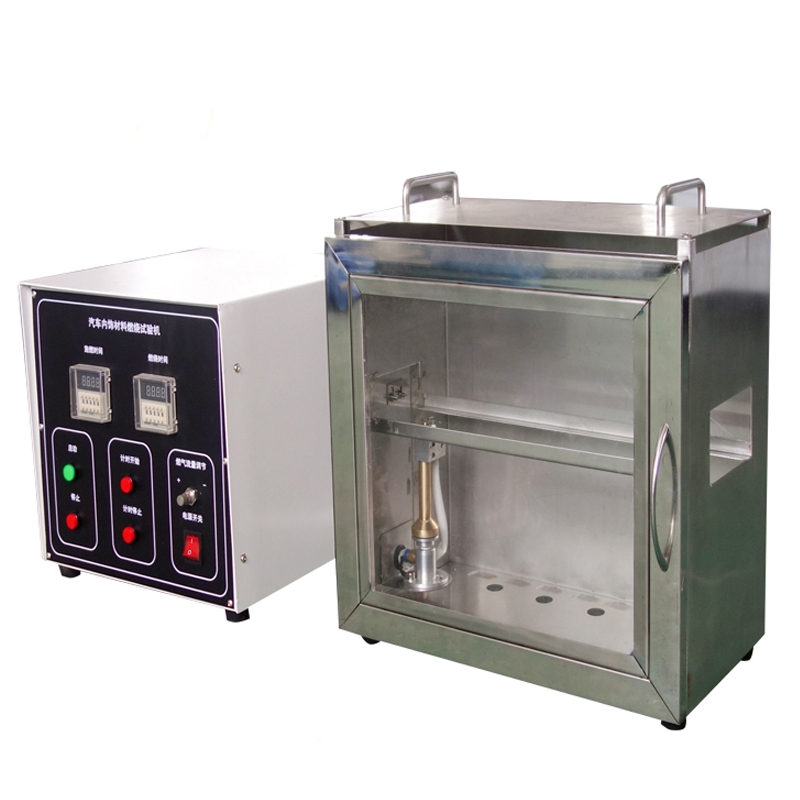

3. Automotive interior materials combustion tester mainly for the qualitative evaluation of the flammability of automotive interior materials. Applicable to all types of automotive interior materials manufacturers and their material components of the research, production and quality inspection departments, but also for insulating materials, engineering plastics or other solid combustible materials industry.
Technical Parameters:
1. Burner: Φ9.5mm ± 0.3mm about 100mm Bunsen burner
2. Test Inclination: The Bunsen burner burns vertically at a horizontal angle of 90 °
3. The flame height: 20mm ± 2mm to 100mm ± 2mm adjustable (generally transferred to 38mm)
4. Testing time: 0-999.9s ± 0.1s adjustable (the general choice for 15s)
5. Burning gas: liquefied petroleum gas or gas
6. The temperature range: 0 ~ 200 ℃ (show the test chamber temperature)
7. The test process: test program manual control
8. Reference standard: GB8410-2006, FMVSS 571.302
9. Studio size: 385mm wide × 204mm deep × 360mm high (about 0.03m3)
10.Equipment size: 550mm wide × 210mm deep × 550mm high
