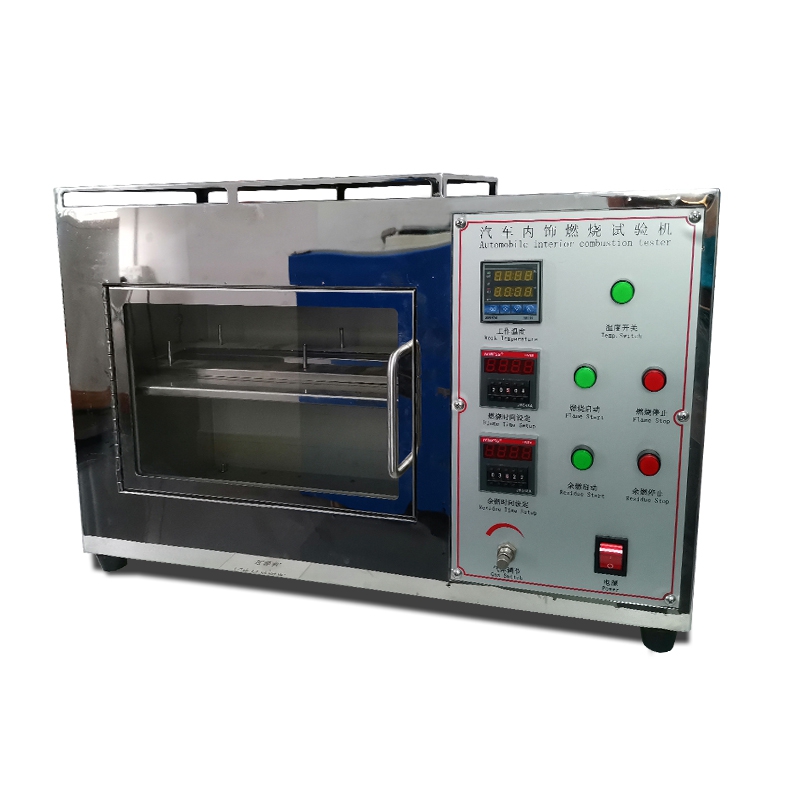

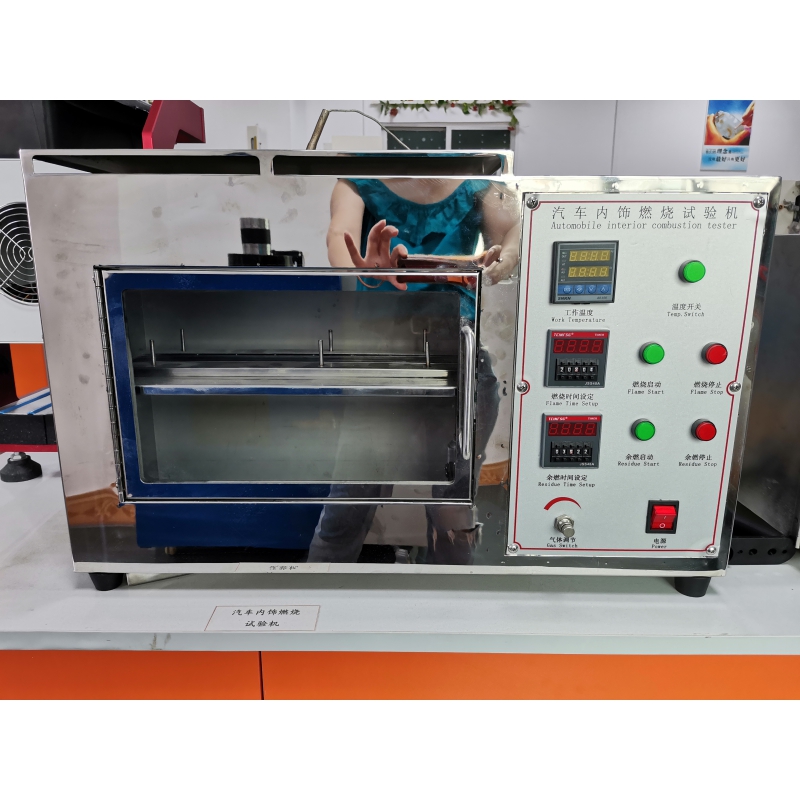

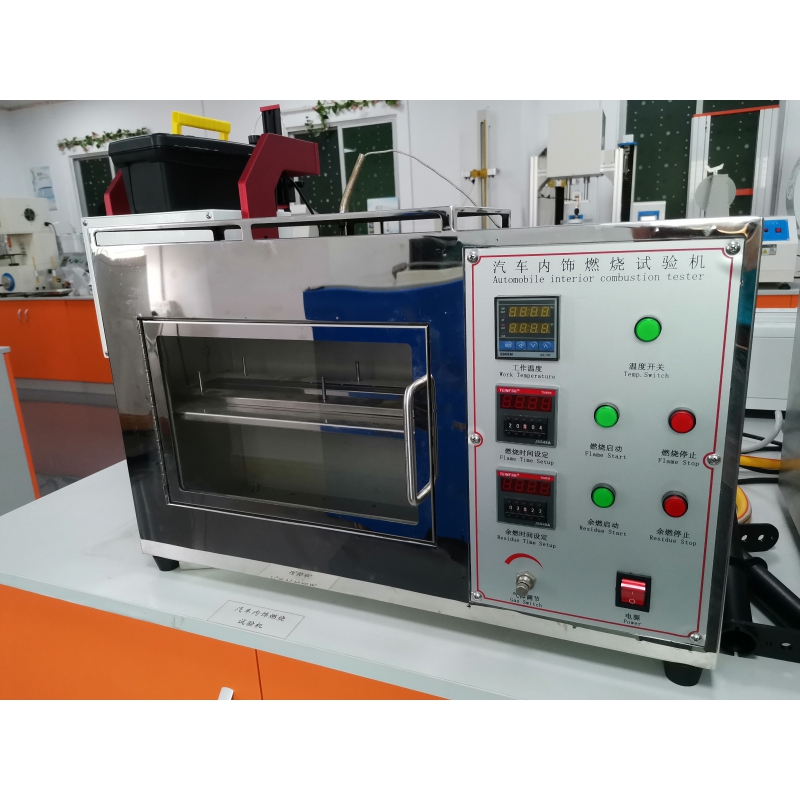

Automobile Interior Material Flammability Burning Tester
Technical performance:
Automobile Interior Material Flammability Burning Tester is mainly composed of a control box and a combustion box.
1. Combustion box: Material stainless steel.
2. Combustion system: Burner: The inner diameter of the torch is 9.5±0.5mm, equipped with a needle valve, which is convenient for adjusting the gas flow rate and the flame height. The flame height can be adjusted from 20mm to 100mm according to the standard requirements, and the flame height gauge (38mm) is equipped. The instrument is also equipped with an electronic igniter for automatic ignition.
3. Timing system: timers: 3 timers, namely, flame application timer, combustion timer, and afterflame timer.
Timer setting: 0~99.99/S/M/H can be set at will.
4. Test fixture: made of corrosion-resistant metal plate, equipped with a dust box.
5. Observation window: The front of the combustion box is an observation window made of heat-resistant tempered glass, which is convenient for observing the combustion changes during combustion.
Specifications:
| Combustion box |
1.Mirror stainless steel plate structure, steel plate thickness 1.2mm 2.Combustion chamber size: width × height × depth: 385×360×204mm 3.There are 10 ventilation holes with a diameter of 19mm at the bottom, and ventilation slots with a width of 13mm on the four walls near the top. 4.metal steel plates, the size of which is 361×100mm in length and width |
| Control box |
1. Burning time: 0~99.99/S/M/H arbitrarily set 2.Stop burning time: Burning time: 0~99.99/S/M/H arbitrarily set |
| Combustion lamp |
1.Inner diameter of nozzle: 9.5mm 2.Gas source: coal gas (provided by the customer) 3. Flame height: 38mm |
| Metal comb | length: 110mm, 7~8 smooth round teeth within 25mm |
| Steel ruler |
length 400mm, precision 1.0mm 385mm wide×204mm deep×360mm high |
