Product features:

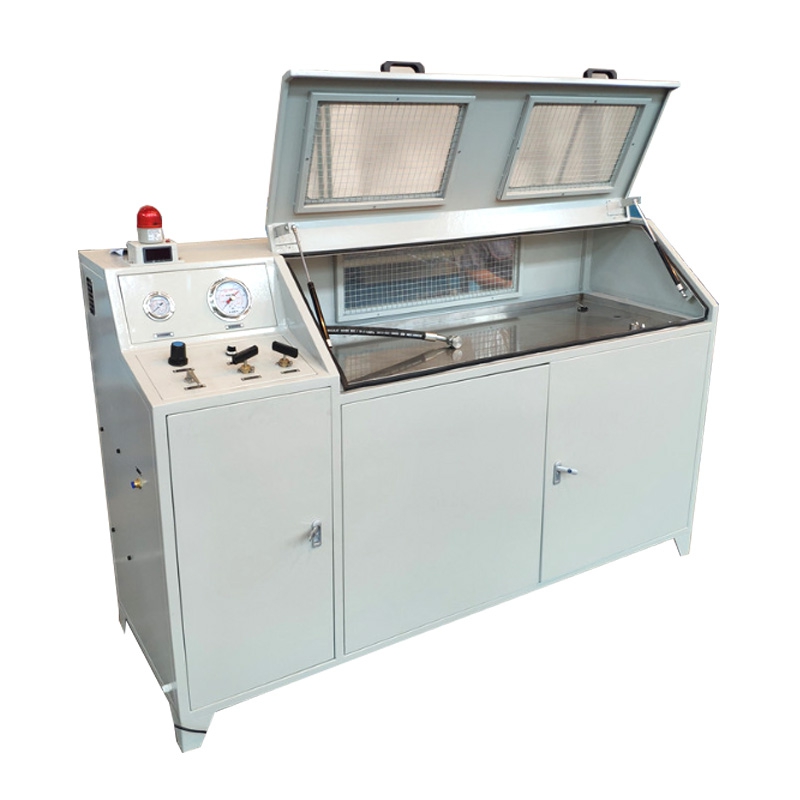

The Brake Hose Hydraulic Pressure Tester can be customized and produced according to customer needs. The testing medium is water or emulsion, and the testing pressure can reach 3500bar; Multiple control methods such as manual control and automatic control can be provided. Depending on the operating conditions, a single pump or dual pump boosting mode can be used.
The Brake Hose Hydraulic Pressure Tester is used for testing the pressure and explosion performance of various automotive hoses, rubber hoses, air conditioning pipes, automotive assemblies, and other products. Used for measuring the burst pressure and pressure resistance time of various types of pipe fittings.
Brake Hose Hydraulic Pressure Tester is widely used in the production, development and research of various hoses in quality inspection units, various vehicle component manufacturing units, product quality inspection stations, scientific research institutions, and other fields. The pressure test system is mainly composed of Saist liquid booster pumps, etc., which mainly completes the pressurization and pressure maintaining work of the system, ensuring the pressurization and pressure maintaining of long-term tests.
Technical parameters:
|
Manual control type technical parameters |
|
|
Test object |
Shell, pipe fittings, or pressure vessels |
|
Function |
Explosion and pressure test |
|
Test medium |
Water, hydraulic oil, or other agreed media |
|
Boosting method |
Gas driven 255 times liquid booster pump |
|
Maximum pressure |
170 MPa |
|
Medium, ambient temperature |
room temperature |
|
High voltage test interface |
M14*1.5 |
|
Drive air supply pressure |
0.55—0.8MPa |
|
Control mode |
manual control |
|
Box size |
1500mm * 700mm * 1320mm |
|
|
|
|
Computer controlled technical parameters |
|
|
Test object |
Various pipe fittings or pressure vessels |
|
Function |
Explosion and pressure test |
|
Test medium |
water |
|
Boosting method |
255 times gas-liquid booster pump |
|
Working pressure |
Test pressure 150-200mpa |
|
Pressure sensor accuracy |
±0.5%FS, Pressure gauge and computer dual display pressure |
|
Power Supply |
AC 220V |
|
Medium, ambient temperature |
room temperature |
|
High voltage test interface |
High voltage interface high voltage quick plug connector |
|
Drive air supply pressure |
0.6-0.8MPa, Not less than 1.0m ³/ min |
|
Control mode |
Computer enclosed control and PC direct digital adjustment control test bench(Using Labview 10.0 software from the United States, it has the function of dynamically displaying and automatically recording and saving test times, pressure, and test waveforms, making it easy to query and print out.) |
|
Box size |
2200mm * 700mm * 1320mm |
Applicable products:
Automotive steering pipes, brake pipes, air conditioning pipes, fuel pipes, cooling water pipes, radiators, heating hoses, hydraulic equipment, condensers, evaporators, air conditioning filter hoses, turbocharging system hoses, automotive brake pumps, cylinder bodies, engineering hydraulic hoses, aviation hoses and manifolds, hard pipes, joints, valves, pressure instruments, pressure vessels, pressure transmitters, etc.
Safeguard:
1. The equipment is equipped with an overvoltage alarm function. When there is a sudden change in pressure in the test circuit, the equipment will automatically alarm. When it exceeds the safety range, the equipment will automatically stop;
2. The equipment is equipped with a leakage alarm function for pipeline and workpiece failures in the test room;
3. Leakage protection: The device is equipped with a high sensitivity leakage protection module. When the leakage protection device acts, the circuit breaker cuts off the main circuit power supply;
4. The equipment has protection functions such as short circuit, overcurrent, phase loss, and phase sequence;
5. The equipment is equipped with an emergency stop button function: When an emergency occurs during operation, pressing the emergency stop button can immediately stop the equipment operation.
