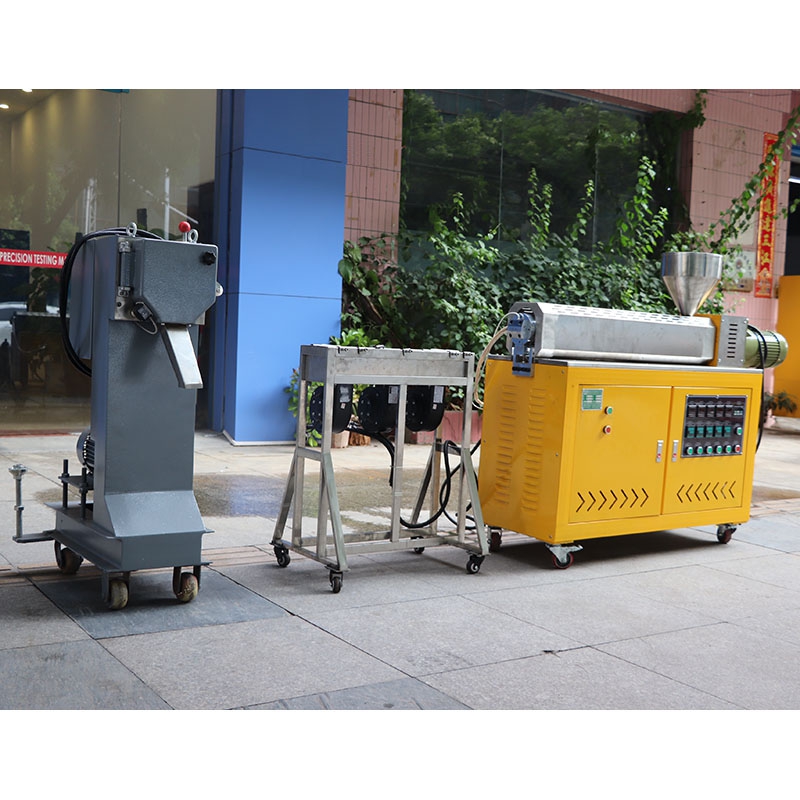

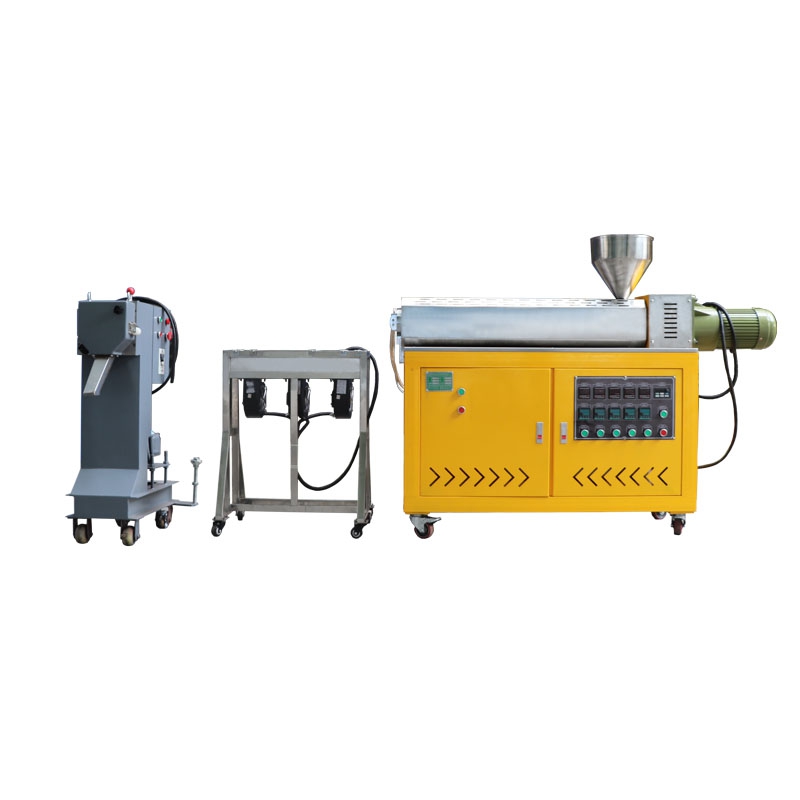

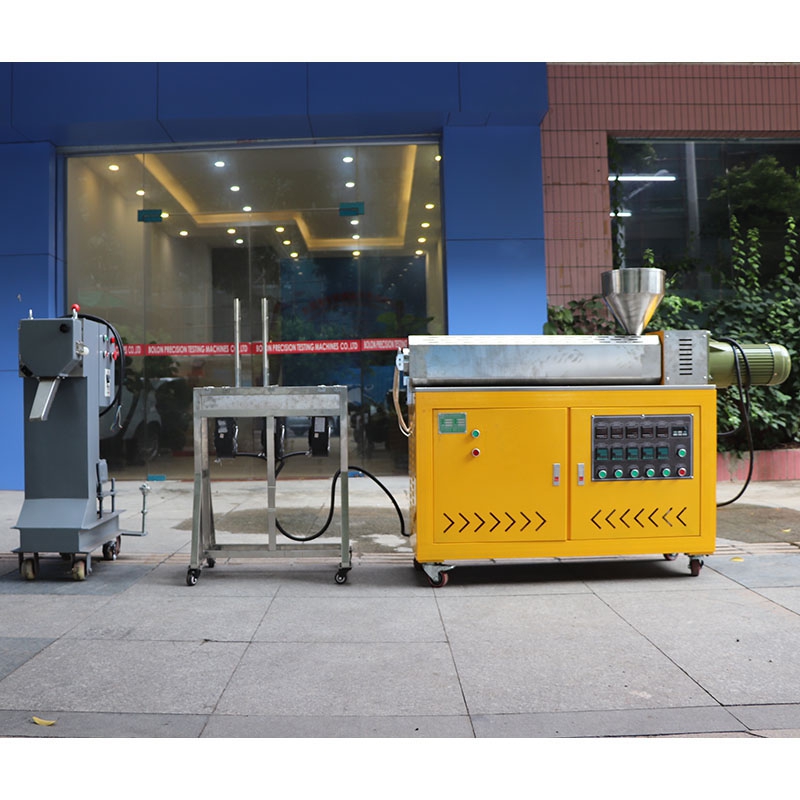

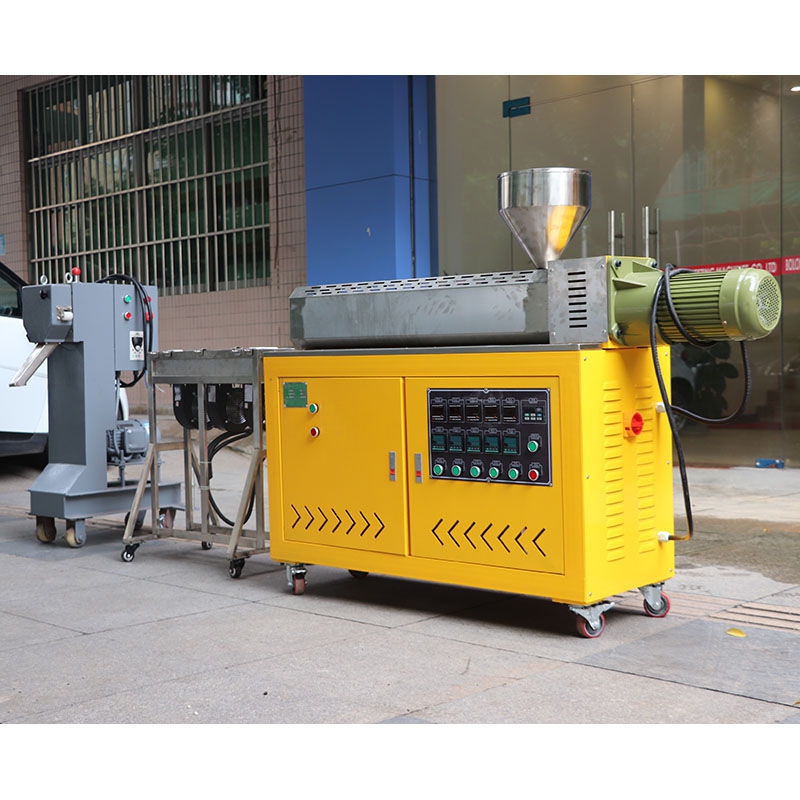

Lab Small Plastic Raw Materials Granulator
The lab small granulator is used for the mixing and processing of thermoplastic plastic raw materials, plasticized coloring, filling and modification, with uniform dispersion and wide application.
Specification
|
Screw shape |
Flat same direction |
|
Screw diameter |
Ø21.7mm |
|
Number of screws |
Parallel twin screw |
|
Screw speed |
0-120r/min frequency control |
|
Length to diameter ratio |
L/D=40:1 |
|
Screw material |
High speed tool steel W6Mo5Cr4V2, hardness HRC58-62; |
|
heating power
|
Heating zone 1 500W |
|
Heating Zone 2 500W |
|
|
Heating zone 3 500W |
|
|
Heating zone 4 500W |
|
|
Heating zone 5 500W |
|
|
Heating 6 zones 500W |
|
|
cooling method |
Soft water cooling |
|
Water tank capacity |
30L |
|
Cooling pump |
0.37KW |
|
Metering feeder |
0.75KW Keyuan inverter realizes stepless speed change; |
|
Maximum feed amount |
≥8kg/h; |
|
Feeding method |
Twin screw volumetric feed; |
|
Vacuum pump vacuum |
0~0.08MPa |
|
Vacuum pumping capacity |
20M3 /hr |
|
motor |
0.75KW exchange |
|
Water-cooled strip cutting system |
Head die orifice: 2-Ø3 |
|
Cooling sink size |
1200×500×920mm (W×D×H), several sets of detachable roller wire devices are installed in the water tank |
|
Dryer power |
0.37KW |
|
Pelletizer power |
0.75KW/frequency control |
|
Host size |
2300X550X1640mm |
|
power supply |
3∮, AC380V, 50Hz |
|
weight |
About 500kg |
