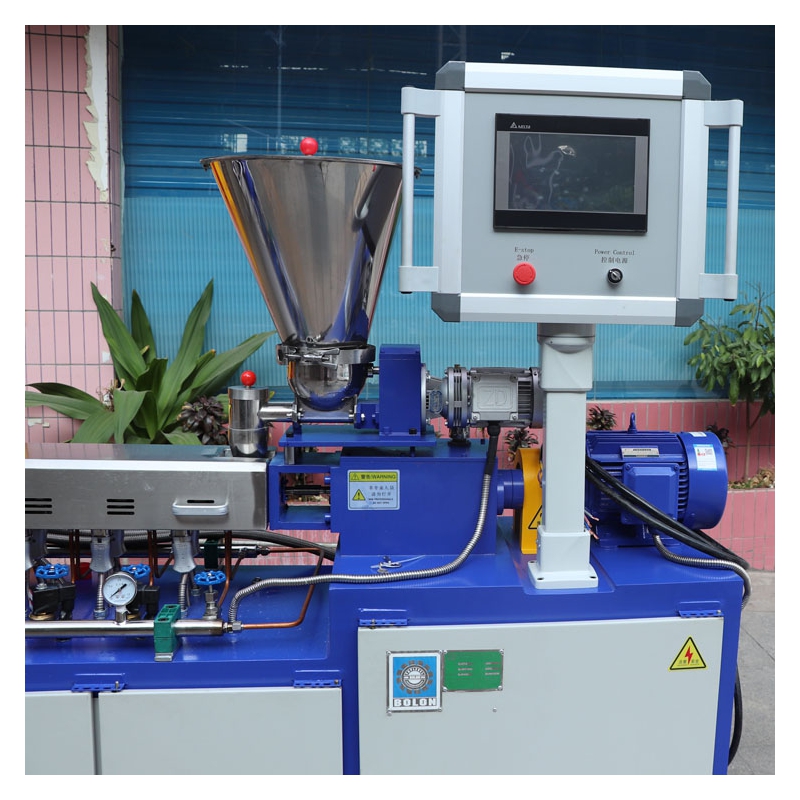

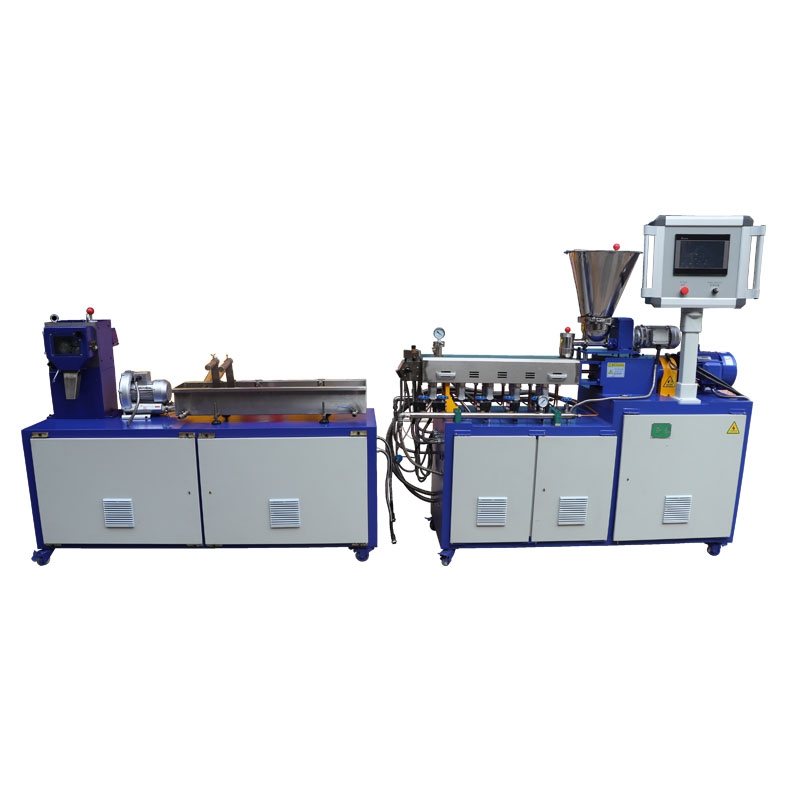

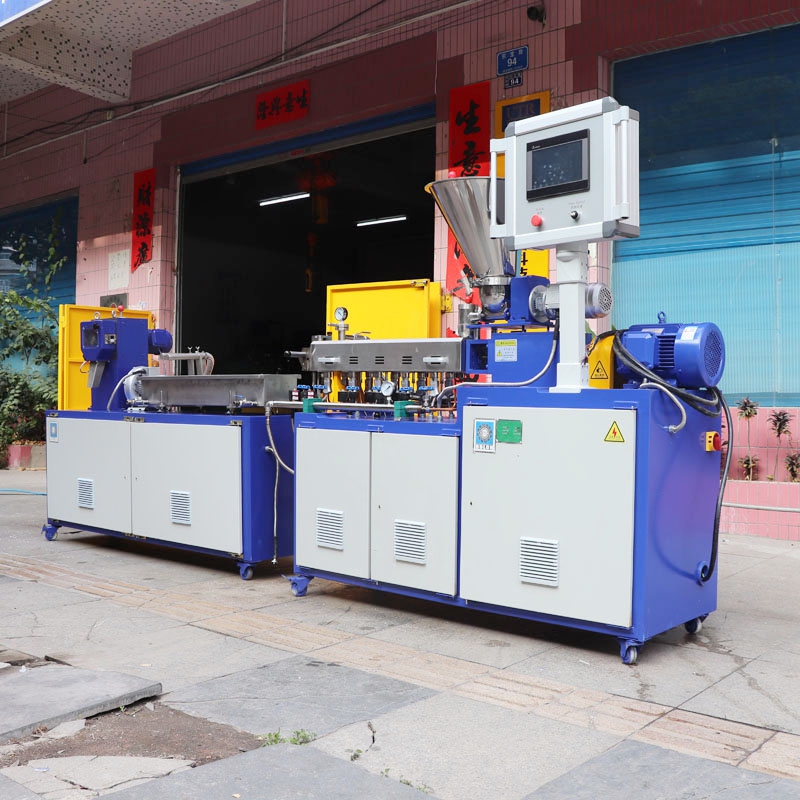

The lab twin-screw extrusion granulator is used for the mixing and processing of thermoplastic plastic raw materials, plasticized coloring, filling and modification, with uniform dispersion and wide application.
Technical Parameters:
|
Screw shape |
Flat same direction |
|
Screw diameter |
Ø21.7mm |
|
Number of screws |
Parallel twin screw |
|
Screw speed |
0-120r/min frequency control |
|
Length to diameter ratio |
L/D=40:1 |
|
Screw material |
High speed tool steel W6Mo5Cr4V2, hardness HRC58-62; |
|
heating power
|
Heating zone 1 500W |
|
Heating Zone 2 500W |
|
|
Heating zone 3 500W |
|
|
Heating zone 4 500W |
|
|
Heating zone 5 500W |
|
|
Heating 6 zones 500W |
|
|
cooling method |
Soft water cooling |
|
Water tank capacity |
30L |
|
Cooling pump |
0.37KW |
|
Metering feeder |
0.75KW Keyuan inverter realizes stepless speed change; |
|
Maximum feed amount |
≥8kg/h; |
|
Feeding method |
Twin screw volumetric feed; |
|
Vacuum pump vacuum |
0~0.08MPa |
|
Vacuum pumping capacity |
20M3 /hr |
|
motor |
0.75KW exchange |
|
Water-cooled strip cutting system |
Head die orifice: 2-Ø3 |
|

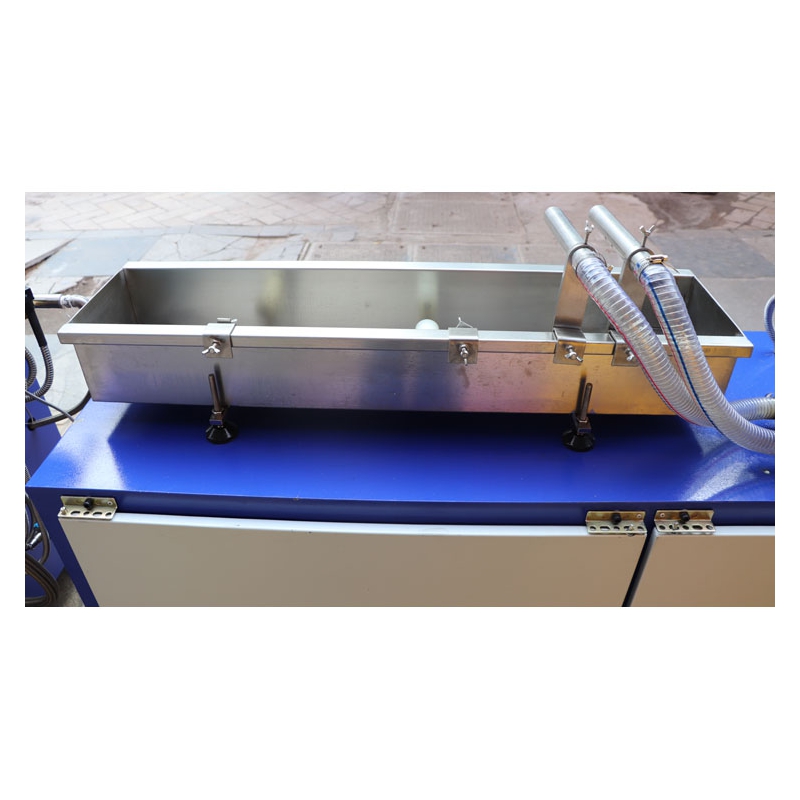

Cooling sink size |
1200×500×920mm (W×D×H), several sets of detachable roller wire devices are installed in the water tank |
|
Dryer power |
0.37KW |
|

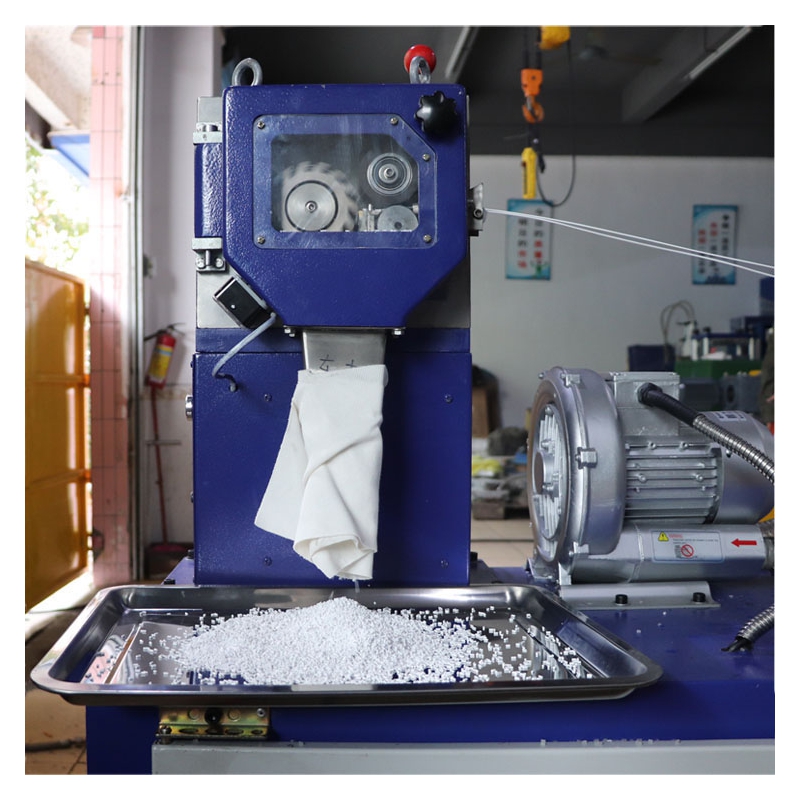

Pelletizer power |
0.75KW/frequency control |
|
Host size |
2300X550X1640mm |
|
power supply |
AC380V, 50Hz |
|
weight |
About 1000kg |
