Tensile Test Equipment

Introduction:

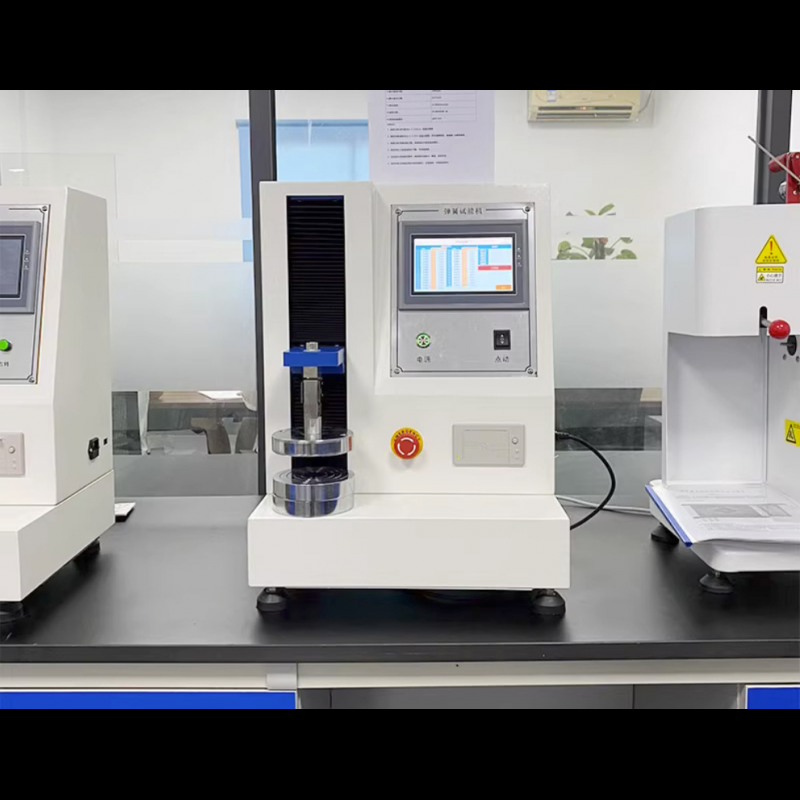

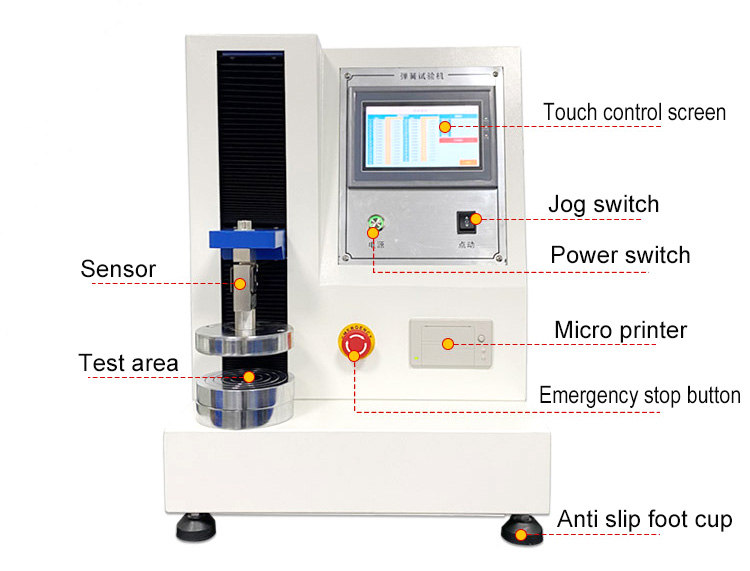

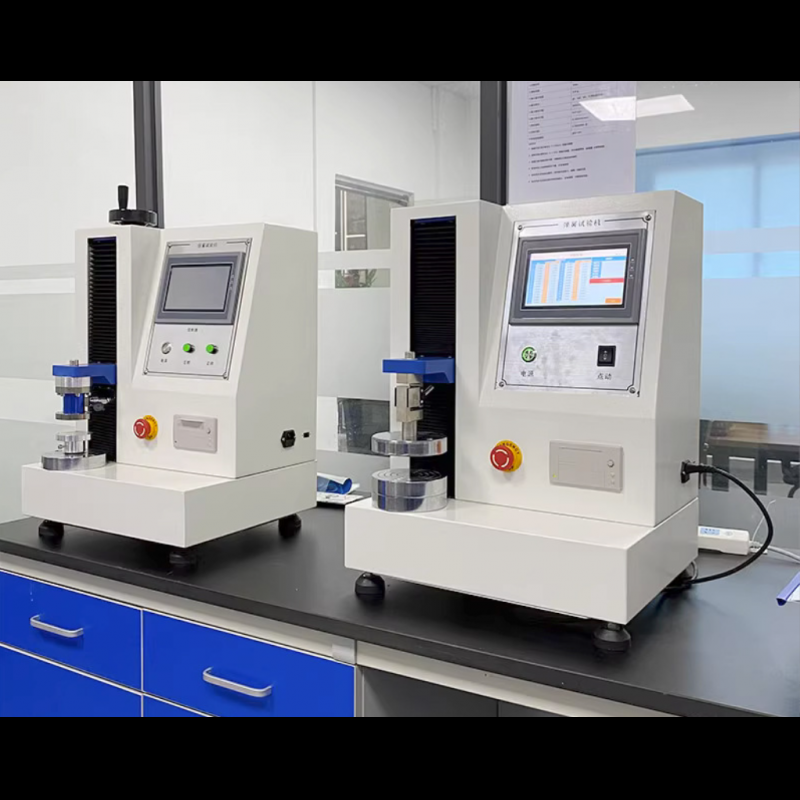

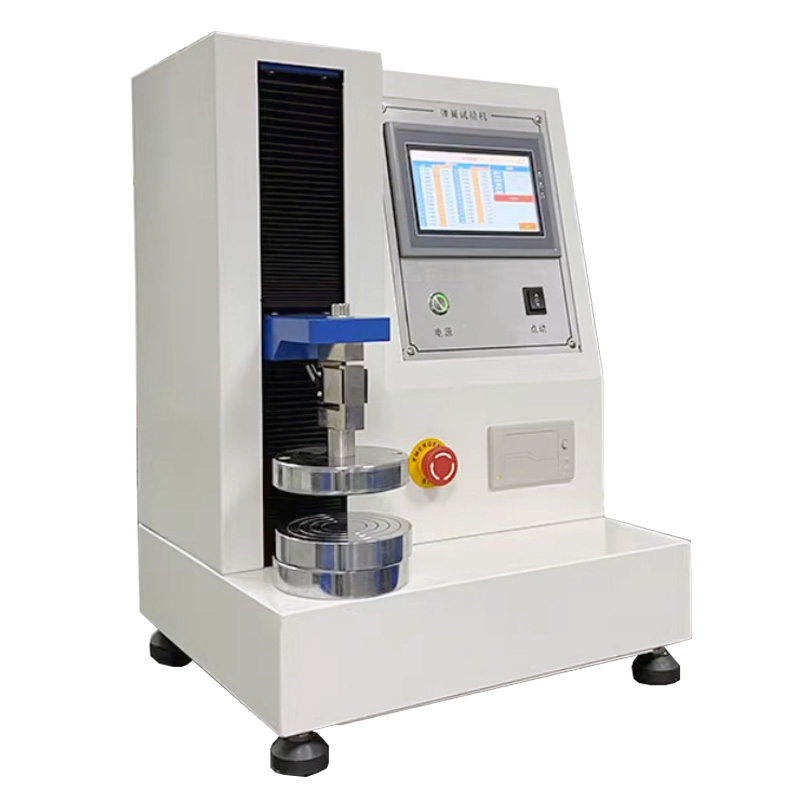

The fully automatic spring testing machine is suitable for tension and pressure testing of various coil springs. The machine can automatically test the free length of the spring and simultaneously output the force and spring coefficient at four points. The machine has good precision and repeatability, and is widely used in spring factories and research institutions.

Key Specification:

Features:

1. Can automatically measure the tension, pressure, and elasticity coefficient of the spring, and can simultaneously measure four points;

2. Adopting a touch screen operating system, the operation is simple and convenient;

3. The power division value can be freely set to three decimal places of 0.001N. The displacement can reach 0.01mm;

4. Equipped with automatic and manual zero capture functions. Can achieve efficient zero capture and automatically remember altitude when power is off;

5. Pressure testing can achieve dual testing of height method and deformation method (pressure method: can test the force corresponding to the remaining compression of the spring. Deformation method: can test how much downward compression is after touching the spring. Both functions can simultaneously measure 4 points).

6. Pre loading and rigid compensation correction can ensure the accuracy of the measured values;

7. Overload protection and emergency stop function of load sensor;

8. Equipped with a micro printer.
