Tensile Test Equipment

Introduction:

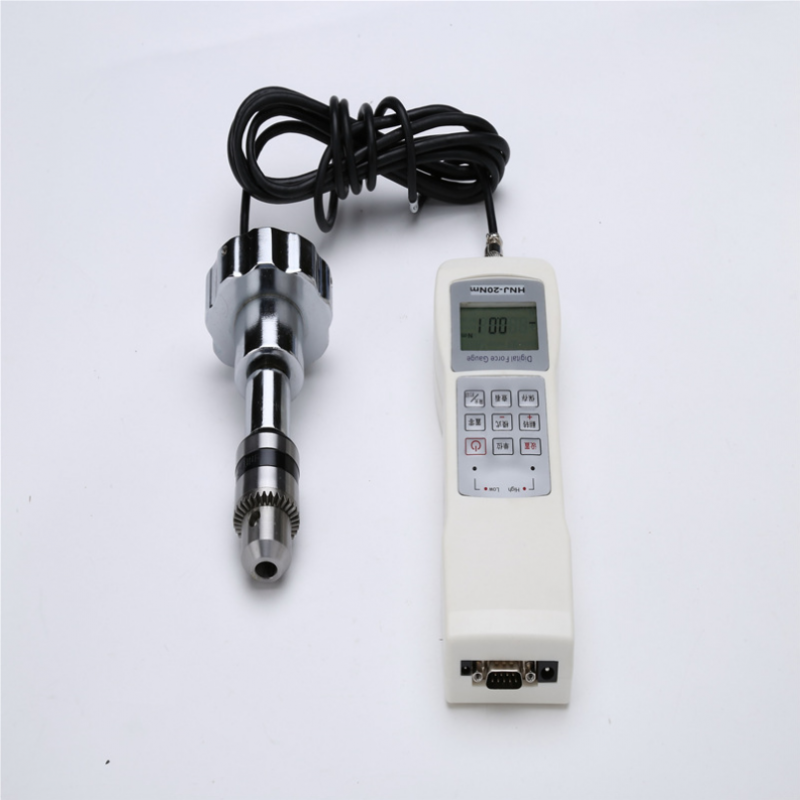

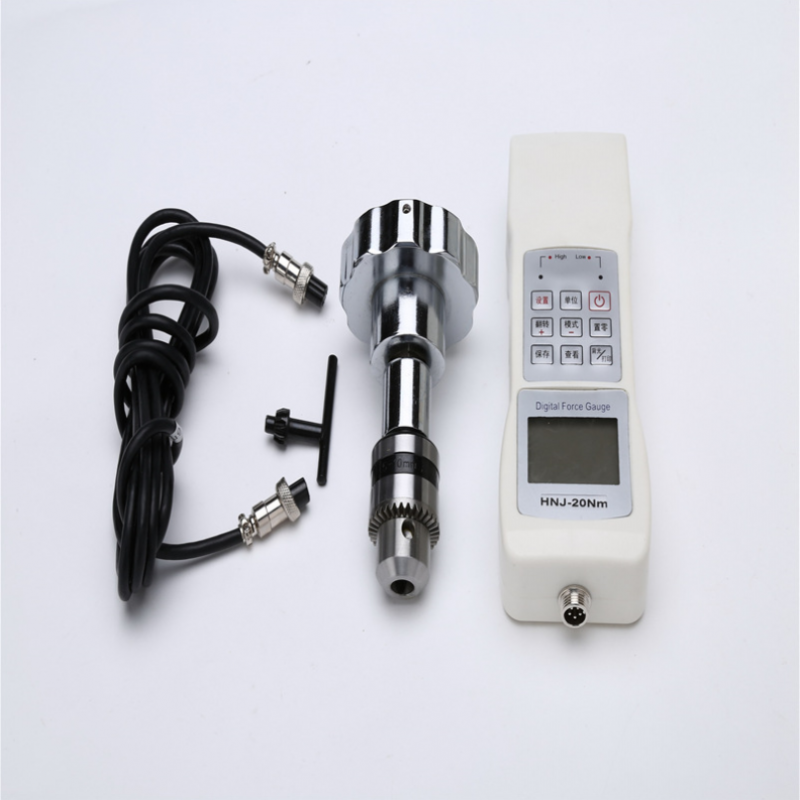

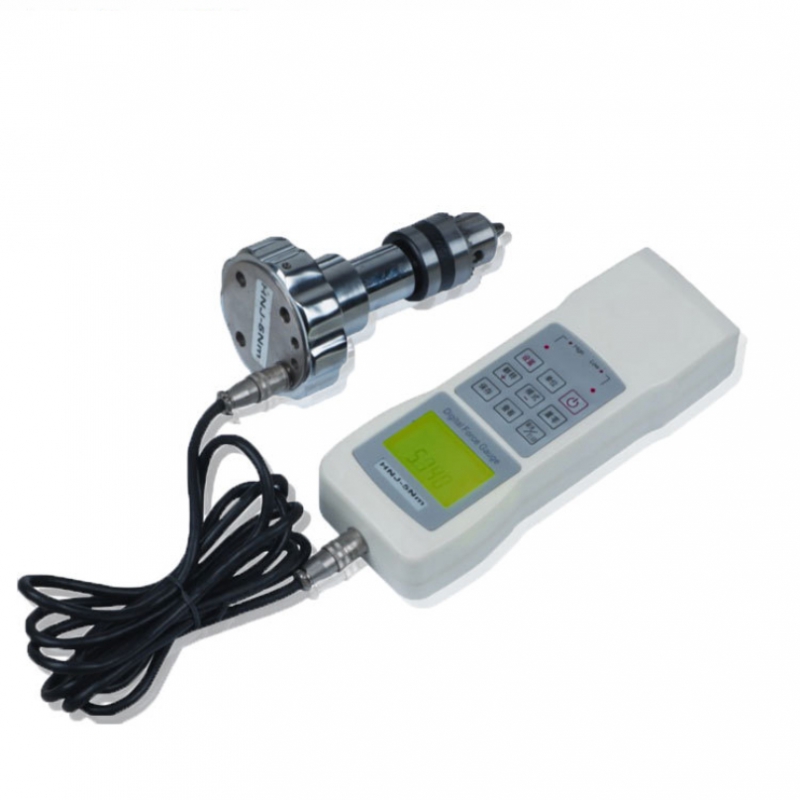

This digital torque meter is another testing instrument designed and developed for testing various torques. The lock-type drill chuck design can clamp a variety of tested workpieces, screwdriver bits, screwdriver sleeves, etc. The maximum opening size (1-10mm) torque meter has an accuracy of up to 0.5%, which is more accurate than traditional pointer torque meters and torque wrenches.

Key Specification:

Features:

1. High precision, high stability, high resolution

2. Free setting of upper and lower limit deviation value, automatic sound alarm and level signal output

3. Test direction display (counterclockwise +, clockwise -)

4. Segment LCD, green backlit screen

5. Store 99 sets of test data, and automatically calculate the average, maximum and minimum values of the stored data

6. Three units of N.m, kgf.cm and lbf.in are automatically interchangeable

7. Peak hold and automatic peak release function (can be set from 0 to 99 seconds)

8. Gravity acceleration value can be set

9. Automatic shutdown without operation (free setting of time 0~99 minutes)

10. Adopt an external smart charger, which can be charged safely and extend battery life

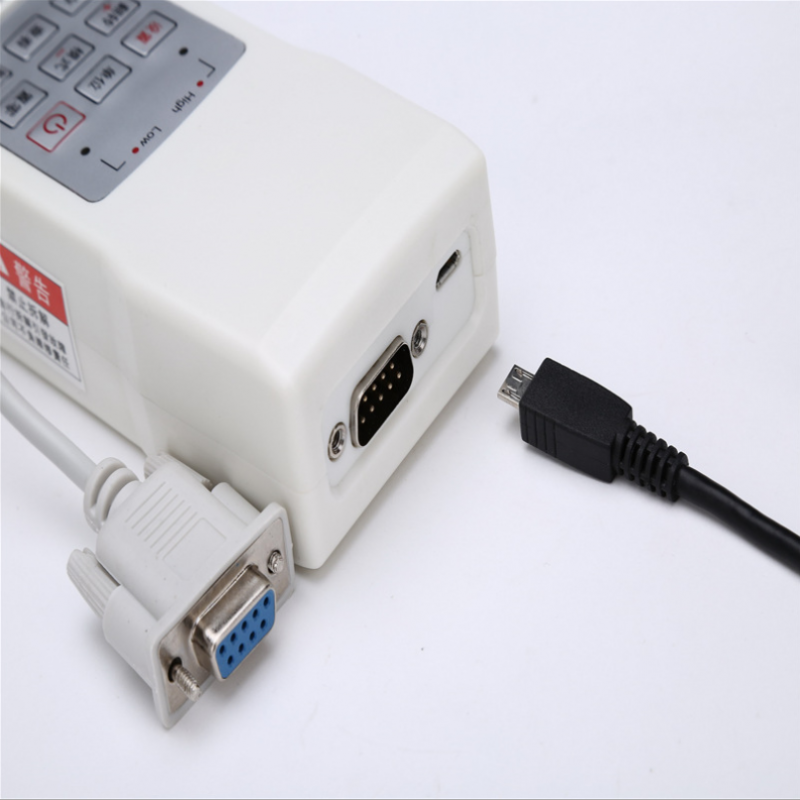

11. Serial port output (baud rate 9600), which can print test data and maximum, minimum and average values.

12. Connect to the host computer to read, store, analyze and print real-time data
