Equipment summary:

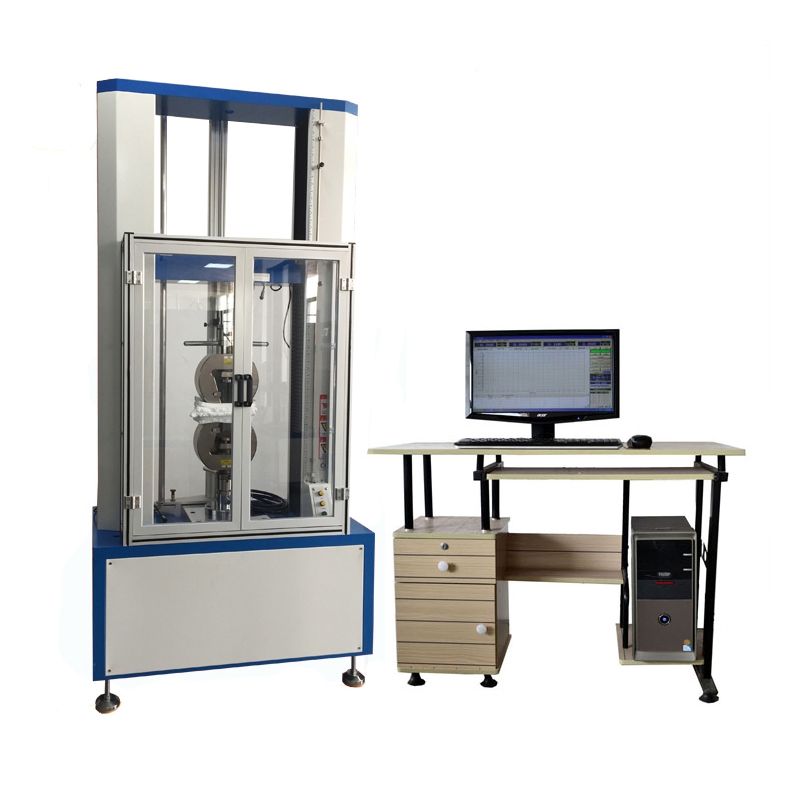

This Computer Servo Type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the oad, displacement measurement and control, it also can be tested the constantvelocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 10ton.
Main function:
Mainly applied to test the metallic and non-metallic materials in tension, compression, bending, shear, peel, tear or two-points extensions and others, such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire
Main feature:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
Corresponding standard: GB/T16491-1996 electronic universal testing machine
Applicable industry:
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.
Technical parameter:
|
Maximum load |
10T,20T,30T |
|
Accurate grade |
1 grade /0.5 grade |
|
Effective measuring range |
0.2%~100%(1 grade)/0.4%~100%(0.5 grade) |
|
Measuring accuracy |
Display the value ±1%/Display the value±0.5% |
|
Tester resolution |
Max load 1/200000,constant the resolution |
|
Load sensor |
Basic configuration:sensor(max load): one Extended configuration:can add more sensors |
|
Effective testing width |
400mm(can be widened according to customer’s requirement ) |
|
Effective tensile stroke |
800,1000mm;1200mm;1400mm (can be increased the height according to customer’s requirement) |
|
Range of testing speed |
0.001~100mm/min |
|
Accuracy of displacement measurement |
Tolerance: ±0.5%/ tolerance: ±0.2% |
|
Deformation of measured system (according to the requirements) |
Min span :10mm,Max range of deformation: 800mm Extended deformation: Min span: 25mm,50mm,100mm, range of deformation :5mm,10mm,25mm |
|
Accuracy of measured deformation |
Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
|
safety |
Electronic-limit protection |
|
Testing platform moving device |
Fast /slow two speeds to control,can jog |
|
Back to function of testing platform |
Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
|
Overload protection |
Overload 10%,automatic protection |
|
fixture |
A set of tensile fixture |
|
Machine size |
107*56*210cm(length*width*height) |
|
Motor |
Panasonic AC servo motor and drive |
|
power |
220V,50HZ, |
|
power |
0.75KW(depending on different demand of force, using different motor) |
|
weight |
(about)320 KG |
|
Unit |
KG,N,LB, TON can be exchanged. |
