Main function:

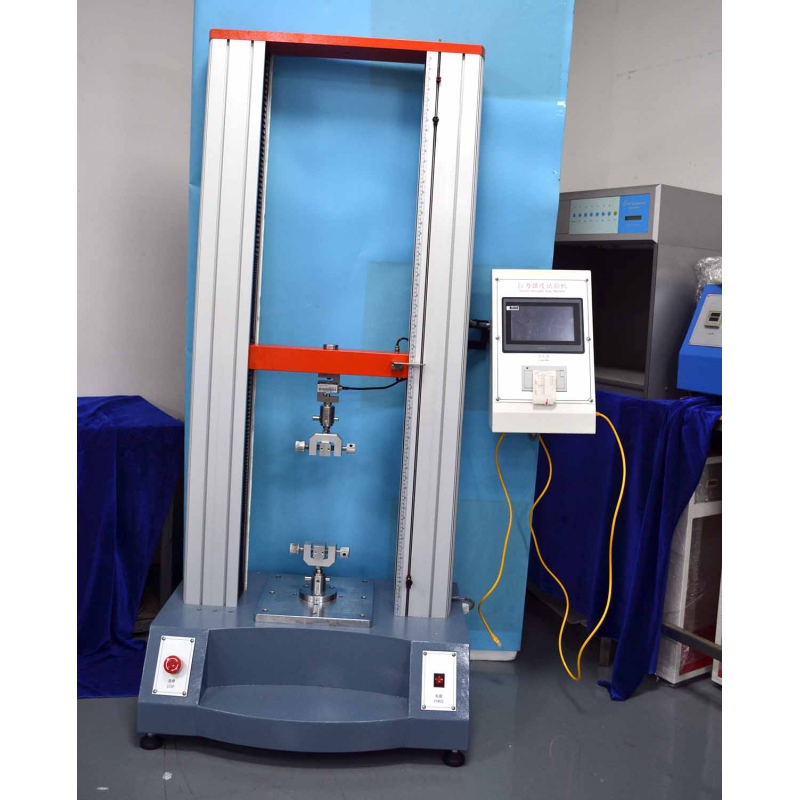

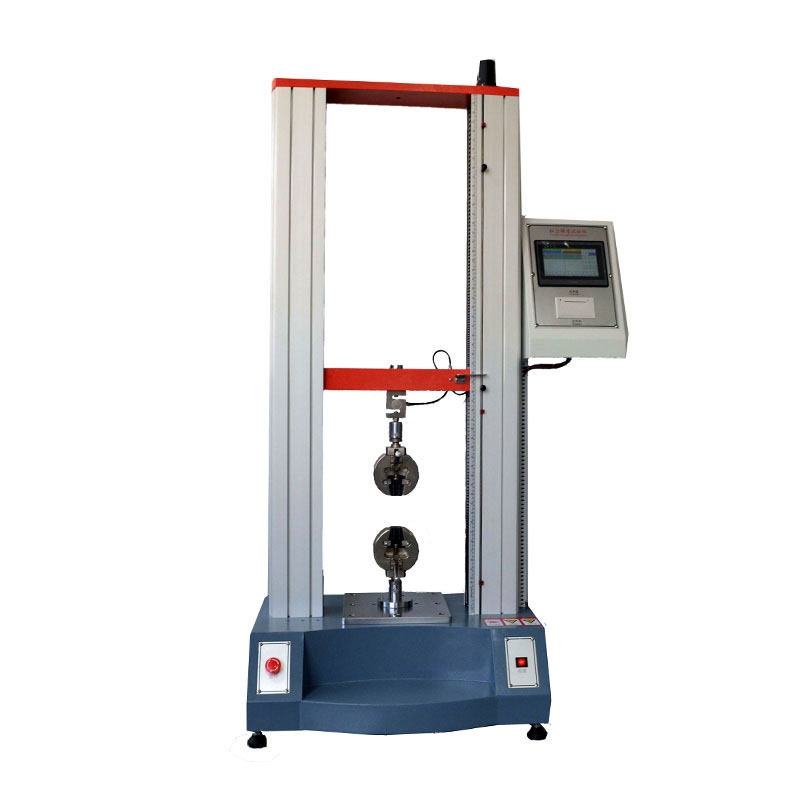

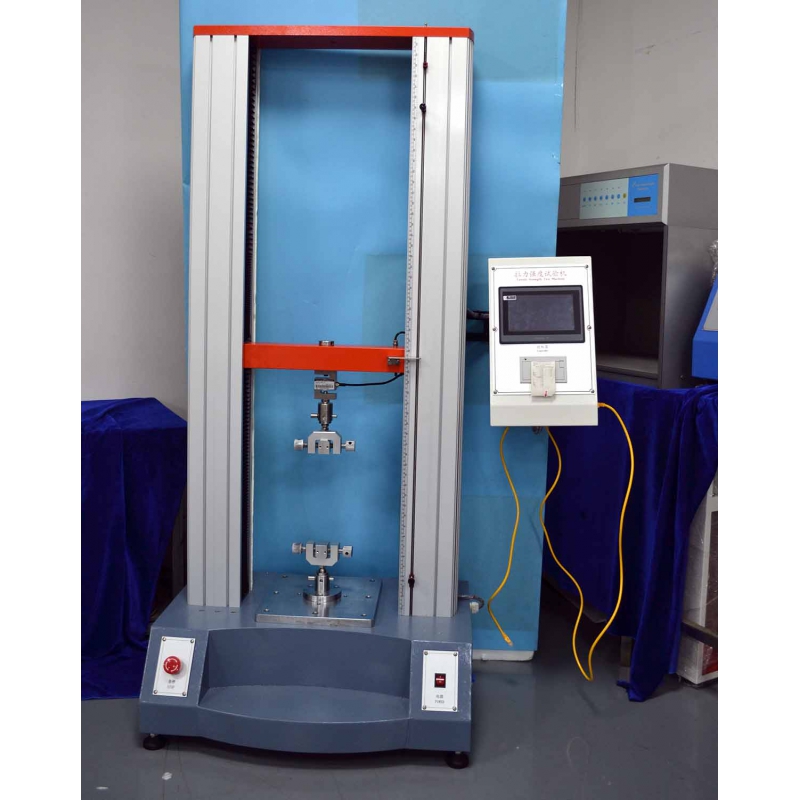

Textile Fabric Universal Tensile Strength Tester is applied to test all material in tension, compression, bending, shear, peel (90 degrees and 180 degrees), tear or two extended (need to add extensometer) and others, the material such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials, it can judge the product quality from the test.
Corresponding standard: GB/T16491-1996 electronic universal testing machine
Applicable industry：
It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested.
Technical parameters:
|
Max. load |
2000KG US CELTRON high precision sensor |
|
Capacity |
100,200,500,1000,2000kg |
|
Unite |
Kg、lb、N |
|
Measuring system |
Load cell+ZL-2000 |
|
Load measurement accuracy |
Load cell+ZL-2000, displayer±0.5%(5%-100% of FS) |
|
Resolution |
1/25000 |
|
Max. test space |
About 1000mm (Excluding fixture, support custom) |
|
Effective width of test |
380mm |
|
Test speed |
50-300mm/min, STEPLESS speed regulation and 5 constant speed(support custom) |
|
Sampling rate |
200times/sec |
|
Set breakpoints ratio range |
0~99%, can be set according different specimen, to Implement different location of the stop condition. |
|
Safety device |
Overload and emergency stop device, up and down stroke limit device |
|
Dynamical system |
AC motor + HOLIP frequency converter |
|
Work rate |
200W (According to load) |
|
Volume |
1100×700×2000mm |
|
Weight |
200kg |
|
Power Supply |
220V/50Hz |
