Technical parameters:
|
Model |
ZT-3002A |
|
Max load |
100N,200N,500N,1KN,2KN,5KN, option |
|
Accurate grade |
1grade /0.5 grade |
|
Effective measuring range |
Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade) |
|
Measuring accuracy |
the value ±1% / the value±0.5% |
|
Tester resolution |
Max load 1/200000,constant the resolution |
|
Load sensor |
Basic configuration sensor max load: one |
|
Effective testing width |
400mm (can be increased the width according to customers requirement) |
|
Effective tensile stroke |
400, 500, 600mm (can be increased the space according to customers requirement) |
|
Testing speed |
From 0.001 to 500mm/min |
|
Accuracy of displacement measurement |
Tolerance: ±0.5% / tolerance: ±0.2% |
|
Deformation of measured system (according to the requirements ) |
Min span :10mm, Max range of deformation 800mm Extended deformation span: 25mm, 50mm, 100mm, range of deformation 5mm, 10mm, 25mm |
|
Accuracy of measured deformation |
Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
|
safety |
Electronic-limit protection |
|
Testing platform moving device |
Fast /slow ( two speeds to control),can jog |
|
Return Back |
Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
|
Overload protection |
Overload 10%, automatic protection |
|
fixture |
A set of tensile fixture |
|
Machine size |
550×420×1800mm(length*width*height) |
|
Power system |
AC Motor + Driver |
|
Power supply |
220V, 50HZ |
|
Power |
0.75KW (depending on different demand of force, using different motor) |
|
Machine weight |
about 120 Kg |
|
Units |
Kg,Lb,N, Ton, (can be exchanged) |
Summary:

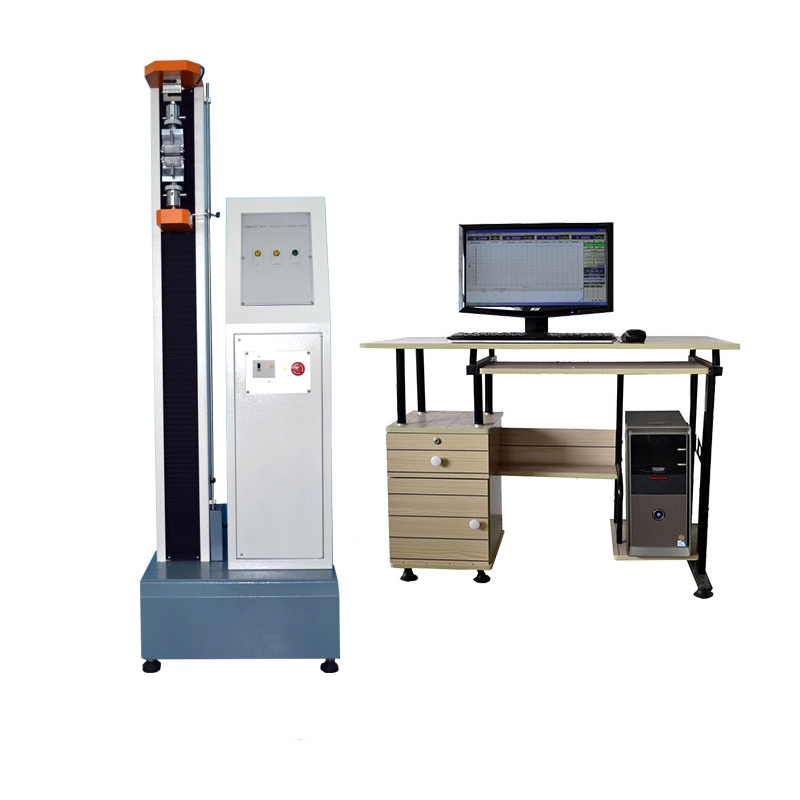

Plastic Packaging Films Universal Tensile Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line. This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 5KN.
Main functions:
Plastic Packaging Films Universal Tensile Testing Machine can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials.
Corresponding standard:
GB/T16491-1996 electronic universal testing machine
Applicable industry:
Plastic Packaging Films Universal Tensile Testing Machine is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested.
1. the surface of appearance using electrostatic spray, simple and generous, multi-functions and economy.
2. digital force displayed by LCD , discernible tension or pressure, LCD display clearly
3. Three kinds of units: N, KG, Lb, option or automatically exchange;
4. LCD with backlight can be used in low-light environments
5. Single measurement, it can record the max force of tension and compression in both directions, automatic or manual cleared to zero.
6.The system would shut down if overload or over-trip
7. Structure of single-column is beautiful, sophisticated and economy.
