Technical parameters:
|
Model |

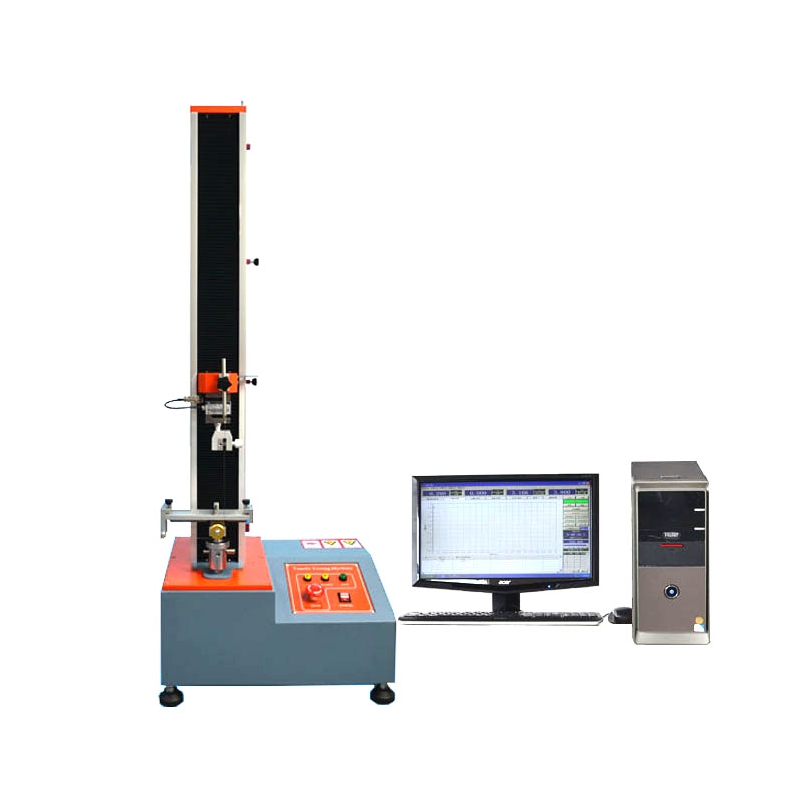

ZT-3001A 180 Degree Tape Peel Adhesion Bond Strength Tester |
|
Maximum load |
200N, 500N, 1KN, option |
|
Accurate grade |
1grade/0.5 grade |
|
Effective measuring range |
0.2%~100%/0.4%~100% |
|
Measuring accuracy |
the value ±1%/ the value ±0.5% |
|
Tester resolution |
Max load 1/200000, constant the resolution |
|
Load sensor |
Basic configuration:sensor(max load): one Extended configuration:can add more sensors |
|
Effective tensile stroke |
500mm(can be increased the height according to customer’s requirement) |
|
Range of testing speed |
0.001~500mm/min |
|
Accuracy of displacement measurement |
Tolerance: ±0.5%/ tolerance: ±0.2% |
|
Safety |
Electronic-limit protection |
|
Testing platform moving device |
Fast /slow two speeds to control, can jog |
|
Return back |
Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
|
Overload protection |
Overload 10%, automatic protection |
|
fixture |
A set of tensile fixture |
|
Machine size |
45x58x135cm (length*width*height) |
|
Motor |
Panasonic AC servo motor and drive |
|
Power supply |
220V, 50HZ |
|
power |
0.4KW(depending on different demand of force, using different motor) |
|
weight |
(about)75 KG |
|
Unit |
KG, N, LB, TON, can be exchanged. |
Main function:
180 Degree Tape Peel Adhesion Bond Strength Tester can be applied to test lots of materials in tension, compression, tear, peel (can 90 degrees and 180 degrees) and other mechanical test, such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.
Applicable industry:
180 Degree Tape Peel Adhesion Bond Strength Tester is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested.
