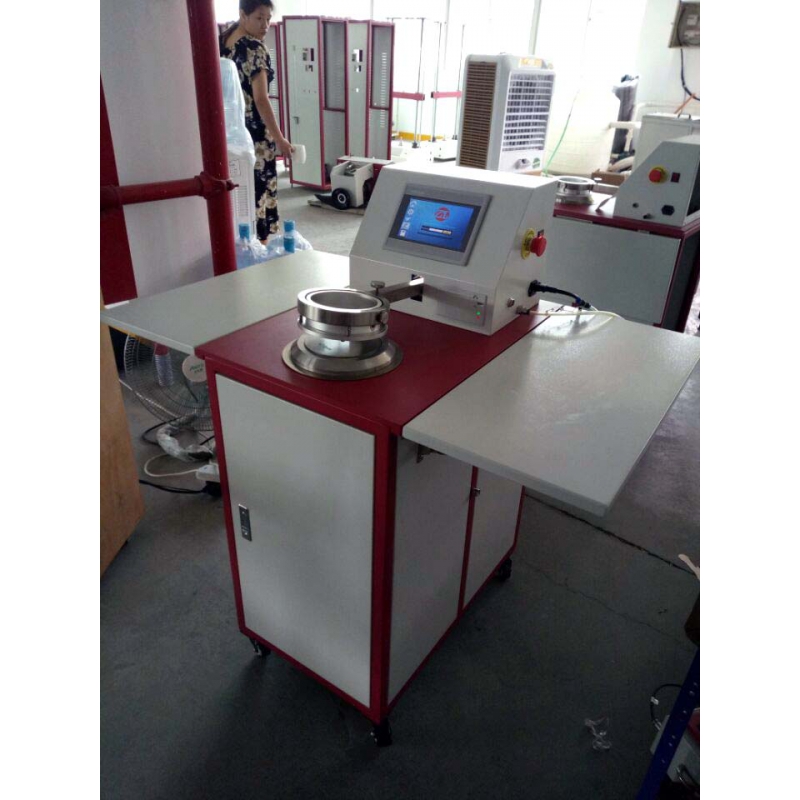

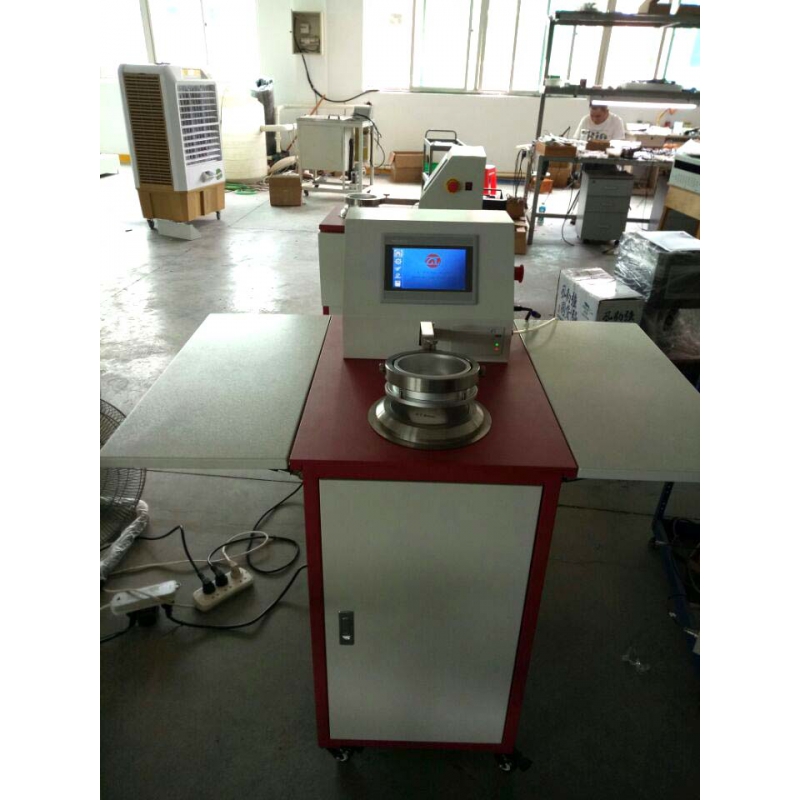

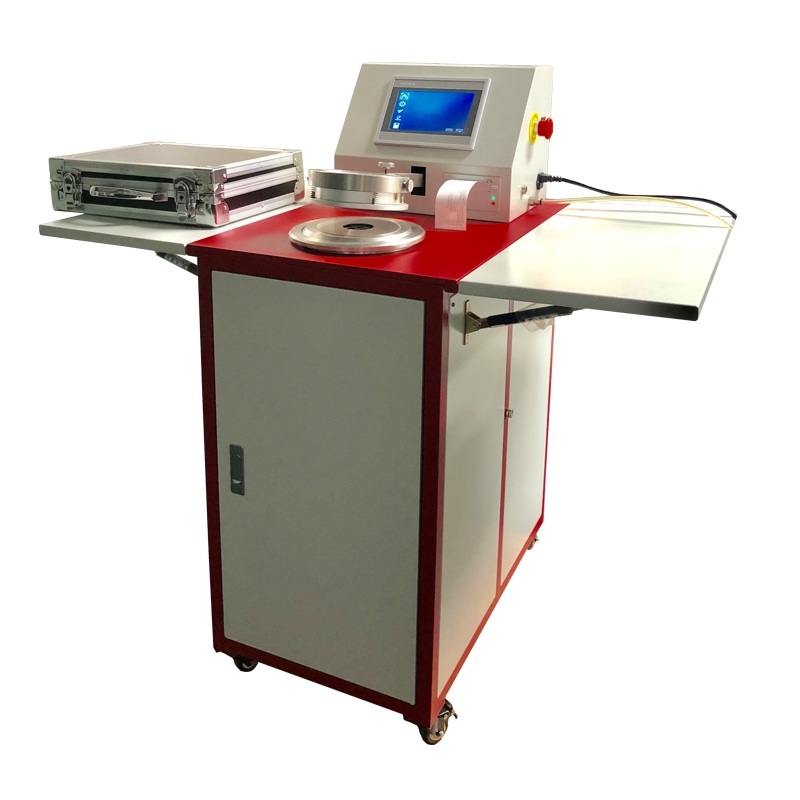

Semi-automatic Fabric Air Permeability Tester
Application:
Digital Textile Fabric Permeability Lab Test Equipment is used to quickly test the air permeability of various sheet materials such as coated fabric, filter paper, filter material and plastics.
Standards compliant:
ISO9237 ISO7231 ISO5636 BS5636 ASTM D737 DIN 53887 JIS L1096 BS5636
Performance characteristics:
1. Switzerland imported high-precision pressure sensor, the accuracy of the leading domestic.
2. Intelligent smart touch interface, dynamic test throughout the show.
3. Full range automatically detects the air permeability and air permeability of various samples.
4. It is possible to arbitrarily set different national standard parameters and units, and the test results are printed without output.
5. Measurement units: mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min
6. Obtained the certificate of computer ventilation test software of the State Intellectual Property Office.
7. Obtained an international third-party accredited laboratory calibration certificate.
Technical Parameters:
|
Pressure range |
0 ~ 4000Pa self-setting pressure drop |
|
Measurable air permeability |
0.1~12000mm/s |
|
Measurement error |
≤±2% |
|
Measurable fabric thickness |
≤15mm |
|
Suction volume adjustment |
data feedback dynamic adjustment |
|
Sample area setting circle |
5cm2; 20cm2; 50cm2; 100cm2 |
|
Sample diameter setting circle |
Φ50mm (≈19.6cm2)Φ70mm (≈38.5cm2) |
|
Nozzles |
a total of 11 |
|
Data processing capacity |
≤1000 tests |
|
Data output |
high-definition touch screen display; own micro-printer |
|
Power Source |
AC 220V±10V 50Hz |
|
Power consumption |
2000W |
|
Weight |
80Kg |
|
Outer shape |
600×700×1100mm (L×W×H) |
