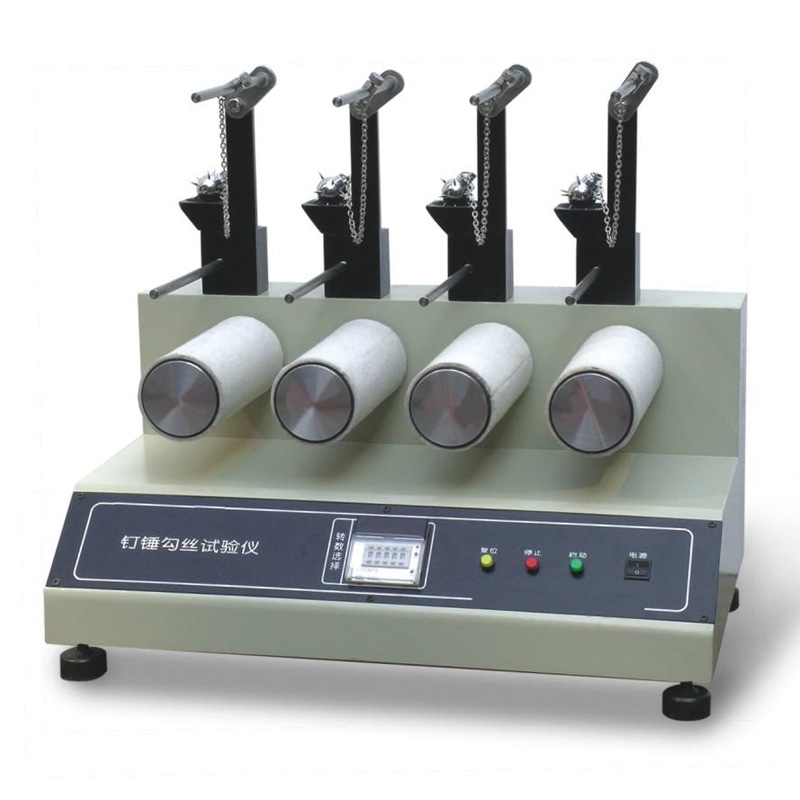

Fabric Nail Hammer Hook Wire Performance Tester
Introduction:
It can quickly detect the difficulty of fabric hooking under normal wearing conditions (that is, the yarn is hooked out of the fabric).
Working principle:
The cylindrical sample is placed on the rotating drum, and the nails suspended by the chain are placed on the surface of the sample. When the drum rotates at a constant speed, the nail hammer randomly flips and jumps on the surface of the sample, and hooks the sample, resulting in a hook wire on the surface of the sample. After the specified number of revolutions, the degree of hooking of the sample is evaluated against the standard photo.
Standard: GB/T 11047
Technical Parameters:
Number of work stations |
4 or custom |
Drum size |
diameter Φ82mm (including the thickness of the outer rubber 3mm), width 210mm |
Rotating speed of drum |
60±2r/min |
Total mass of nail hammer |
160±10g (including 11 needles implanted equidistantly) |
Nail pin |
exposed length 10mm, tip radius: R0.13mm |
Fixed guide rod |
working width 125mm, diameter 10mm |
Power |
AC220V 50Hz |
Dimensions |
910mm×360mm×460mm |
Weight |
46kg |
