Application:

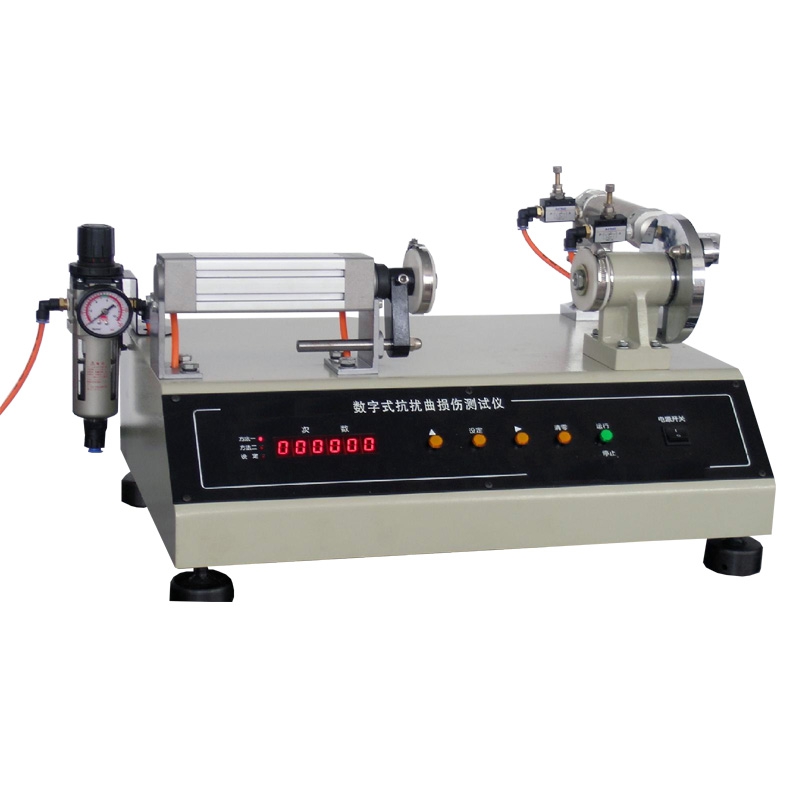

Fabric Anti-Flexural Damage Test Machine used for testing the flexural resistance of leather, rubber, plastic
Standard: BS3424 11D GJB2320 FZT01052 etc.
Technical Parameters:
Count |
0-99999 times (reciprocating and swinging) |
Reciprocating frequency |
152 times/min (2.53Hz) |
Swing frequency |
200 times/min (3.23Hz) |
Reciprocating stroke |
70mm |
Swing angle |
90° |
Cylinder specification |
diameter: 63.5mm,Thickness: 15.0mm,Length: 28.0mm |
Sample size |
220mmx190mm |
Air source |
0.6Mpa |
Power |
Ac220V 50Hz 20W |
Dimensions |
630x450x450mm |
Weight |
50Kg |
