Textile Test Machine

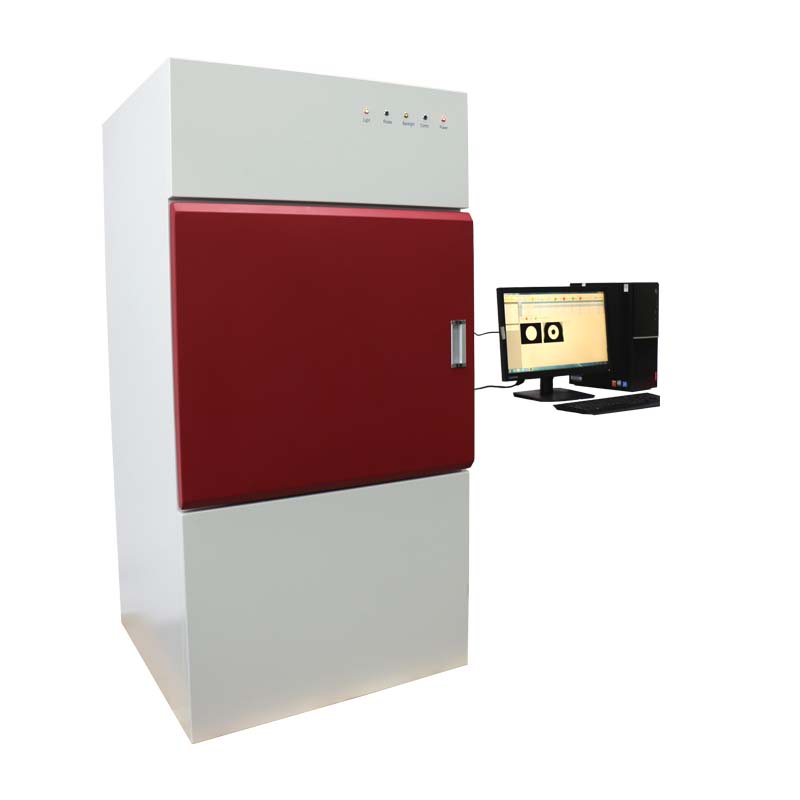

ZT-9034 Lab Textile Fabric Drape Performance Test Machine

    Lab Textile Fabric Drape Performance Test Machine

    Application:

    Textile Fabric Drape Performance Test Machine is used to test the dynamic and static drape performance of various fabrics (drape coefficient, active rate, surface ripple and aesthetic coefficient, etc.).



    Standards:

    GB/T 23329 Textiles - Determination of fabric drape

    FZ/T 01045 Test method for drape of fabrics

    ISO 9073-9 Textiles - Test methods for nonwovens - Part 9: Determination of drape and drape coefficient.



    Features:

    1. Using CCD imaging acquisition sensor, the acquisition speed is fast, and the dynamic acquisition is real.

    2. Professional computer analysis software, through image processing (projection diagram, contour diagram, curve diagram), automatically calculate the static and dynamic drape coefficient and other results.

    3. With the calibration function, the instrument can be calibrated with one key.

    4. Test mode: manual and automatic.



    Technical parameter:

    Round clamping plate

    φ12cm (φ18cm) optional

    Sample size

    φ24cm (φ30cm and φ36cm) optional

    Image sensor

    CCD sensor

    Static (dynamic) drape coefficient

    0~100%; error less than ±2%

    Static (dynamic) corrugation error of suspended surface

    ±1

    Change rate of drape shape

    0~100%; error is less than ±2%

    Static (dynamic) suspension uniformity

    0 to 100%; error less than ±2%

    Speed

    20~300r/min adjustable

    Power supply

    AC220V 50Hz 300W

    Weight

    40kg

     Dimensions

    600×460×1300mm
