Summary:

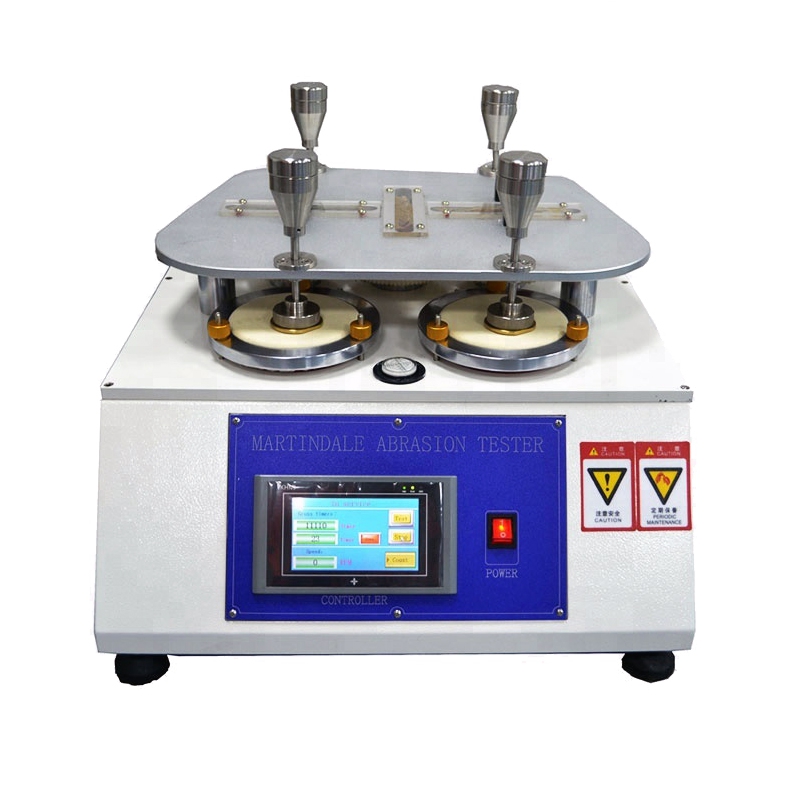

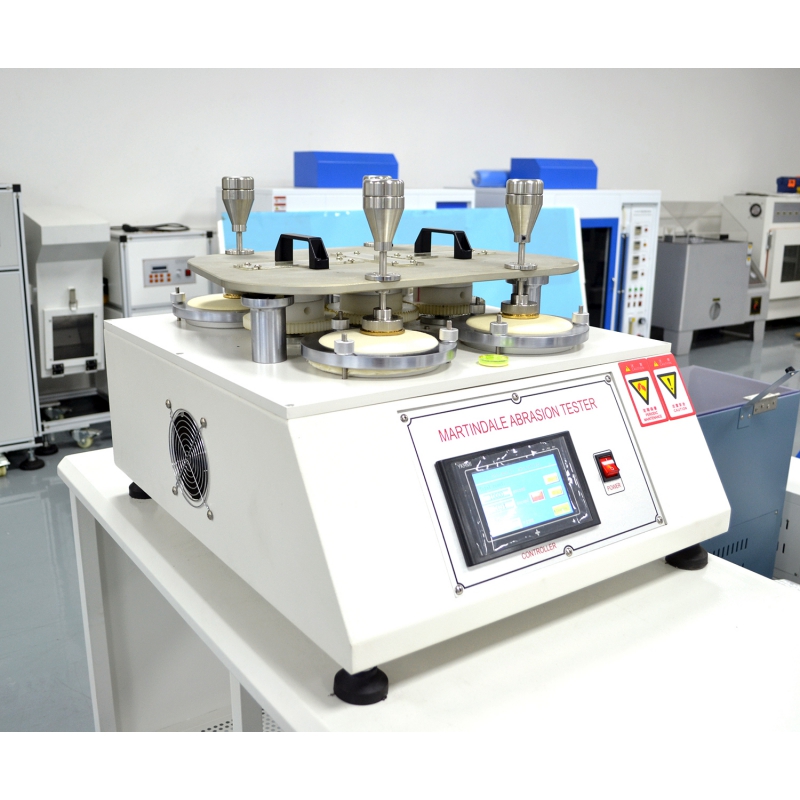

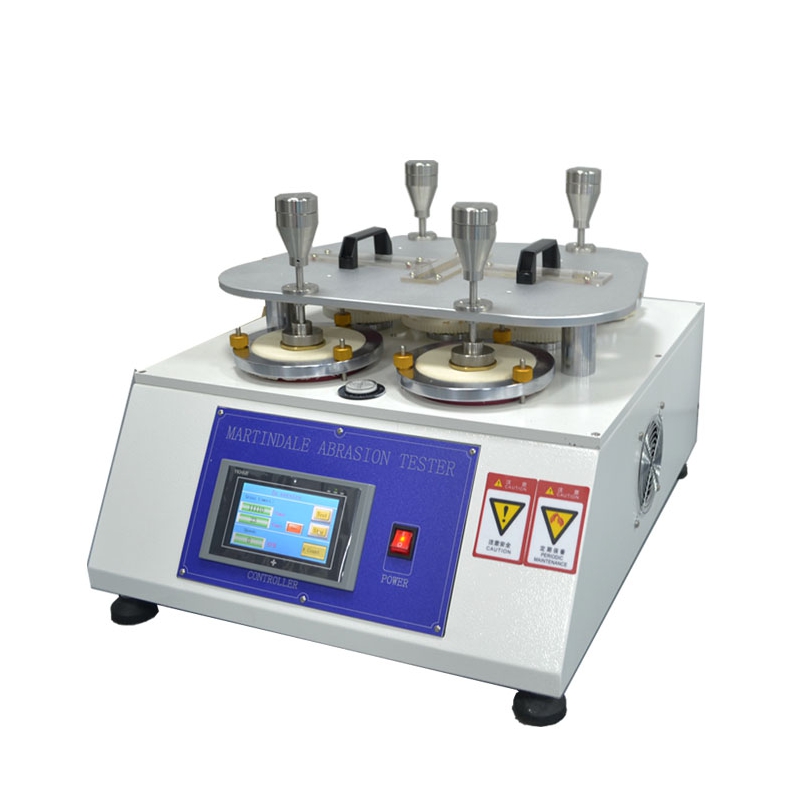

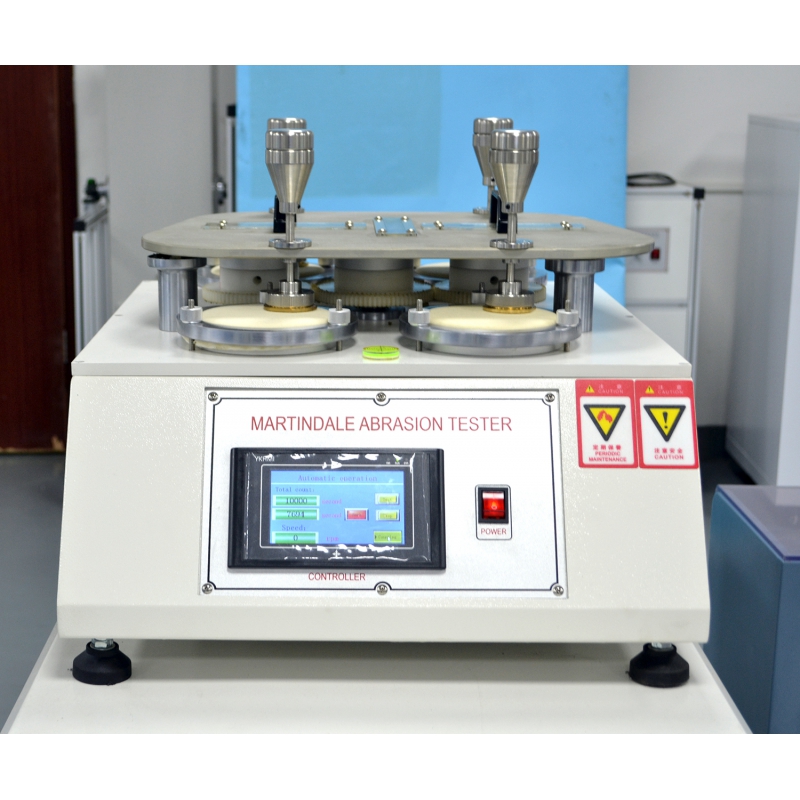

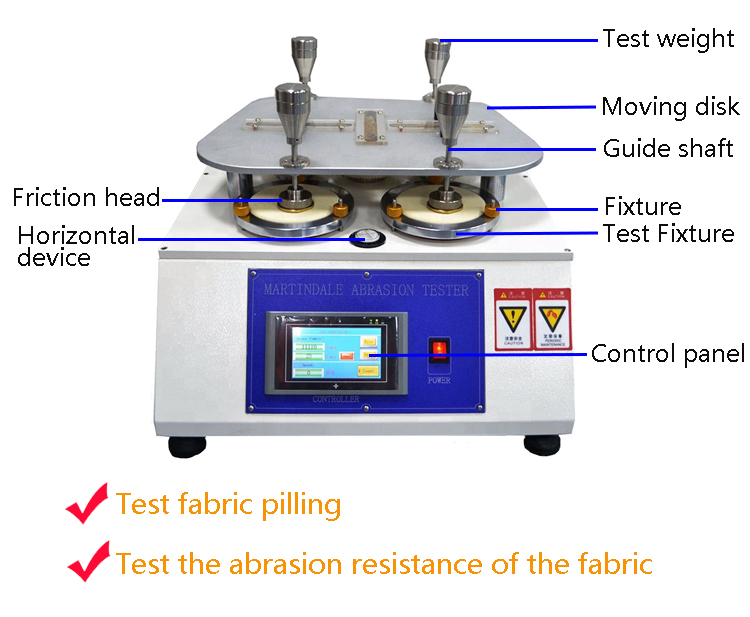

SATRA TM31 Fabric Martindale Abrasion Tester is used for testing the performance of the wearing resistance, abrasion, appearance change (pilling degree/class) of the textiles and membrane materials.
Meeting Standards: FZ/T20020/ ISO12945-2/ ISO12947/ ASTM/D4966/ ASTMD4970/ ASTMD3886/ JISL1096/ DIN53863/ DIN53865/ BS3424/ BS5690/ BS EN388/ BS EN530/ IWS Tm196/ TM112 M & S
Specifications:
|
Station number |
4 station (6, 8, 9 station optional) |
|
Count display |
a. Estimated counting:0~999999 times |
|
b. Total counting:0~999999 times |
|
|
Maximum dynamic range |
24±0.5mm, 60.5±0.5mm |
|
Weight of pressure thing |
a.Gripper:200±1g |
|
b. Cloth samples hammer:395±2g |
|
|
c. Furniture accessories sample hammer:594±2g |
|
|
d. Stainless steel butterfly piece:260±1g |
|
|
Effective friction diameter of grinding block |
A type: 200g (1.96N) friction head ¢ 28.8-0.084mm |
|
B type: 155g (1.52N) friction head ¢ 90-0.10mm |
|
|
The relative velocity of Gripper and the grinding station |
50-2r/min |
|
Weight of pressure hammer |
2385±10g |
|
Dimensions |
885mm×600mm×410mm(L×W×H) |
|
Weight |
150kg |
|
Power |
Ac220V,50Hz |
