Parameter:
|
Model |
33A |
155A |
|
Test method |
A. Direct counting method B. Detwisting and twisting method C. Three times back twist and twist method |
|
|
Range of measurement |
1~9999.9twist/10cm |
|
|
Untwist elongation range |
max 20mm |
|
|
Speed of rotation |
100~200r/min |
|
|
Preload tension |
0.5~171.5 cN |
|
|
Printer |
Without |
With Needle array printer |
|
Power |
AC220V 50Hz |
|
|
Dimension |
1080×275×216mm(L×W×H) |
|
|
Weight |
About 20kg |
|
Testing standards:
ASTM D1422 Standard Test Method for Twist in Single Spun Yarns by the Untwist-Retwist Method
ASTM D1423 Standard Test Method for Twist in Yarns by Direct-Counting
ISO 2061 17202 Textiles -- Determination of twist in yarns -- Direct counting method
BS 2085 Method of test for determination of twist in yarns, direct counting method
GB/T2543.1 GB/T2543.2 etc.
Main Structure:

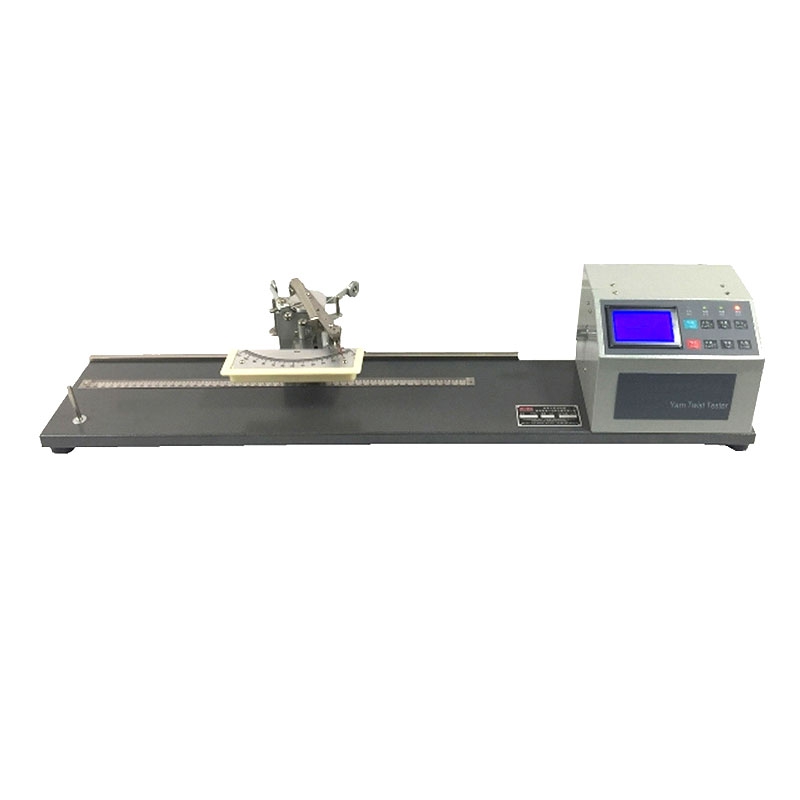

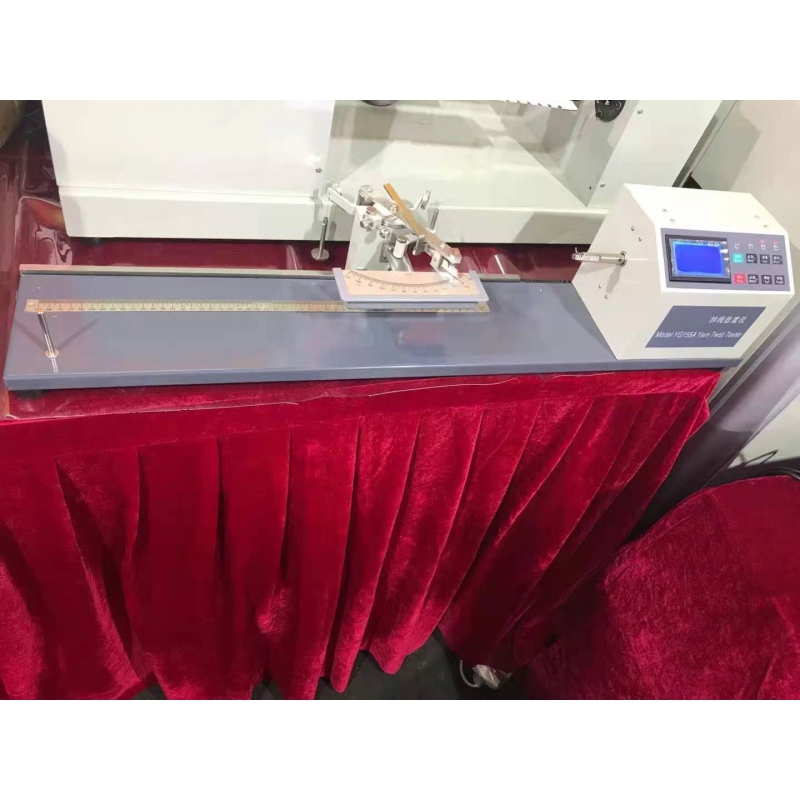

This yarn twist tester mainly consists of a control box, a tensioning mechanism, a yarn bobbin stand, a data processing system and other components.
The control box is provided with a right yarn gripper that is directly driven by a micro-motor, and all functional switches.
The tensioning mechanism is loaded with tension in a horizontal mechanical way and the tension can be varied indefinitely with weights in accordance with the requirements of the test method.
The yarn bobbin stand can be installed and adjusted freely by the user to meet test requirements.
The data processing system is mainly composed of a built-in computer, a display.
