Diameter of friction head |
Φ16mm±0.1mm (round) 19mm×25.4mm (square) |
|
Weight of friction head |
9N±0.2N |
|
Motor head stroke |
104mm±3mm |
|
Reciprocating speed |
60±3 times/min |
|
Thickness of test bench pad |
0.25mm (water-resistant fine sandpaper) |
|
Setting range of reciprocating times |
1~9999×100 |
|
Power supply |
AC 220V±10% 50HZ |
|
Machine power |
20W |
|
Dimensions |
750mm×200mm×200mm |
|
Weight |
21Kg |
|
Nylon brush:
|
Nylon fiber clusters: each cluster is composed of 16 nylon 1010 fibers with a diameter of 0.36mm and a fiber height of 10mm. The distance between clusters is 4 mm, and the width of brushing is 5.4 cm. |
Introduction:

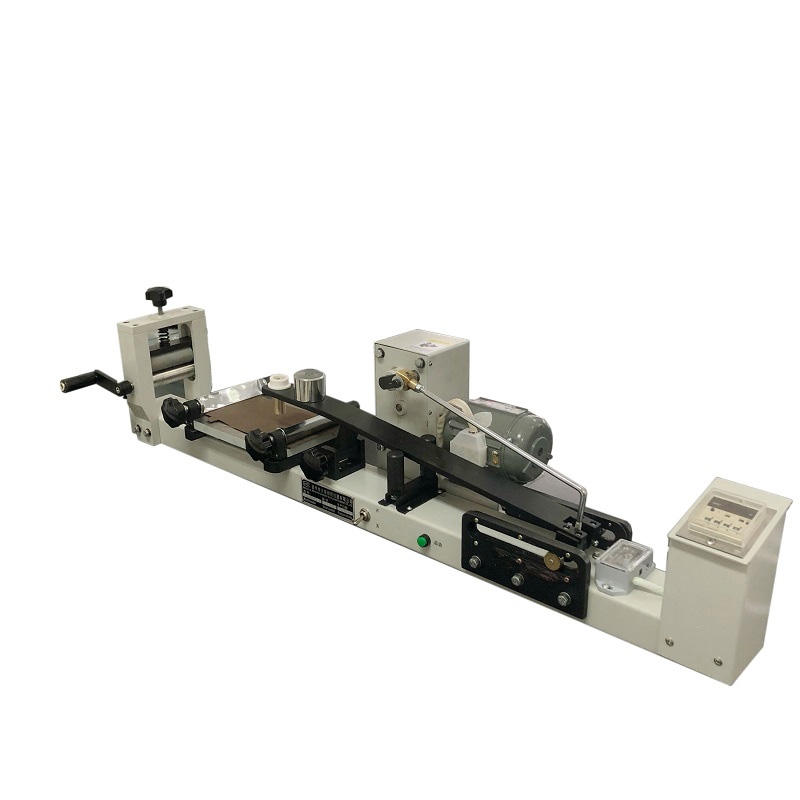

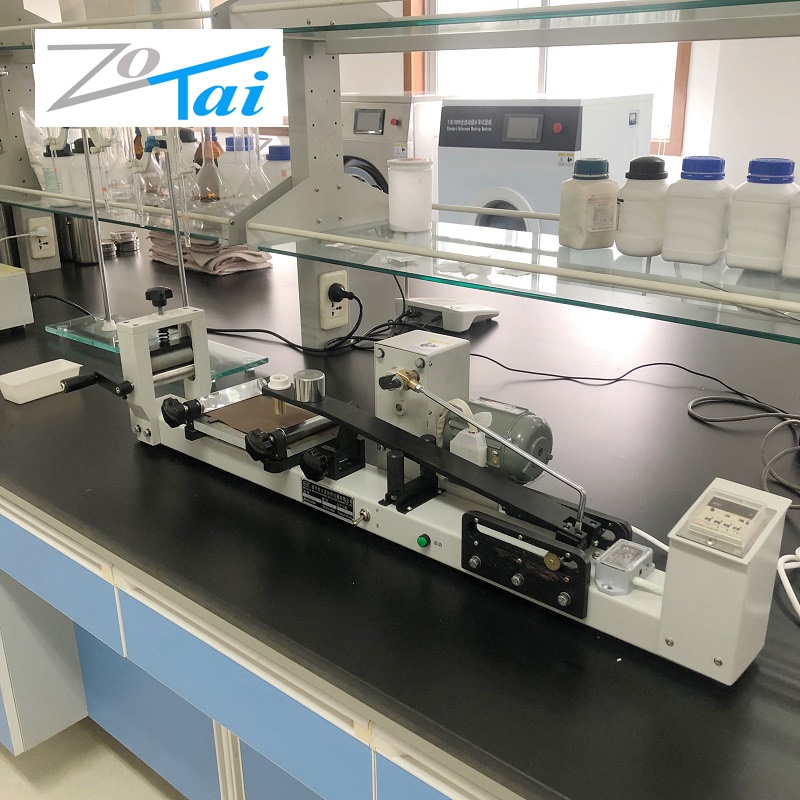

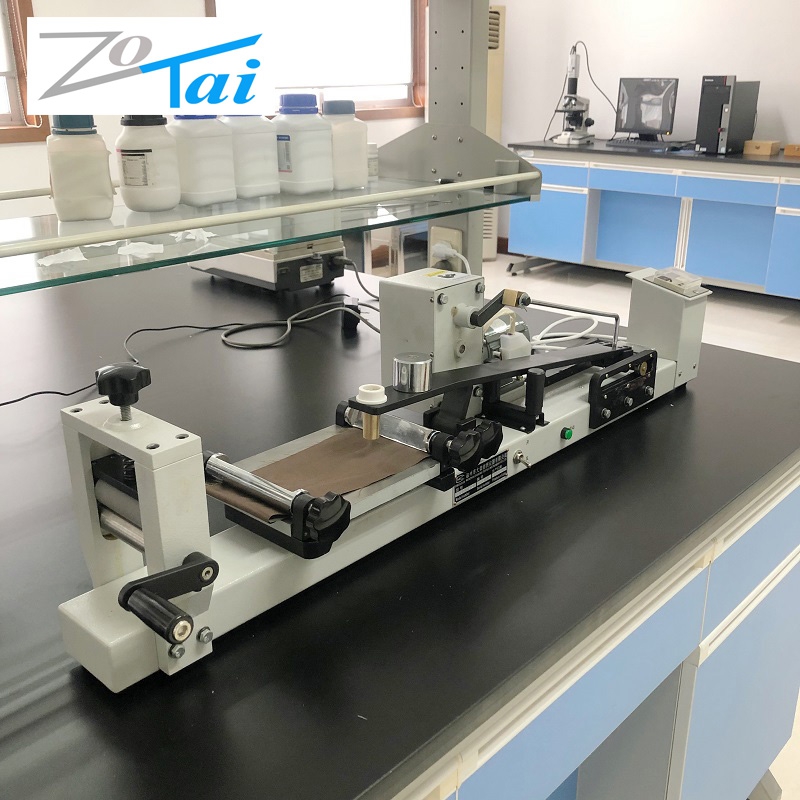

The Y571L dyeing friction color fastness meter is a reciprocating linear movement of a standard length with a standard weight friction head at a standard frequency. When the set number of times is reached, the motor automatically stops.
Application:
Mainly used in cotton, wool, linen, silk, knitting, printing and dyeing industries, as a test instrument for determining the color fastness test of various fabrics to dry and wet friction.
Standards: GB/T420, GB/T3920-2008.
