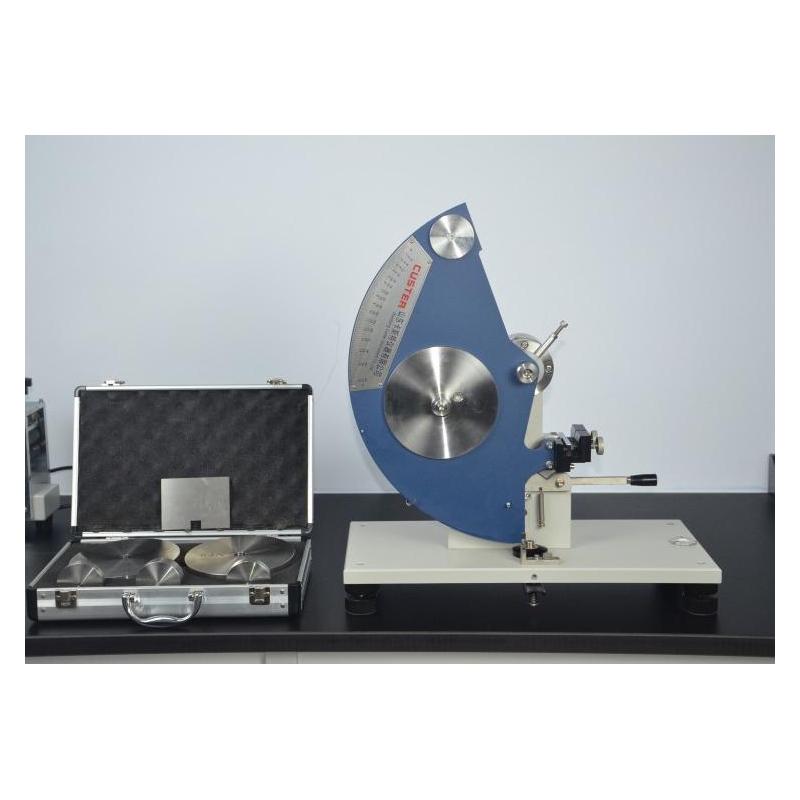

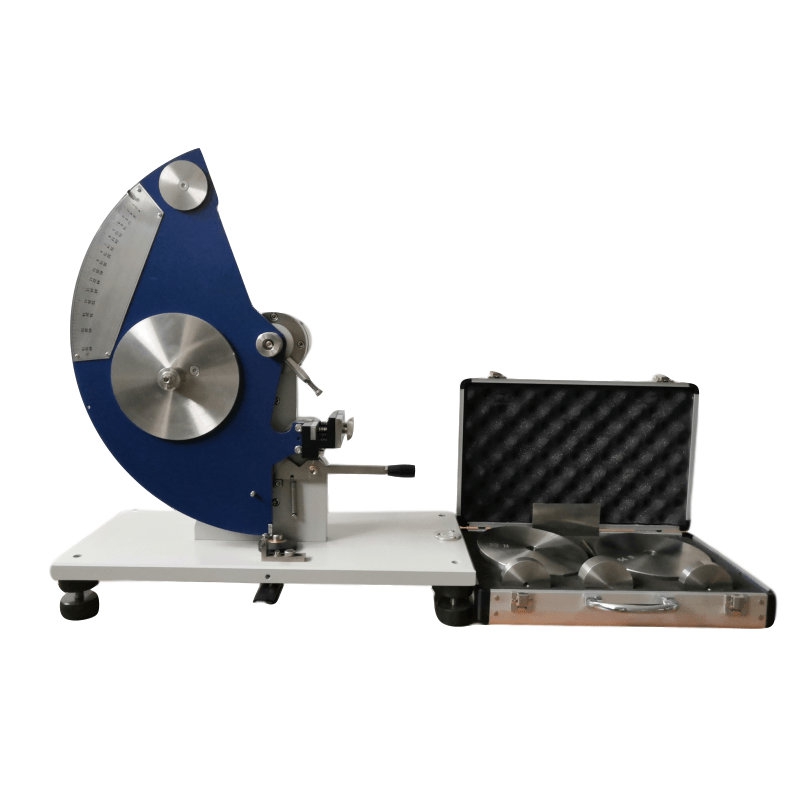

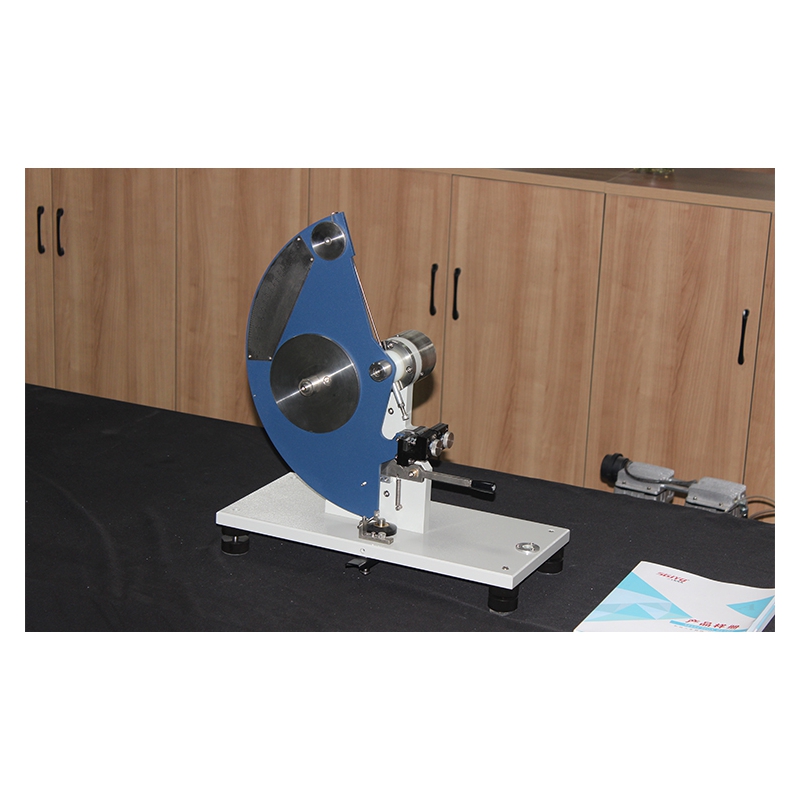

Fabric Elmendorf Tearing Bursting Strength Tester
Application:
It is used to measure the tear strength of various woven fabrics, and can also be used to measure the tear strength of paper, plastic cloth, film, electrical tape and metal foil.
Standard:
GB/T 3917.1-1997 "Textile fabric tear performance Part 1: Determination of tear strength, impact pendulum method" ASTM D1424/5734 ISO 1974/9290, etc.
Test mode: Elmendorf (Elmendorf) impact pendulum method
Technical Parameters:
|
Tear force range |

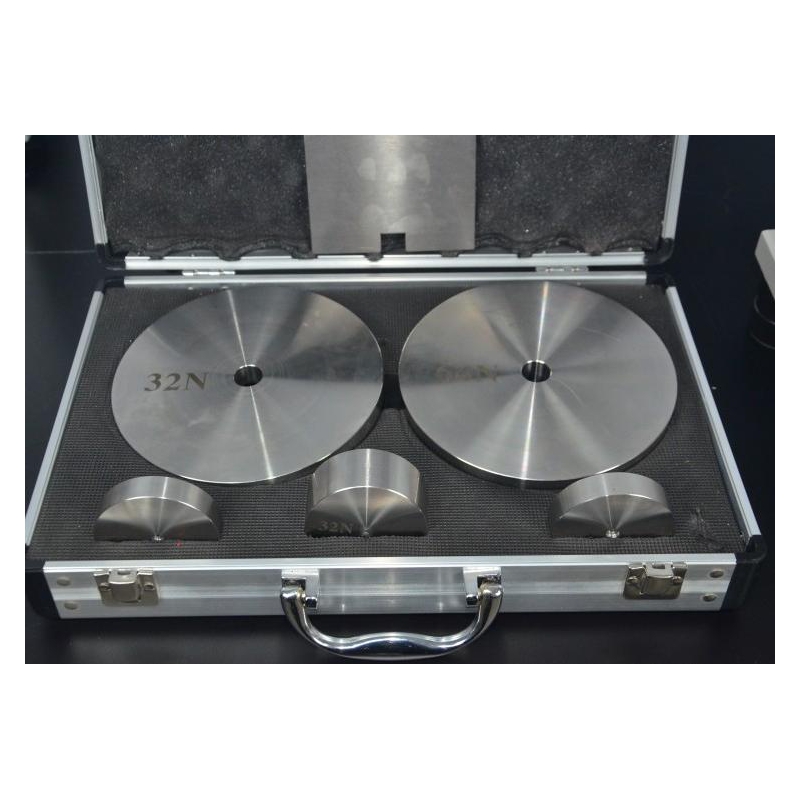

0~16N A: 0~32N (add small weight-increasing hammer A) B: 0~64N (with large weight-increasing hammer B) |
|
Tear length |
43mm |
|
Cutting line length |
20±0.2mm |
|
Sample size |
100(L)×63(W)mm |
|
Force measurement accuracy |
≤±1 division |
|
Dimensions |
400(L)×210(W)×395(H)mm |
|
Weight |
30Kg |
