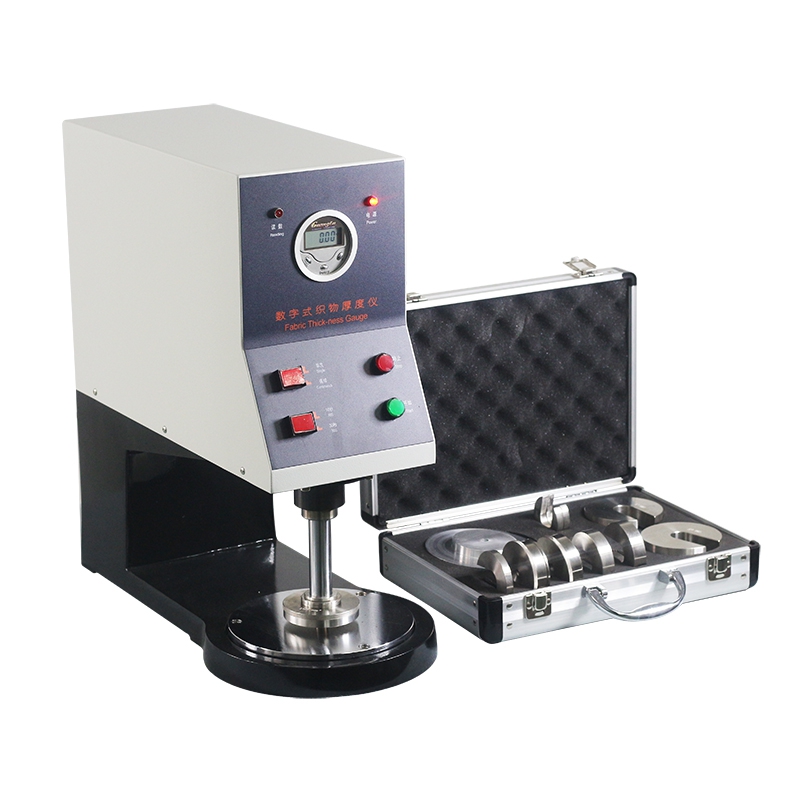

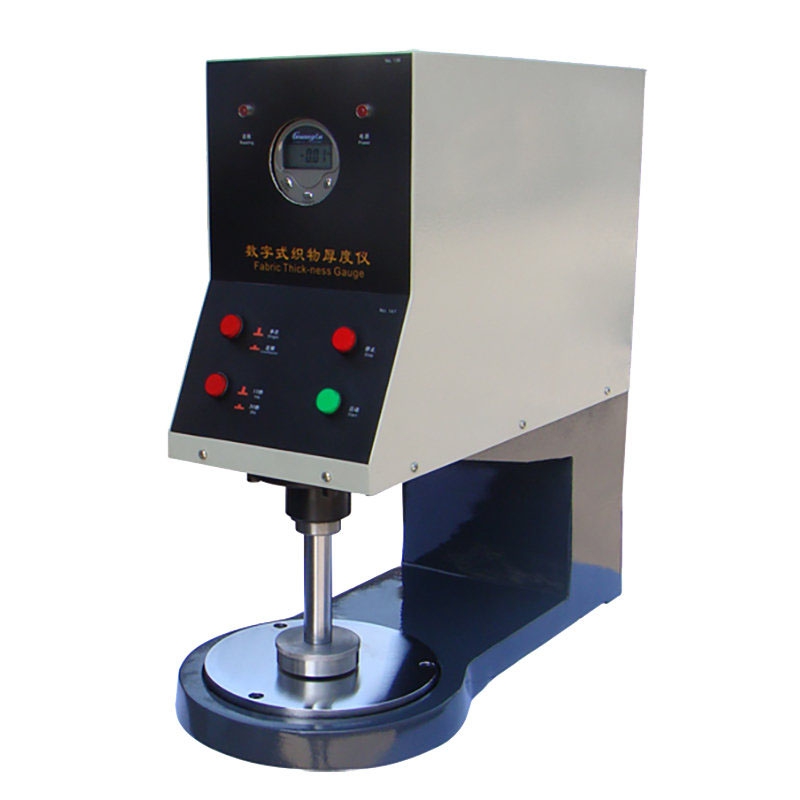

Digital Fabric Thickness Test Machine, Textile Thickness Tester
Application:
This fabric thickness tester is mainly used to measure the thickness of various textiles and textile products under different pressures, and can also be used to measure the thickness of other uniform thin materials.
Standard: ISO 5084, ISO 9073.2, ISO 9863, GB/T3820
Technical Parameters:
|
Range of test thickness |
0.01mm ~ 25.00mm |
|
Minimum division value |
0.01mm/0.001mm |
|

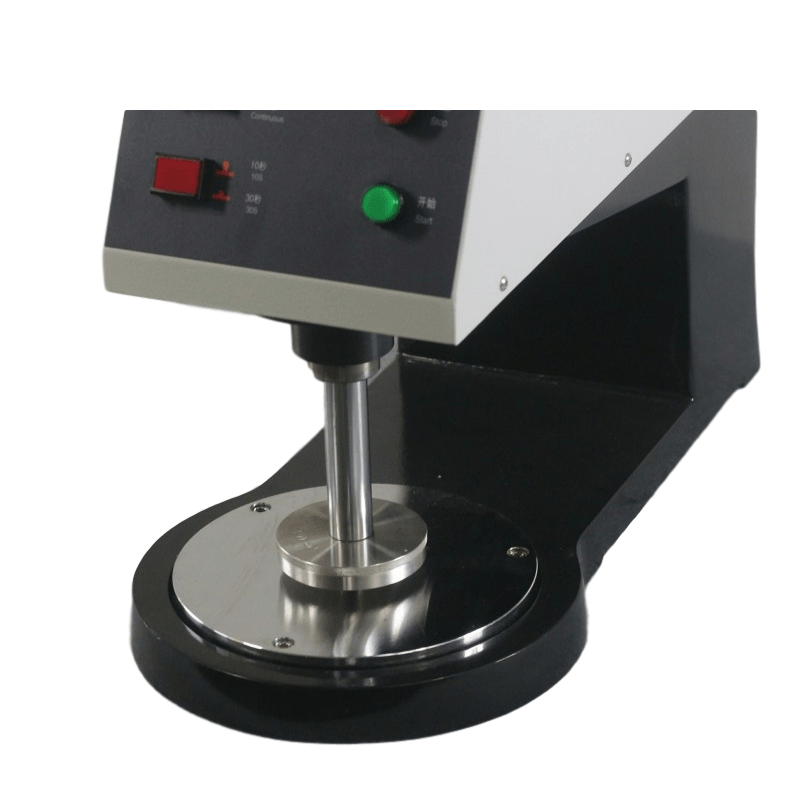

Diameter and area of the presser foot |
φ11.28mm, φ50.48mm,φ56.42mm ,φ112.84mm 100mm2, 2000mm2, 2500mm2, 10000mm2 |
|

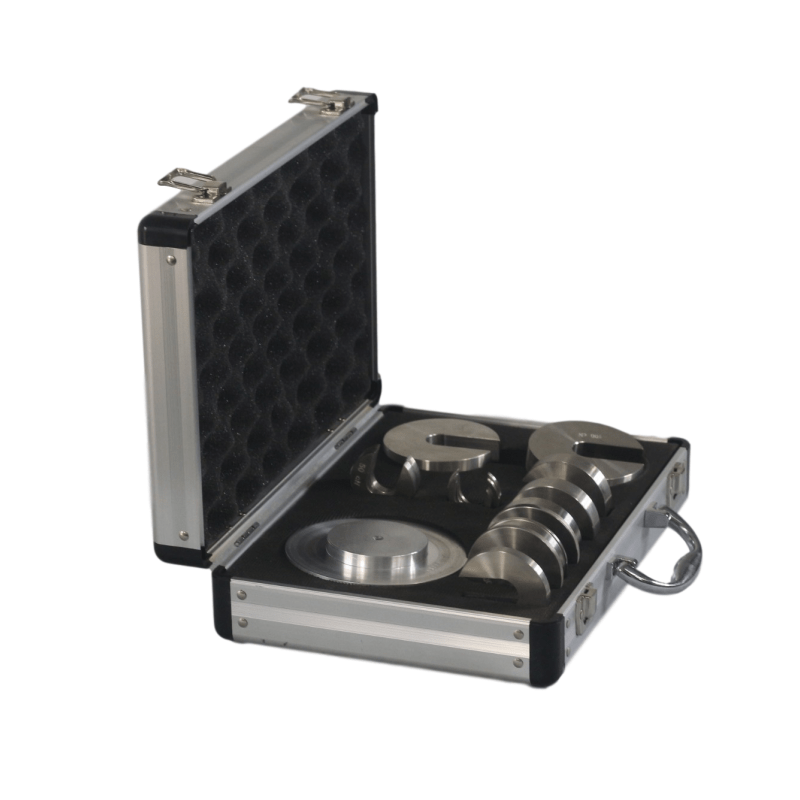

Weights |
5cN, 10cN, 50cN, 100cN, 200cN, 500cN |
|
Weighting time |
10s, 30s |
|
Power supply |
AC220V±10% 50Hz |
|
Net volume |
410mm×160mm×395mm |
|
Weight |
48kg |
|
Size |
580*530*390mm |
