Application:

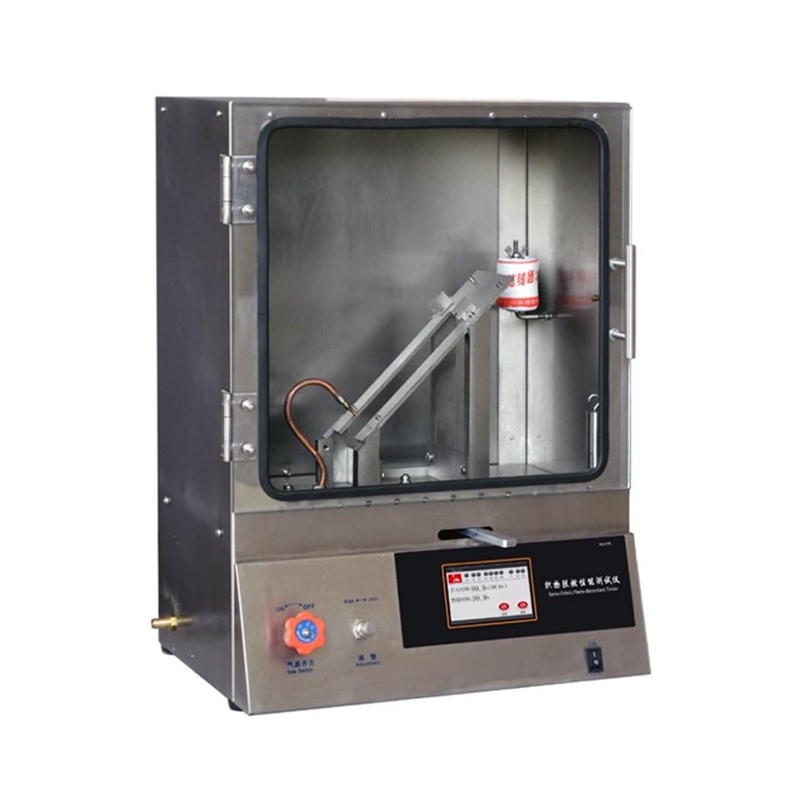

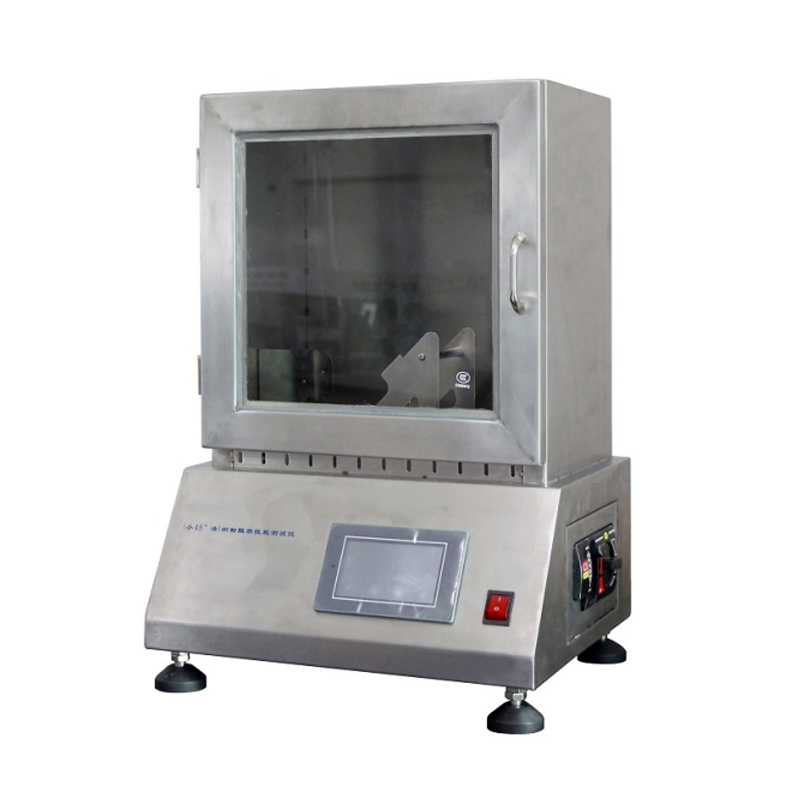

Fabric Flame Tester is for textiles and other products, the surface ignition method is used to determine the classification of the combustion performance in the direction of 45°, and the combustion rate of the test sample is determined.
Standards: GB/T14644
Technical Parameters:
|
Burning rate |
0~9999mm/min |
|
Timing range |
spread time 0.1~999.9s, accuracy 0.1s |
|
Warm-up time |
3~20s, accuracy 0.1s |
|
Ignition time |
0~99s, precision 0.1s |
|
Diameter of igniter nozzle |
NO.4½ syringe needle |
|
Sample holder size |
inner frame 152×38mm |
|
Igniter gas |
propane or butane; pressure 17.2±1.7kPa can be adjusted |
|
Flame height |
16mm can be adjusted |
|
Dimensions |
460×300×570mm |
|
Power |
AC220V 50Hz 100W |
|
Weight |
25kg |
Instrument characteristics:
1. The appearance of all stainless steel materials is used to prevent smoke.
2. It adopts industrial color touch screen display control, durable, convenient and simple to operate.
3. The motor drives the ignition mechanism, and the automatic ignition operation is convenient.
4. The flow meter adjusts the flame height without the need for constant gas pressure.
5. The ignition time of the resistance wire of the instrument can be adjusted to ensure ignition under different environments.
6. Automatically judge the burning rate after burning for a certain distance.
