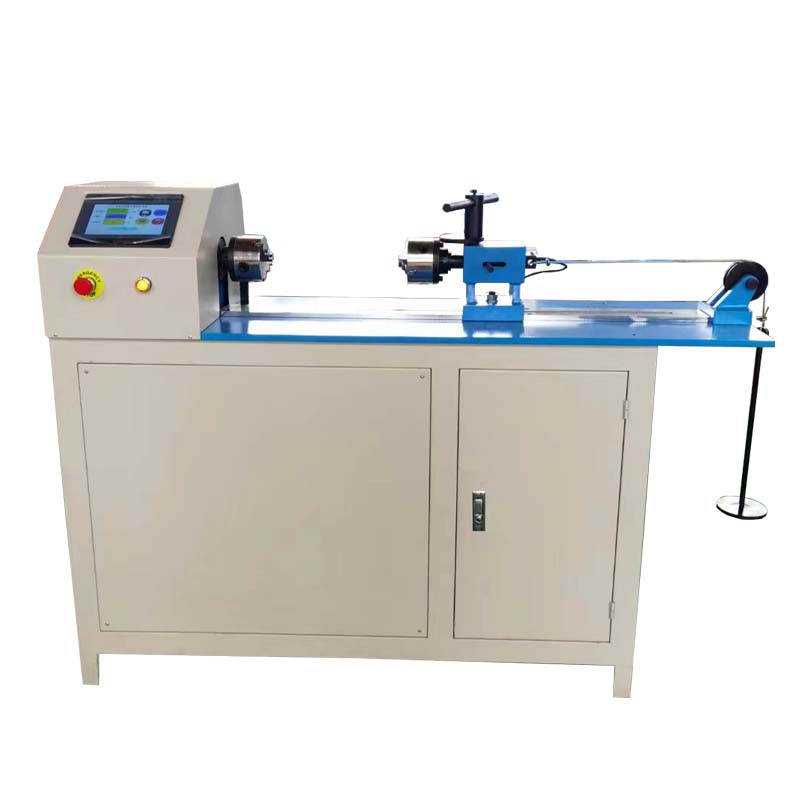

Wire Winding Torsion Testing Machine
Purpose:
It is mainly used for winding and torsion test of aluminum wire, steel wire and copper rod. It is a necessary testing tool for steel core aluminum strand manufacturers.
Applicable standards:
GB4909.4 "Bare wire test method R26; torsion test"
GB4909.7 "Bare wire test method R26; Winding test"
Technical parameters:
Purpose:
It is mainly used for winding and torsion test of aluminum wire, steel wire and copper rod. It is a necessary testing tool for steel core aluminum strand manufacturers.
Applicable standards:
GB4909.4 "Bare wire test method R26; torsion test"
GB4909.7 "Bare wire test method R26; Winding test"
Technical parameters:
|
Twist |
|
|
Overall size |
1440mm×390mm×1080mm |
|
Input voltage |
380V |
|
Input power |
1.5KW |
|
Torsion adjustable range |
10 RPM/min 30 RPM/min 60 RPM/min |
|
Torsion range |
(1) Copper rod: ￠12mm (2) Aluminum rod: ￠12mm (3) Steel wire: ￠6mm |
|
Wind |
|
|
Test diameter |
Aluminum wire:￠1.25mm-￠6.0mm Steel wire:￠1.25mm-￠3.8mm Copper wire:￠0.3mm-￠8.0mm |
|
Mandrel diameter |
￠1.25mm-￠19mm |
|
Right shaft head displacement distance |
≥40mm |
|
Spindle speed |
10 RPM |
