Application area

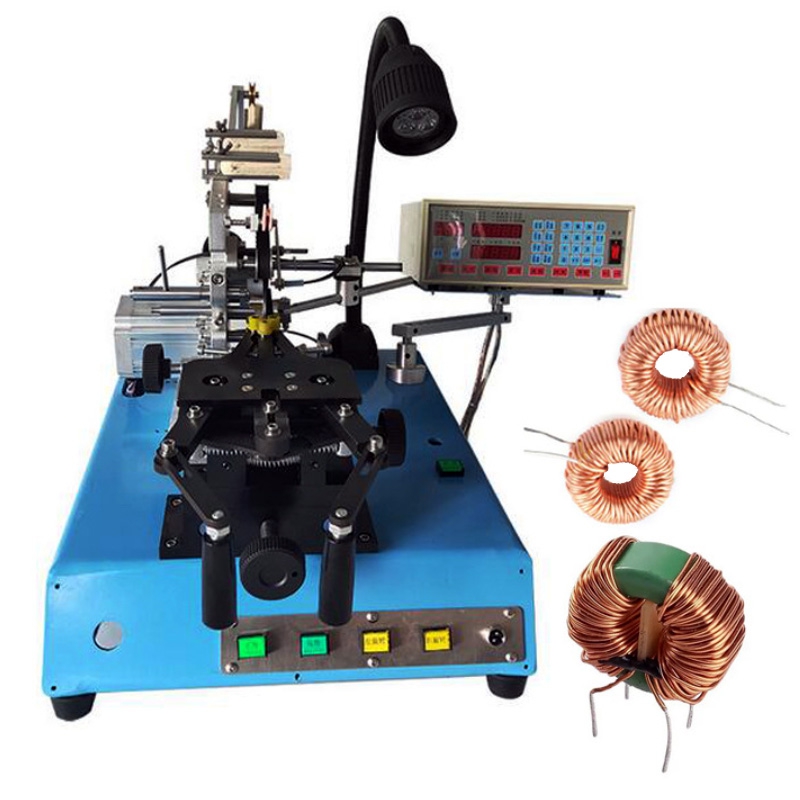

Applied to special products such as switchable transformers, large (current, voltage) transformers, three-phase current transformers, and various ring inductors.
Technical parameter
|
Suitable winding diameter |
0.15~1.8mm (1.0 double winding can be customized) |
|
Step sequence memory capacity |
1000 sets |
|
Number of coils |
1~9999T |
|
Storage loop width |
5~15mm (custom) |
|
Winding motor DC brushless |
Winding motor DC brushless |
|
The maximum winding speed |
1200 rpm (Custom) |
|
Power supply |
220V/50HZ |
|
Weight |
65Kg |
|
Machine size |
1050*600*700mm |
Features
a. This model adopts a CNC digital brushless control system, which is easy to maintain and operate, with a reasonable structure. It is made of high-quality steel and has good weight and stability.
b. Using brushless drive mode, low noise, equipped with constant current chopper drive mode for wiring, fast and precise follow-up, excellent performance, long service life, suitable for various working environments.
c. It can extract and store 1000 step sequences, and can set parameters such as number of turns, outer diameter, inner diameter, height, angle, wire diameter, direction, speed, etc. It has functions such as accurate counting, power outage memory, overload and overcurrent protection, and strong anti-interference.
