Summary:

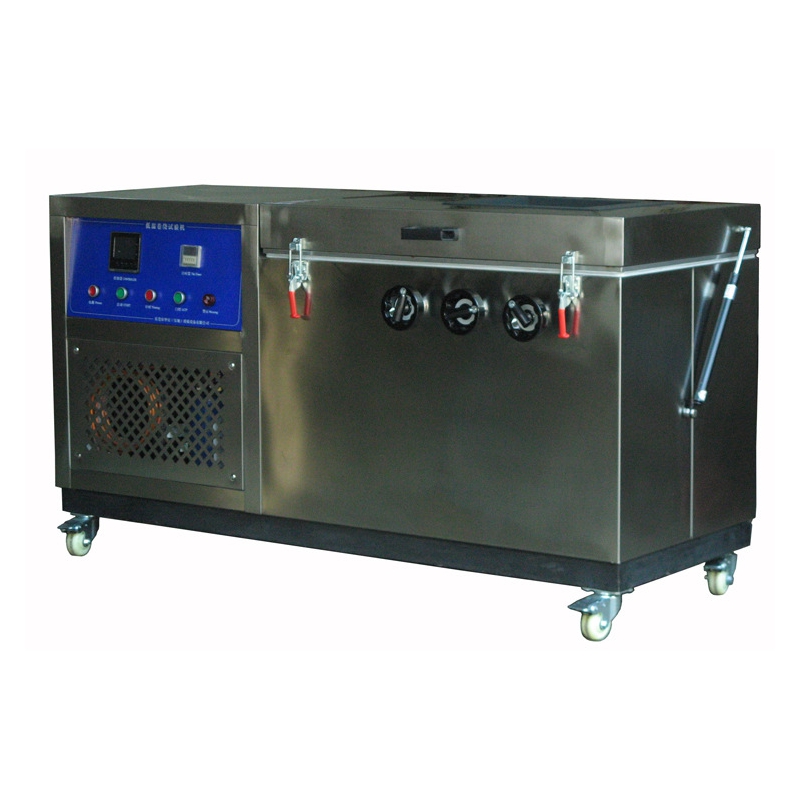

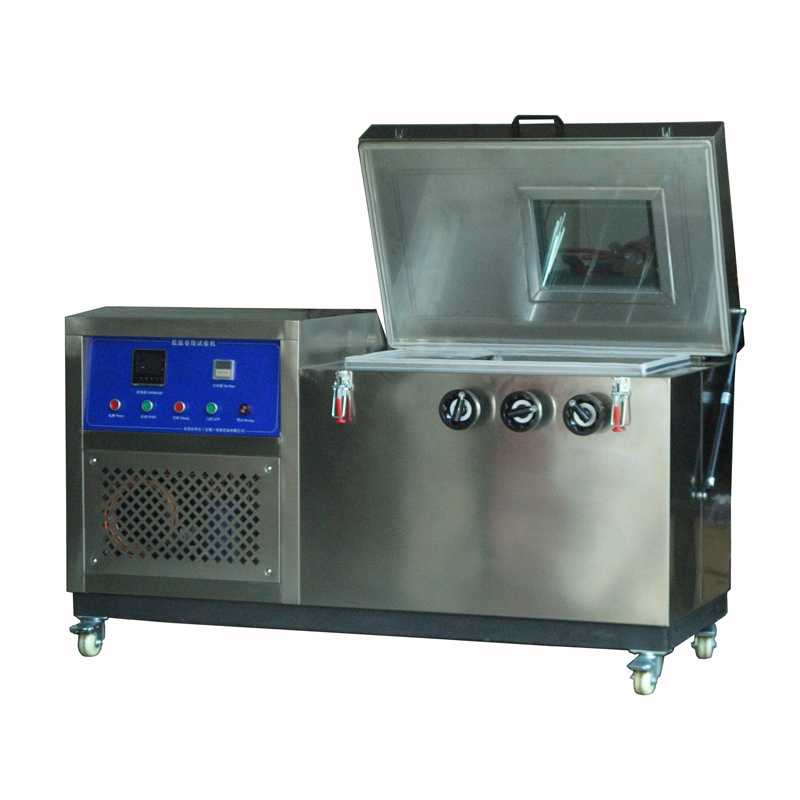

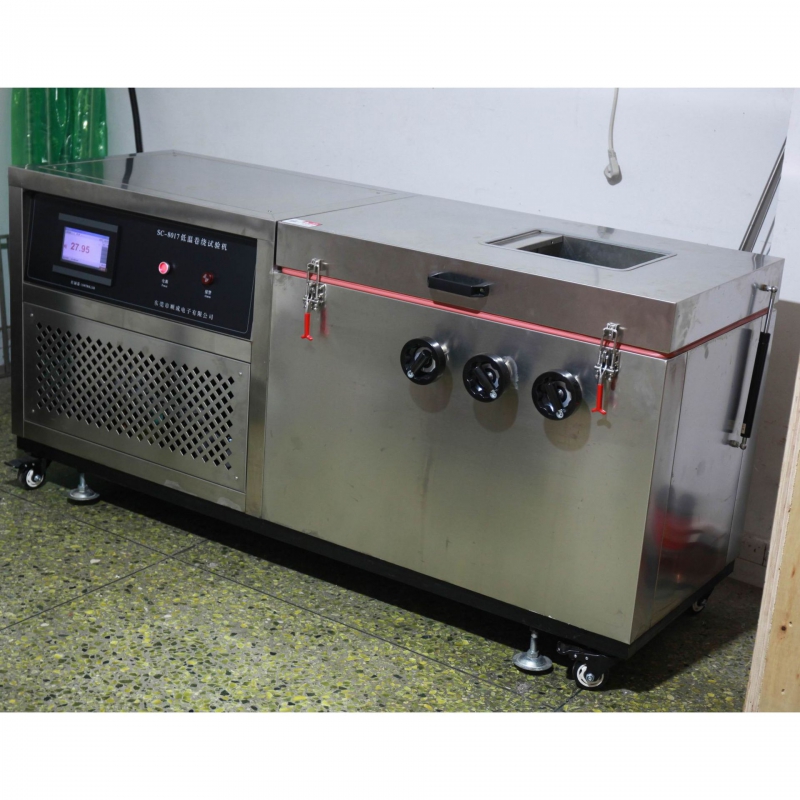

Used for various low-temperature tests of wires, cables, and electrical accessories, and equipped with low-temperature winding test devices for low-temperature winding tests.
Execution standards:
Complies with UL62, UL758, UL2556, IEC60811-1-4, GB/T2951.14, JIS C3005 wire standards, and the temperature is executed according to the technical conditions of GB10589 low-temperature test chamber.
Parameter:
|
Temperature range |
RT~-60 ℃ (or according to customer requirements) |
|
Resolution |
0.1 ℃ |
|
Temperature uniformity |
≤ 2 ℃ |
|
Temperature fluctuation |
± 0.2 ℃ |
|
Time range |
0-9999S, M, H adjustable |
|
Winding rod diameter |
Φ 6.5, 12.7, 19mm (or according to customer requirements) |
|
Load capacity |
1KG, 2KG, and 2KG |
|
Power supply |
220V 50HZ |
|
Inner box size |
500W × 400D × 500H mm |
|
Dimensions |
168W × 76D × 88H cm |
|
Weight |
200KG |
