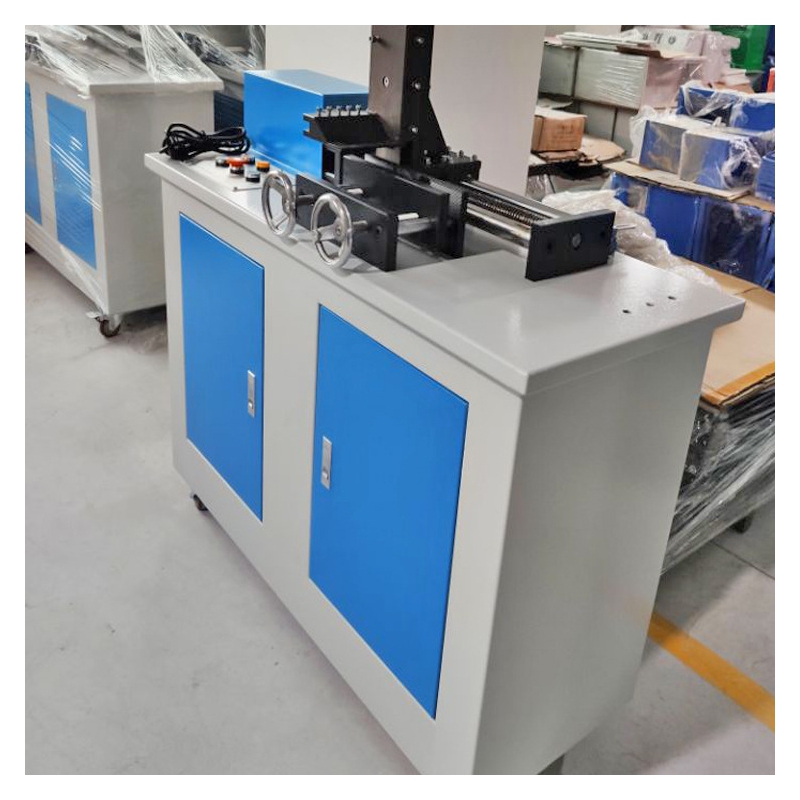

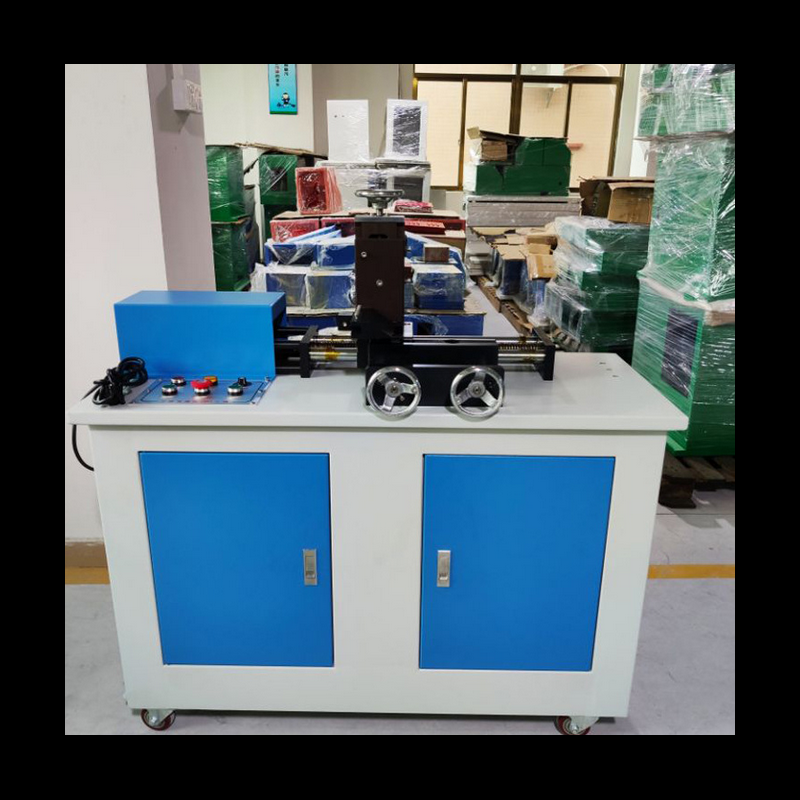

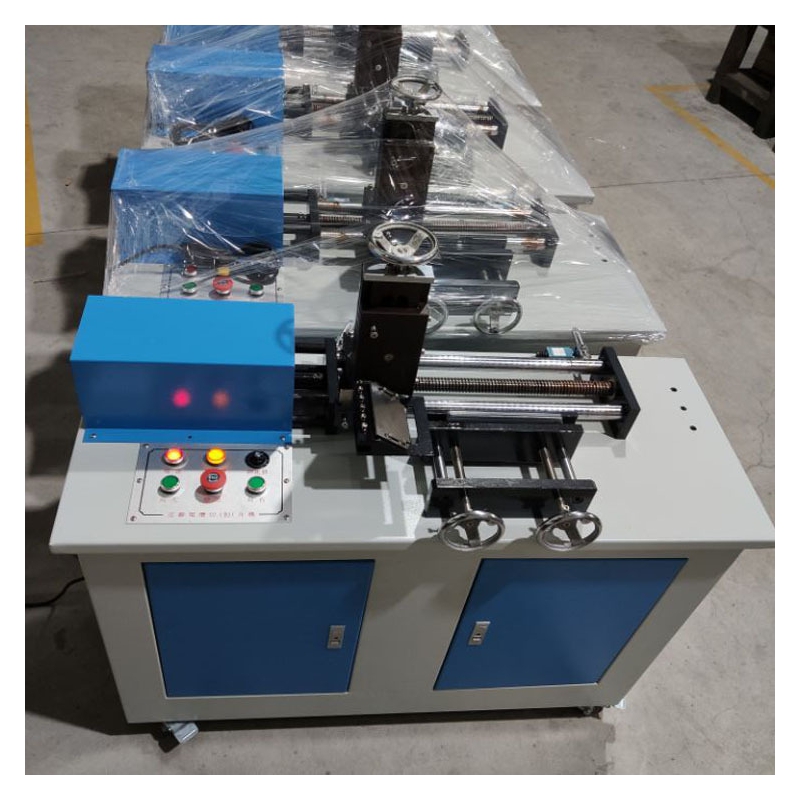

Wire and Cable Slicing Skewing Machine is used to reduce the thickness of XLPe sheet to prepare final sample sheet of up to 0.8 mm thickness for testing.
The machine consists of two parallel rollers with positive drive and a blade in the front so that the sample passes through the rollers and is sliced by the blade. The distance between the roller and the blade can be manually adjusted such that the total thickness of the sample can be adjusted.
Specifications
|
The maximum working length |
400mm |
|
Cutting thickness range |
0.5 ~ 2.0mm (scale index: 1mm) |
|
Can be cut circular cross-section test piece |
Φ10 ~ 40mm (optional: Φ160mm fixture plate) |
|
Cutting speed |
0.1 ~ 330mm / min, adjustable; factory, the fixed speed of about 150mm / min |
|
Cutting method |
the specimen fixed, the blade horizontal movement; knife up and down adjustable, the maximum range of about 60mm, according to scale, manual adjustment |
|
Cutting tool |
in the broken knife and cross-cutting knife, a random matching 1, sharp level |
|
Electric drive |
import exchange speed motor, 0.20kw |
|
Power |
AC 220V / 50Hz |
