Application:

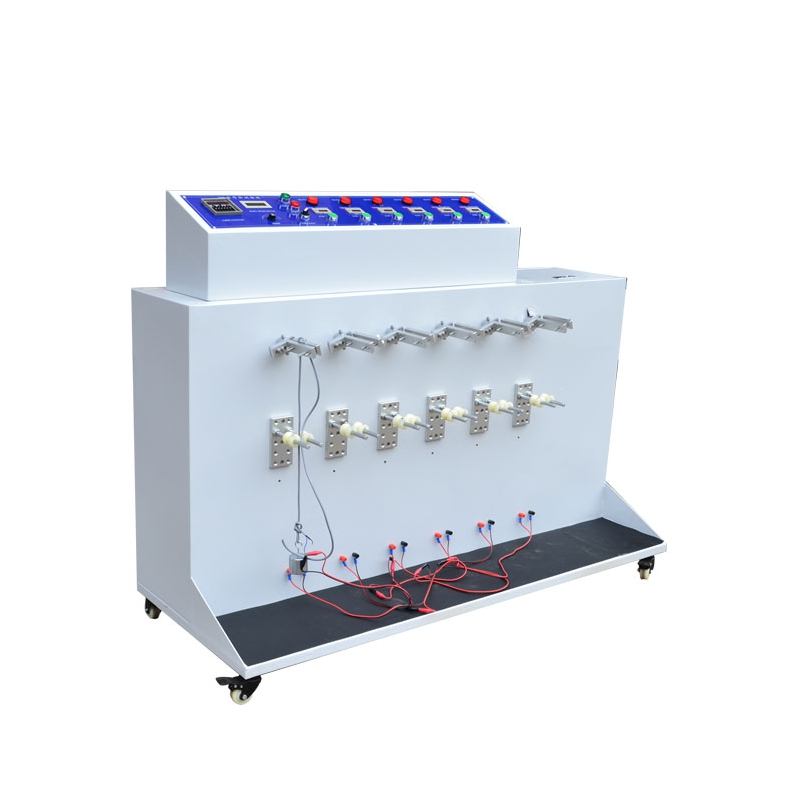

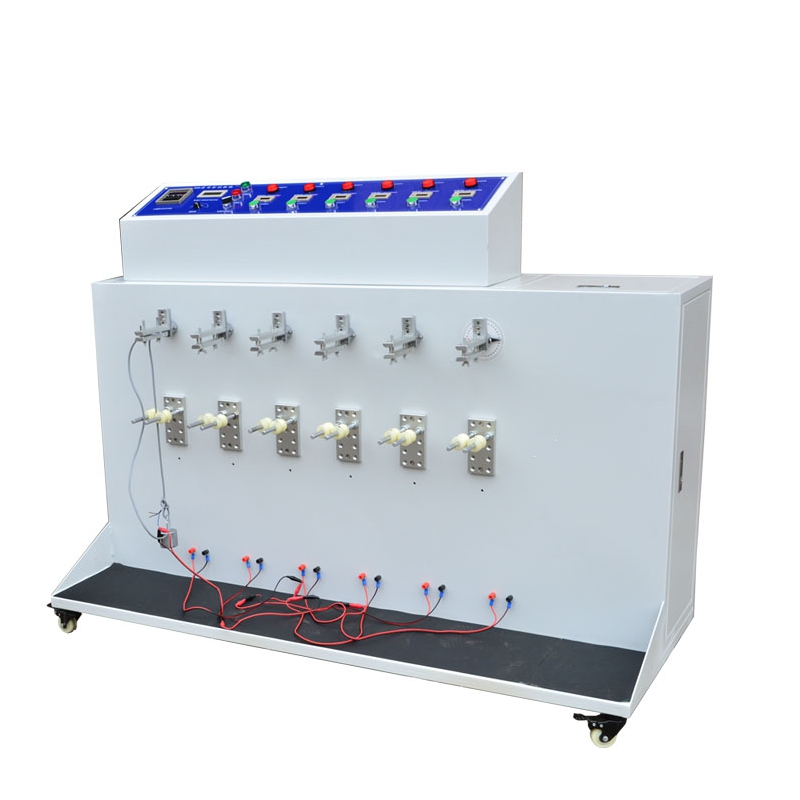

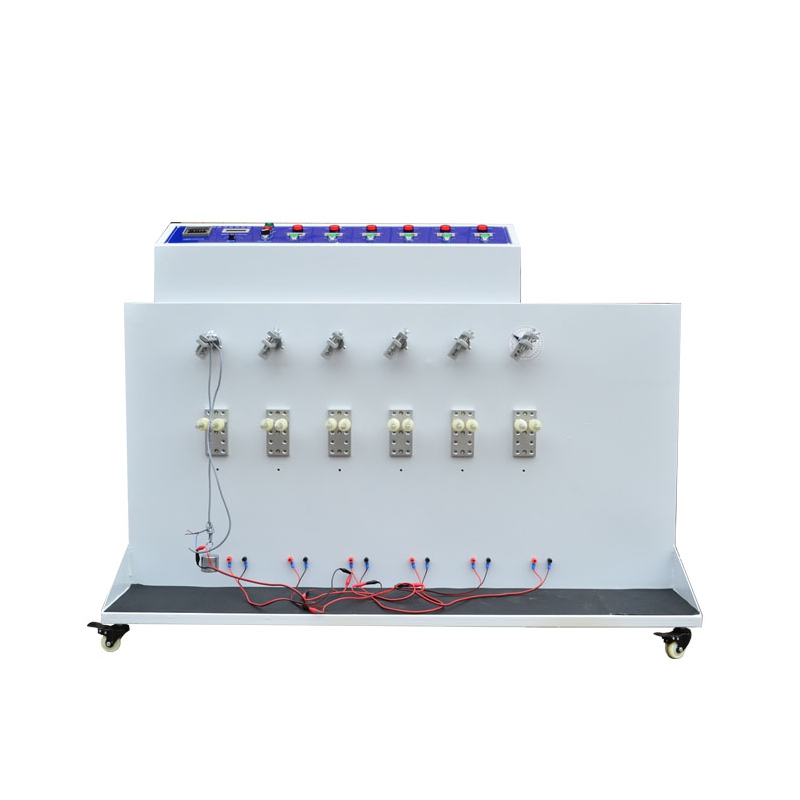

The Wire Flexibility Test Machine meets the requirements of UL817 and other relevant standards "general safety requirements for flexible cord components and power cord". The wire rod rocking tester is applicable to the bending test of power lines and DC lines by relevant manufacturers and quality inspection departments.
The wire swing tester is used to test the folding resistance and performance of wires, cables and various products at a certain speed, angle, weight and times.
Corresponding standard: UL817,CSA222,CCC,VDE,GB2099.1,IEC884-1,SAA
Specification:
|
Test station |
6 sets |
|
Bending angle |
10 °~360 ° adjustable |
|
Bending speed |
10-60 times / min adjustable |
|
Counter |
6pcs counter individually |
|
Load |
50g,100g,200g,300g,500g (6 pcs per each) |
|
Bend times |
0-99999 times |
|
Weight |
100kg |
|
Power |
95w |
|
Power supply |
AC 220v/50hz |
|
Dimension (WxDxH) |
1200x600x750mm |
