Product Introduction:

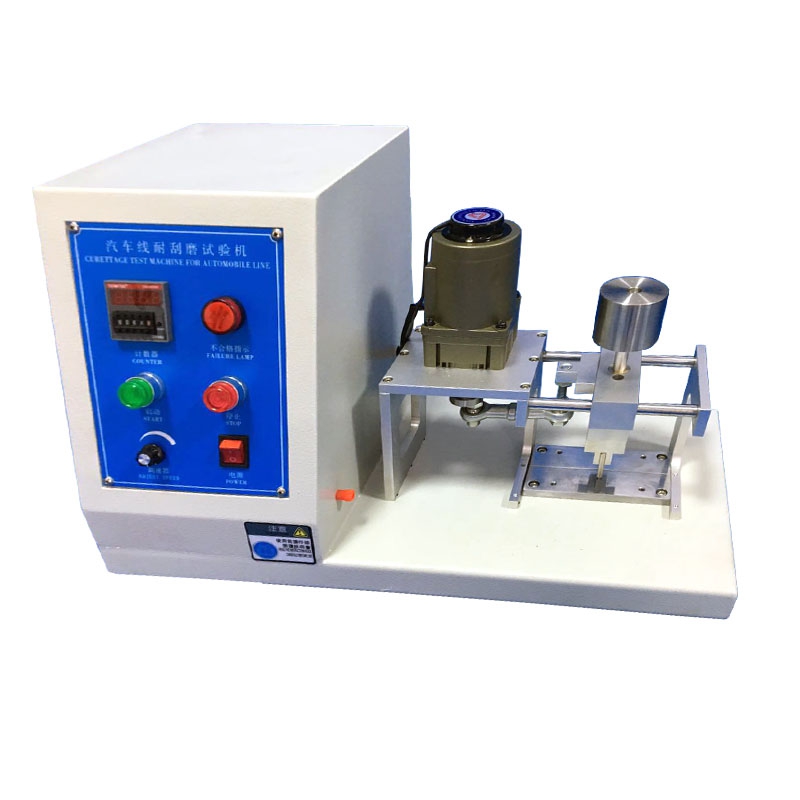

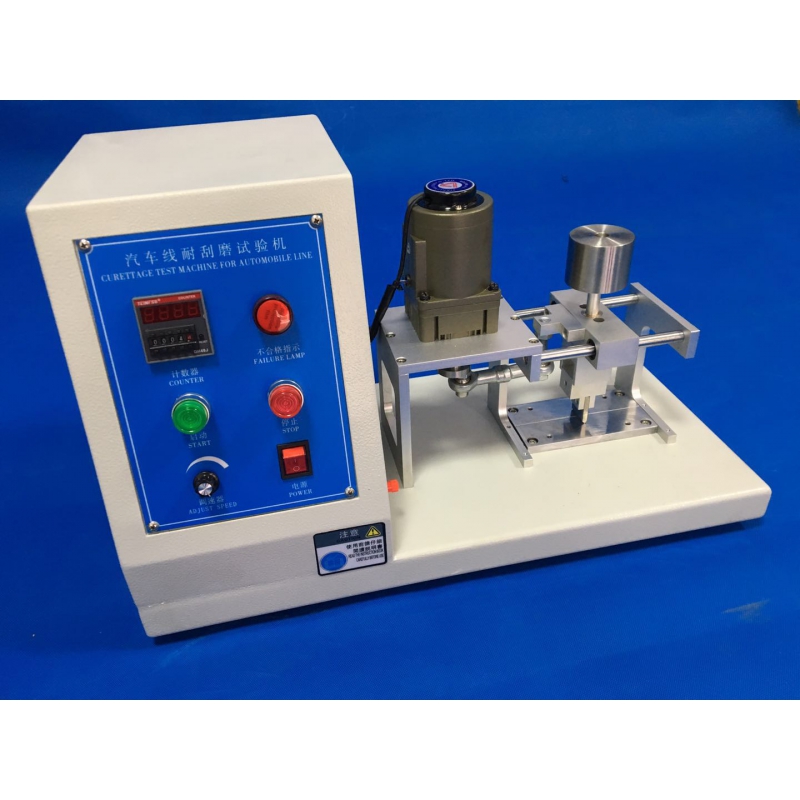

Wire and Cable Insulation Scratch Tester is a device for scraping the insulating surface of automobile wire. The machine grinds the insulation surface reciprocating along the sample axis, and stops automatically when the scraper grinds through the insulation contact conductor.
Standard:
ISO6722, JASO D611, DIN72551, VW60306
Specification:
|
Scraping head stroke |
10-20mm |
|
Scraping length |
15.5mm |
|
Scraping speed |
50-60 times/minute (one round trip) |
|
Scraper angle |
90 degrees |
|
Scraper |
R=0.125 |
|
The force of scraping and grinding (equipped with weights) |
500g, 700g, and 1000g each |
|
Scraping and grinding count |
1~99999 times can be set arbitrarily |
|
Control part |
composed of counting, starting, stopping, speed regulation, and power switch functions |
|
Control box |
electrostatic baking paint |
|
transmission mechanism |
electroplated after precision machining |
|
Weighting method |
weight weighting |
