Application:

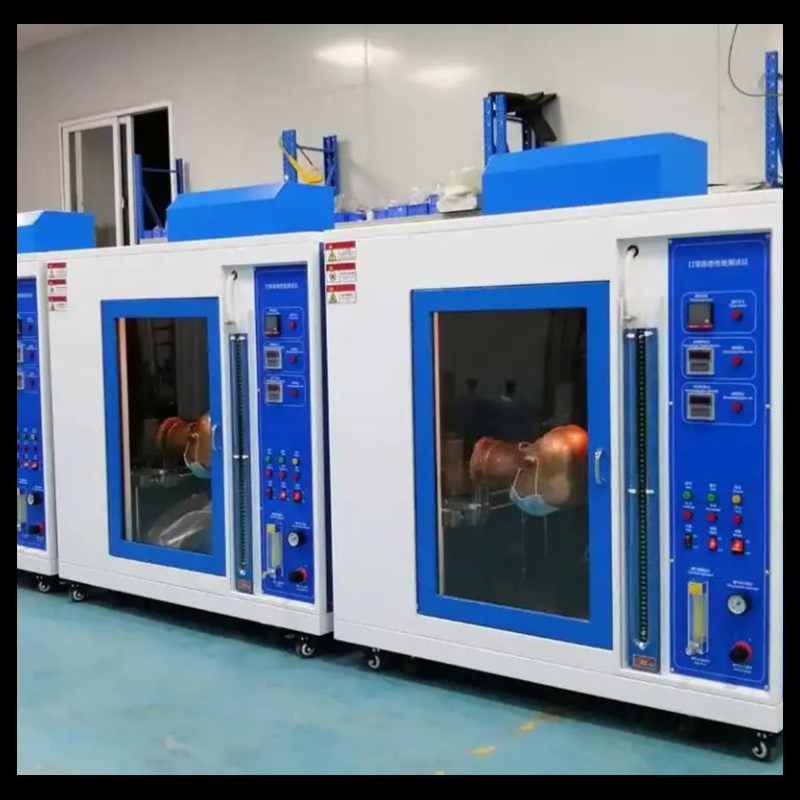

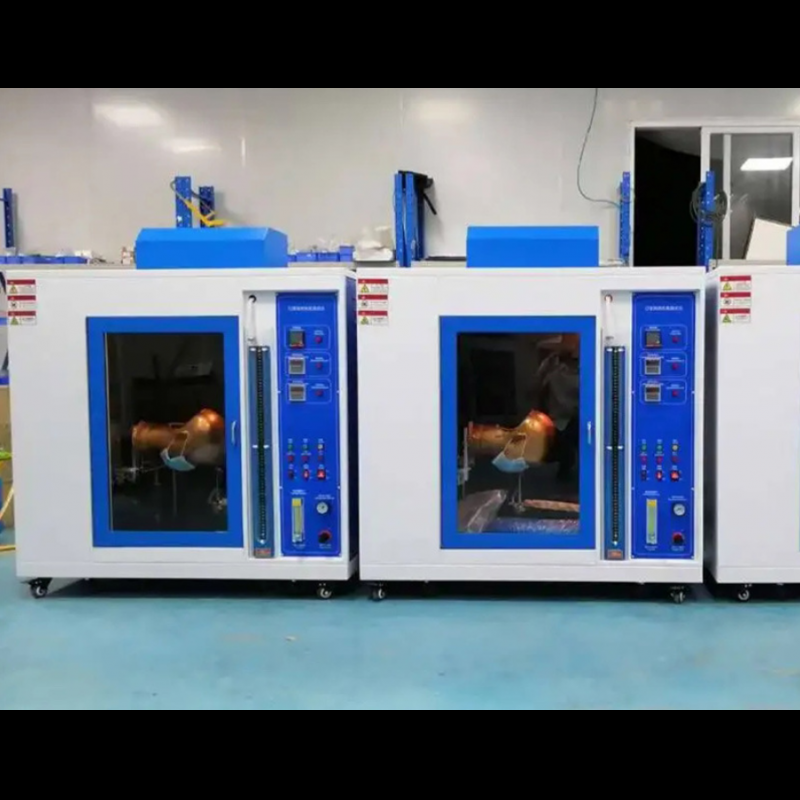

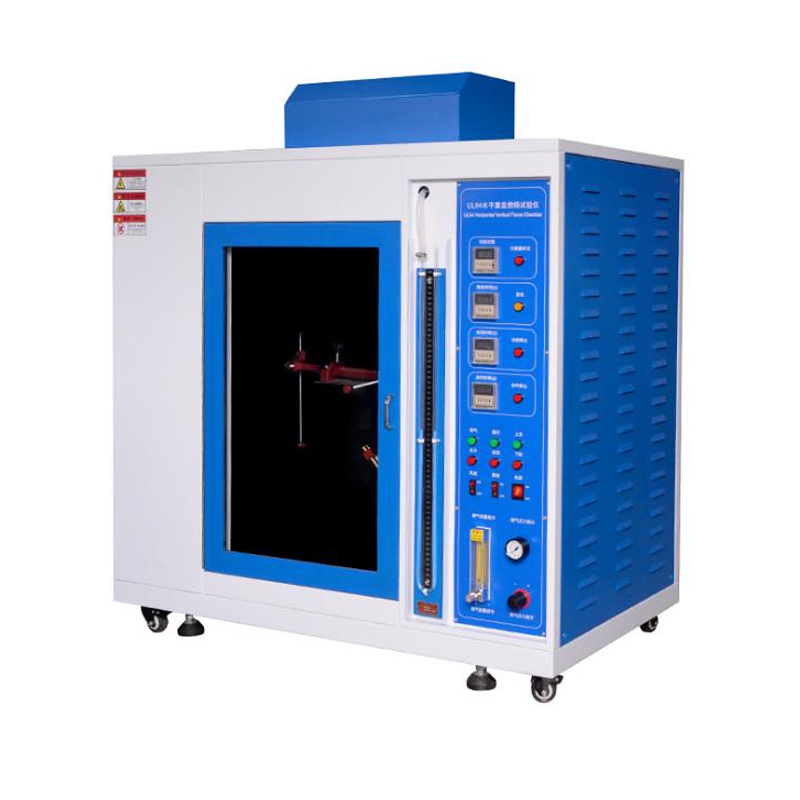

UL94 Wire and Cable Horizontal Vertical Flame Tester is applicable to test and assess the burning characteristics of plastic material is according to the American UL94 standard equipment and instruments parts with plastic material flammability test of relative clauses specified in the design and manufacturing, plastic parts of equipment and utensils horizontal, vertical flammability test, and equipped with gas flowmeter, adjust the flame size, adopts motor driven method, simple and safe operation.This instrument can be used to assess the flammability of materials or foam plastics such as V- 0, v-1, v-2, HB, 5V, HF- 1, HF- 2, HBF.
Test standard:
UL94 fire test
GBT2408-2008: determination of plastic combustion performance and vertical method
IEC 60695-11-10 fire prevention test
Technical parameters:
| Contents | 0.5 cubic meter, glass observation door |
| Timer | the imported timer is adjustable within the range of 0 ~ 99 minutes, with a precision of plus or minus 0.1 seconds. The combustion time can be set and the combustion duration can be recorded |
| Casting time | 0 ~ 99 minutes 99 seconds can be set |
| Residual flame time | 0 ~ 99 minutes 99 seconds can be set |
| Afterburn time | 0 ~ 99 minutes 99 seconds can be set |
| Test gas | more than 98% methane /37MJ/m3 natural gas (gas also available) |
| Burning Angle | 20 °, 45 °, 90 ° (0 °) is adjustable |
| Size parameters of the burners are | imported lamp itself, nozzle Ø 9.5 + / - 0.3 mm, inner diameter nozzle effective length to 100 + 10 mm, have air conditioning |
| Flame height | the standard requirement can be adjusted from 20mm to 175mm |
| Flow meter | adopt 105ml/min standard |
| Product features | other configurations include lighting fixtures, exhaust gas installations, gas flow regulating valves, gas pressure gauges, gas pressure regulating valves, gas flow meters, gas u-type pressure gauges and sample fixtures |
| Power supply | AC 220V, 50Hz |
