About Lab Rubber Mould Vulcanizer Machine

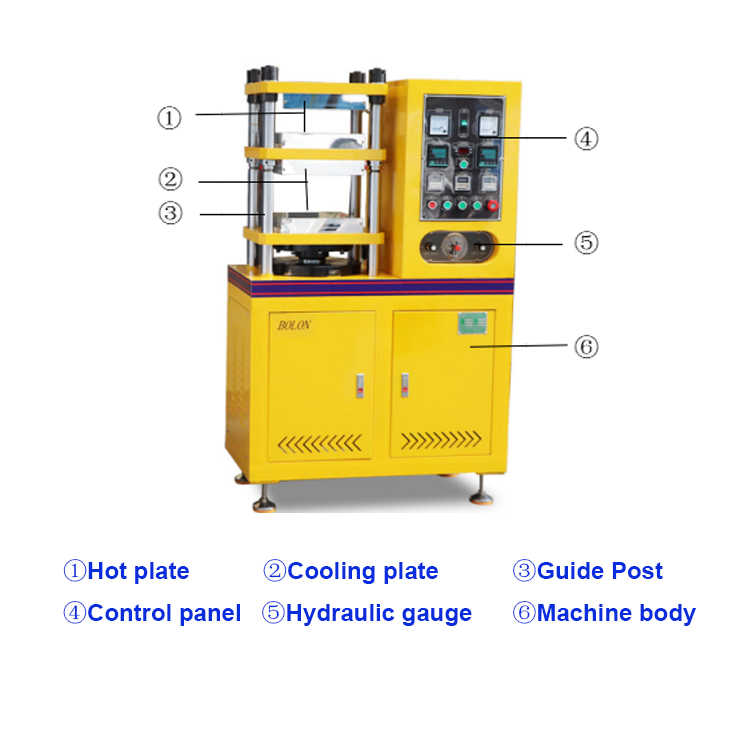

This vulcanizer uses Mobil 32# antifreeze hydraulic oil with a maximum pressure of 30 tons. The main body is composed of a molding mold and a precision guide column. It is divided into a frame structure of upper and lower double-layer templates. The upper template is heated and the lower template is cooled. High temperature material, the surface is deep-layered carbonization, hard chromium treatment and other processes, high corrosion resistance and hardness. When the product is vulcanized and formed, the oil pump motor stops working, with automatic pressure compensation and shutdown delay to maintain pressure. The deflation time and number of times, pressure and temperature can be set arbitrarily, manual and automatic working modes, easy to operate and reliable durable.
Parameters:
|
Capacity |
10T,20T,30T,50T |
|
Temp. Range |
Room temp. ~300℃ |
|
Controller |
Digital |
|
Temperature accuracy |
± 2 ° C |
|
Heating method |
electric heating tube |
|
Platen size |
300 × 300 × 40mm (or customize) |
|
Platen distance |
80mm |
|
Plate material |
SKD chrome molybdenum alloy |
|
Working layers |
1 layer or 2 layer ( Depends on Customer’s request ) |
|
Cooling method |
water cooling, the system will automatically switch to the cooling program immediately after the heating process and cool at full pressure (without mold opening) (customer-owned water source connection) |
|
Gradient pressurization |
0 to 3 segments |
|
Number of exhausts |
0~10 times can be set |
|
Sensor |
Nanli Measurement and Control Pressure Transmitter |
|
Special valve plate |
"Tianfeng" brand |
|
Electromagnetic reversing valve |
Taiwan "Wei Sheng" |
|
Oil pressure system |
Proportional hydraulic flow valve closed-loop control system with pressure automatic pressure compensation and oil pump delay |
|
Hydraulic medium |
40L Mobil 46# antifreeze hydraulic oil (customer-supplied) |
|
Cylinder speed |
11~50mm/s dual speed function, fast mold clamping and slow mode locking: high approach speed at low pressure and low approach speed at high pressure |
|
Power |
8KW |
|
Volume |
900×500×1450(W×D×H)mm |
|
Power |
3 phase, AC380V, 20A three-phase five-wire (customers need |
|
Weight |
about 740kg |
