Zotai News

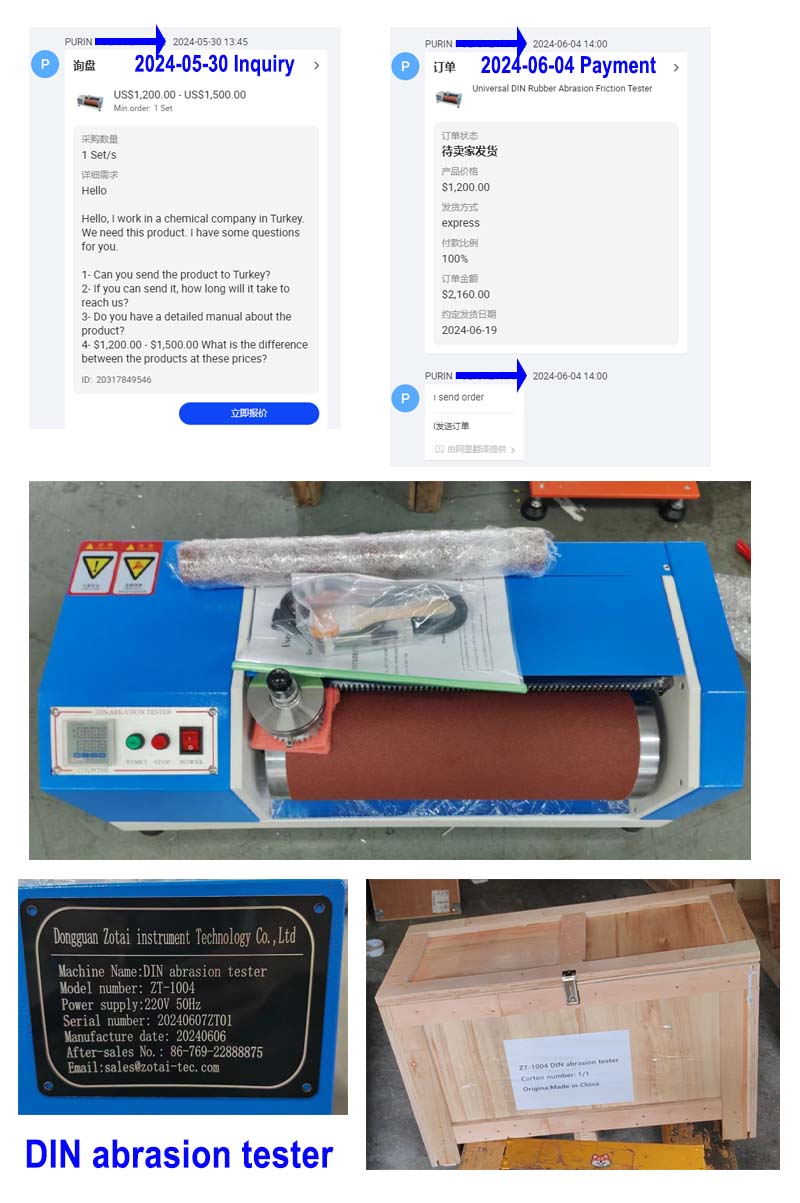

Thank You for The Trust of DIN Testing Machine Customers

Time:2024-06-11 Views:227
I am fortunate to have met a very decisive customer and team, from sending inquiries to sending out machines for only one week, including one weekend. The customer is decisive. Our production is also very awesome,thank you for your cooperation.


Corresponding standard :

GB/T9867, GB/T 20991, GB/T 26703, EN ISO 20344, ISO 4649, DIN 53516, BS 903:A9, SATRA TM147



Technical parameters :

dler

150mm

Abrasion stroke

40 ± 0.2M

Horizontal displacement

4.2mm / rotate

Stroke

20m/40m  presetting

Grips lateral displacement

4.2 ± 0.04rpm

Idler wheel speed

40 ± 1cpm

Measuring way

Auto/Manual presetting

load

2.5 ± 0.1N,5 ± 0.1N,10 ± 0.1N

Specimen size

dia 16mm, thickness at least 6mm

Emery cloth Specification:

60 #, seam is less than 2mm.

Sand paper

60 Germany

Dimension

95*66*31cm

Power

220v 50hz



Machine Specifications:

Test-arm weight 250 ± 5 (g)
Testing Load 2.5N, 7.5N
Diameter abrasive wheel dia 150 ± 450L (mm)
emery cloth 60 #, 425 ±473 ±1.5 (mm)
Wheel Speed 40 ± 1RPM
Shift screw 6 teeth / inch
Limit rotation 85 rotate
Set rotation 84 rotate (about 40M)
Return form Electric automatic reset
Drive Power 40W; 1 / 30
Power 220V 50HZ
Machine Dimensions 600 ±330 ±420 (mm)
Machine Weight 75kg





Applicable industry:

DIN Rubber Abrasion Friction Test Machine applied to test leather performance in shoes,

clothing, luggage handbag industry, research laboratories, commodity inspection, arbitration and

technical supervision departments.
