Equipment summary:

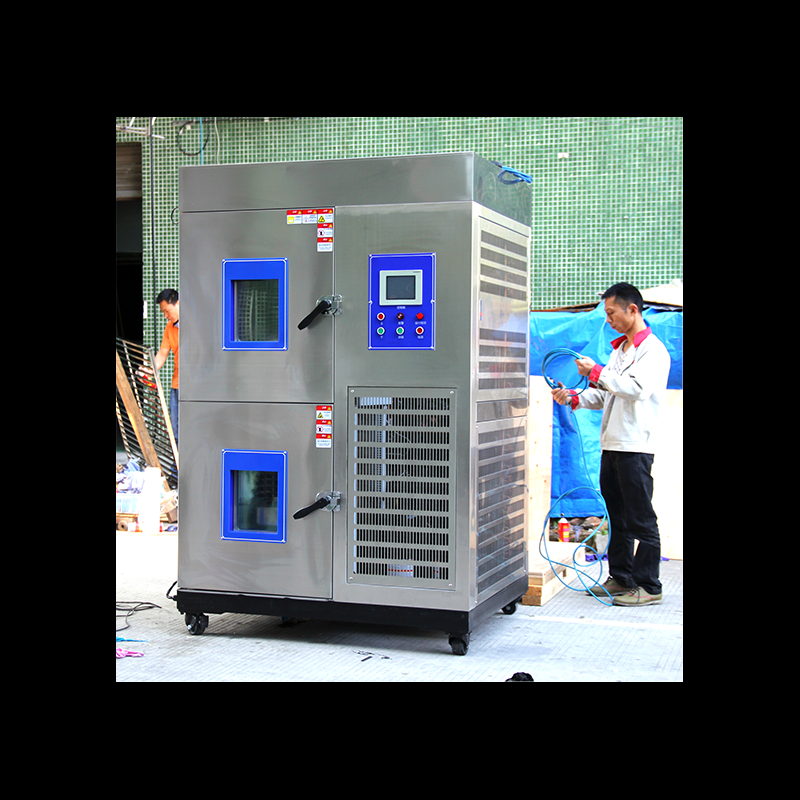

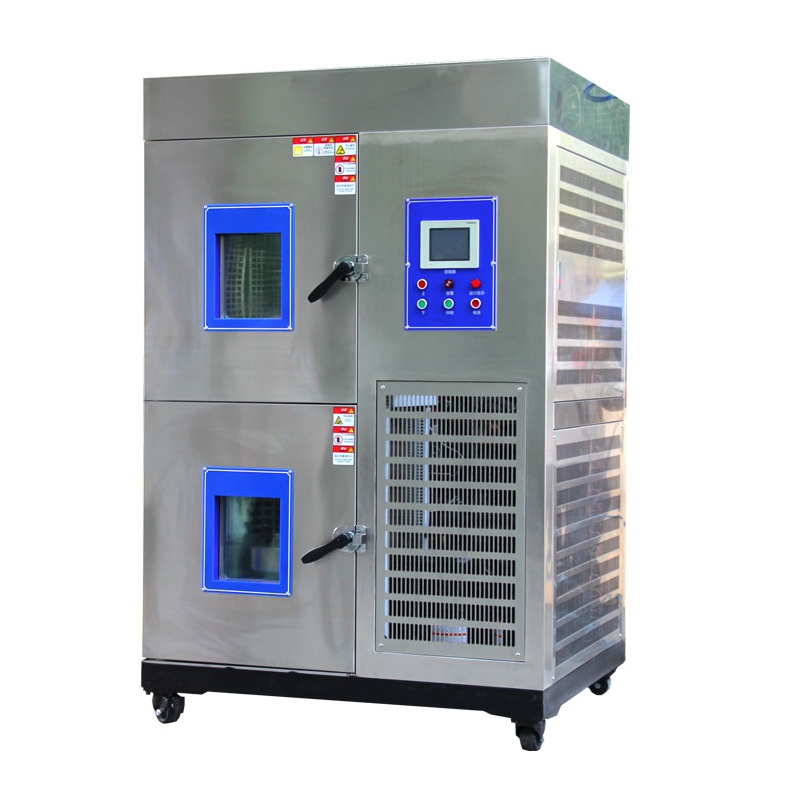

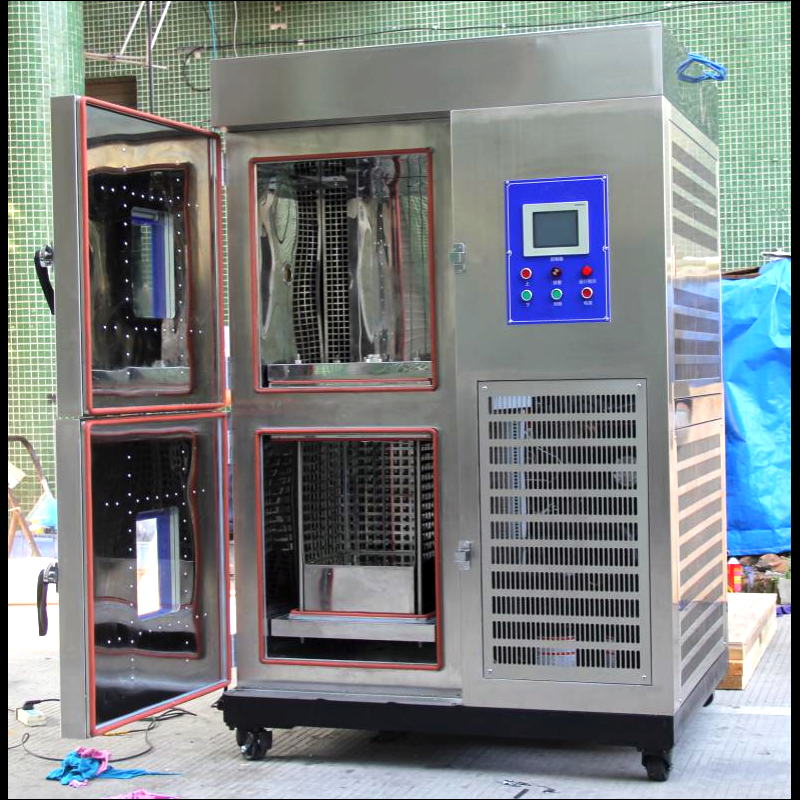

Hot and cold impact testing machines used to test the change of material under extremely high temperature and extremely low temperature environment that continue alternation in the shortest time, Testing the chemical changes or physical damage of material caused by the thermal expansion and contraction. Testing box divided two parts, one is high-temperature region, another is low-temperature region, the testing sample placed on the moving basket, using unique heat storage and cool storage, the cylinder taking basket moves up and down in the hot and cold region to complete the hot and cold temperature impact testing; applied to test the material, including metal, plastic, rubber, electronics and other materials, it can be used as a basis for improvement of their products.
Main functions:
For electrical and electronic components, automation components, communication components, auto parts, metals, chemical materials and plastics industries, defense, aerospace, military industry, BGA, PCB base plate, electronic chip, IC, semiconductor ceramic and high-Changes in the physical sacrifice of molecular materials, test the material on the high and low tension and products arrived repeated thermal expansion and contraction of output in the chemical changes or physical injury, to confirm the quality of products, from the precision of the IC component to heavy machinery , And both need it the ideal test tool.
Main features:
1. Large color LCD touch interactive microcomputer control system, easy to understand, running at a glance;
2. Closed imported compressor + environmental refrigerant, cold plate heat exchanger and dual-type ultra-low temperature refrigeration systems;
3. A LAN network communication interfaces to computer remote control, easy to use;
4. Independently set the heat, cold and hot and cold conditions, the impact of three different function, the impact of the implementation of hot and cold conditions, with high and low temperature testing machine functions;
5. Operation at boot time automatically make an appointment ahead of pre-cooling, preheating, standby;
6. Defrost cycles can be set and the number of automatic (manual) defrost;
7. Controller friendly interface and easy procedure setting, abnormal and troubleshooting display complete.
Corresponding standard:
1,GB/T2423.1-1989 low-temperature testing method
2,GB/T2423.2-1989 high-temperature testing method
3,GB/T2423.22-1989 change temperature test
4,GJB150.5-86 temperature impact test
5,GJB360.7-87 temperature impact test
6,GJB367.2-87 405 temperature impact test
Applicable industries:
Widely used in aviation, military, ships, electrical, electronics, instruments and meters; medical equipment; civilian nuclear energy; colleges and universities; research laboratories; commodity inspection, arbitration, technical supervision departments; building materials ceramic; petroleum and chemical products, machine and spare parts.
Technical parameters:
|
Temperature range |
A.high-temperature:+60℃~+150℃ (can be customized) |
|
B.low-temperature:-10℃~-40℃ (Can be customize) |
|
|
Control temperature |
±2℃; |
|
resolution |
0.01℃; |
|
Heating time at high-temperature region |
RT~+150℃ about 35min(RT is from +5~+30℃) |
|
Cooling time at low-temperature region |
RT~-40℃ about 50min(RT is from +5~+30℃) |
|
Moving time and temperature recover time |
A. testing basket moving from high-temperature to low-temperature spend 10sec |
|
B.after exchanging the temperature,the temperature recovery time: 3min~5min (Stabilization time ≥ 30min) |
|
|
Temperature conversion time |
-60 ℃ ~ + 150 ℃ 2min (no load) (high and low temperature impact constant temperature time is more than 30 min each) |
|
Moving time of gondola |
high temperature tank ~ low temperature tank within 10 seconds |
|
Box uniformity |
± 1 ℃ |
|
Device noise |
Below 75dB. |
|
Refrigeration compressor |
adopting French Taikang to increase the hermetically sealed compressor |
|
Air supply circulation system |
Japanese multi-wing centrifugal circulation fan, and the whole set of Japanese motor |
|
Refrigeration accessories |
Taiwan bending medium force evaporator, Marl fan, etc. |
|
Cooling method |
air cooling |
|
Sample rack |
sample shelf |
|
Power |
AC380V 50~60Hz 12~18KW |
|
Testing region(hot and cold) |
50cm(W)*40cm(H)*40cm(D); |
|
Outside size |
150cm(W)*200cm(H)*155cm(D) |
|
Inside material |
SUS#304 Cold-Heat-resistant stainless steel |
|
Outside material |
stainless steel |
|
Insulation material |
High-density glass wool and high strength PU foam insulation |
|
Anti-sweat structure |
insulation layer and door micro-thermal anti-sweat |
|
Expansion |
Heat reach 300℃,cold reach -100 degree |
|
Wiring |
accordance with international electrical standards |
|
Protection device |
compressor overheating, over temperature, overload, high pressure, low pressure, oil pressure, over current, under phase, power failure standby and other alarm warnings. |
|
Standard |
GB2423 [1] .02 high temperature test method, GB2423 [1] .01 low temperature test method |
Safety protection:
1. The studio is over temperature;
2. Refrigerator over-pressure;
3. Refrigerator overload;
4. Oil pressure of refrigerator;
5. Heater short circuit and overload;
6. The blower motor is overloaded.
7. System leakage protection
8. Ambient temperature: 5-45 ℃
9. Ambient humidity: ≤90% R.H
10. Conditions for ensuring performance: (Under the following conditions, the minimum temperature of -65 ℃ is guaranteed)
11. Ambient temperature: ≤30 ℃ (no condensation)
