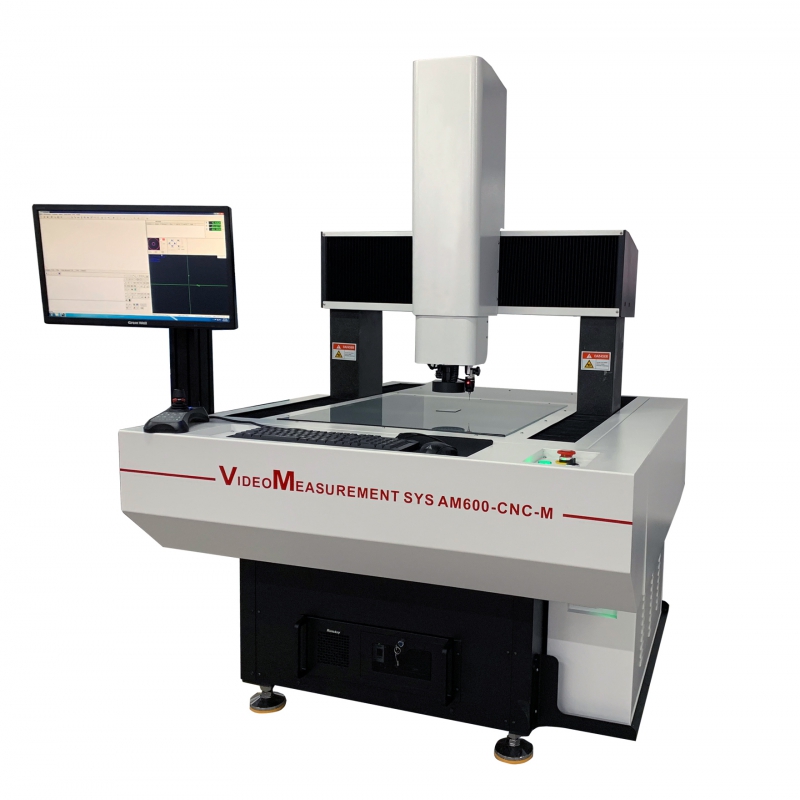

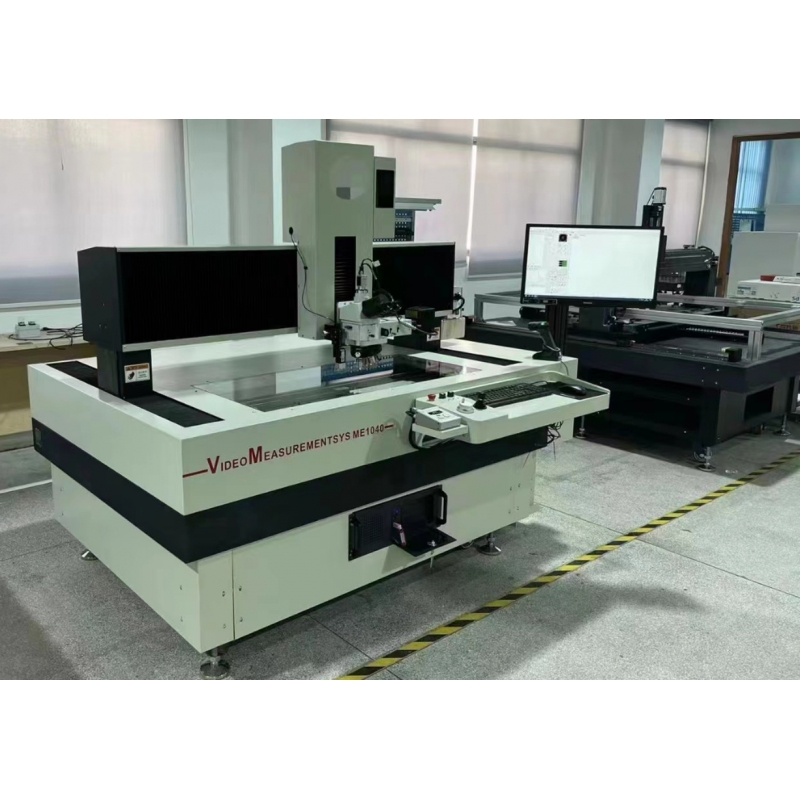

Optical Test Equipment

Model

AZ300-CNC

AZ400-CNC

AZ500-CNC

XYZ Trave Range(mm)

300×200×200

400×300×200

500×400×200

Dimension(mm)

1450*1050*1700

1600*1200*1700

1800*1400*1700

Metal Table Size(mm)

550X425

650X530

750X625

Glass Table Sixe(mm)

425X320

525X420

625X520

Weight(kg)

 600

700

900

Max Load(kg)

 25

25

25

X ,Y Axis Accuracy(μm)

2.0+L/200

Z Axis Accuracy(μm)

4.0+L/100

X,Y Move Speed

0-400mm/S(Can Optional)

Z Move Speed

0-100m/S(Can Optional)

Control Mode

Joystick+Software

Linear Scale

Resolution 0.0001mm

Linear Guide

Taiwan“Hiwin”P grade linear guideway(move parallel accuracy≤0.001mm)

Screw

Taiwan TBI" grinding ball screw

Bearing

Japan‘s original "NSK" double combination centripetal ball bearings

Motor

Japan "Pansonic" AC synchronous servo motor,Positioning accuracy≤0.001mm

Limit Switch

Japan“Omron”limit switch

Joystick

Germany“MEGATRON”Hall Style,Can lock axis

Cameral

1.3M Pixel hige resolution color digital camera (kilomega network )

Video Card

High resolution dual channel color video card

Illumination

Profile

LED cold light,parallel light

Surface

4 ring 8 segment LED cold light,with segmented independent control & 256 level programmable brightness adjustment

Optics

 Auto GPS lens,1:6.5 continual zoom

Magnification

    Optical zoom ratio:0.7~4.5×;Image zoom ratio:24~158X

Software

SBK-CNC Special automatic measurement software

Power

220V/50Hz/3A

Working Environment

Temperature 20℃±2℃,Temperature change<2℃/hr,Humidity30~80%

Table

Built-in switch power, controller, motor driver, power control switch, indicator light, emergency stop switch, mobile roller
