Phone and Computer Test Equipment

Specification

Features

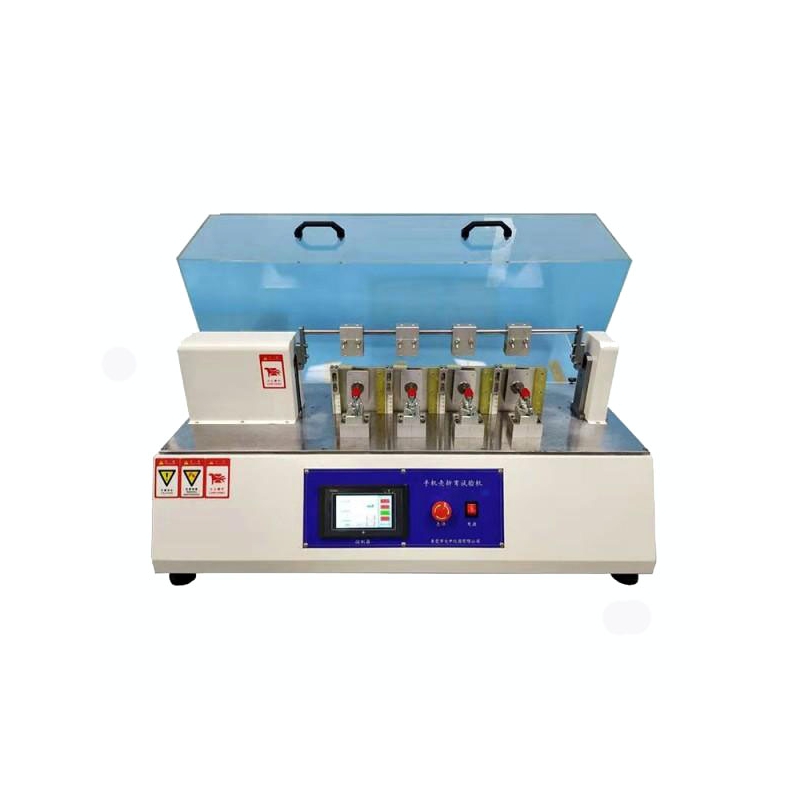

1. This machine adopts servo motor closed-loop control to make the test data more accurate.

2. Four stations, fixed by screws on the top and fast clamps on the bottom. It is convenient and quick to operate and saves time.

3. This machine adopts touch screen display control, which is more convenient and intuitive to operate, and the number of tests and angle can be set arbitrarily, which is convenient for operation.

4. The body is treated with electroplating electrostatic baking varnish, and the appearance is more beautiful and generous.

Operation method

1. First put the phone case to be tested under the fixture and lock the case.

2. Select the angle to be tested according to the actual requirements. At this time, click the “Operation Screen” on the screen to enter the operation screen to complete the setting of the bending angle, bending speed, and other parameters.

3. After the setting is completed, click the “Start” button, and the instrument will start to press down the casing to bend. After the test is completed, the device pressure lever will automatically reset.

4. Take out the sample to be tested and judge the test result.

5. In an emergency, press the emergency stop button directly.

6. After the test is over, power off and shut down.

Precautions

1. The machine must be placed horizontally before the machine test.

2. The sample plate must be clamped to prevent the test effect from being affected after loosening.

Maintenance matters

In order to maintain the appearance and mechanical life of the machine, please follow the following recommendations for regular maintenance and cleaning:

1. panel part can be cleaned with oil.

2. The paint part can be cleaned with oil and pine perfume.
