Introduction:

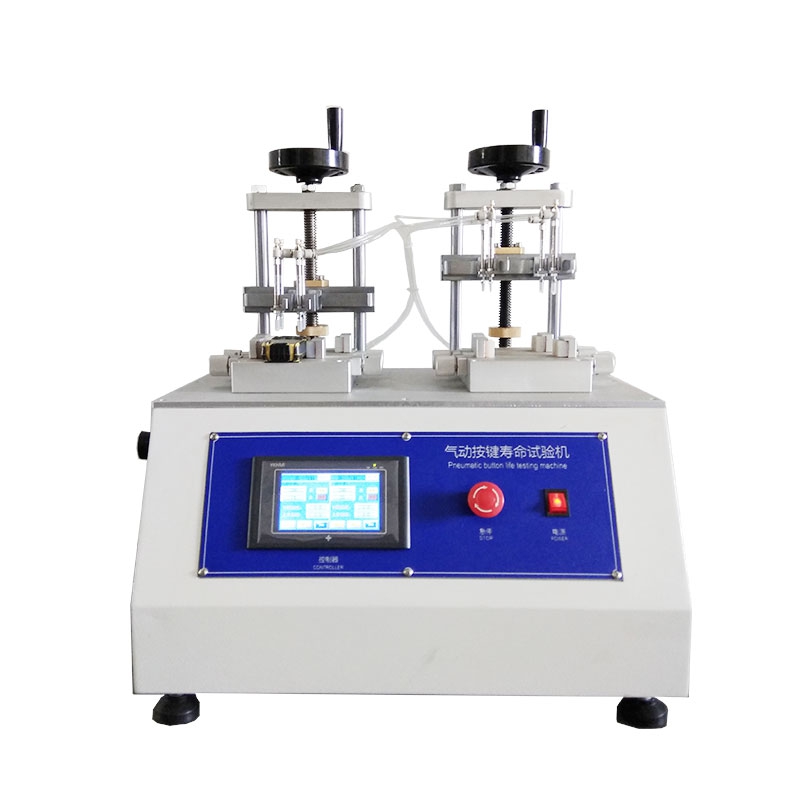

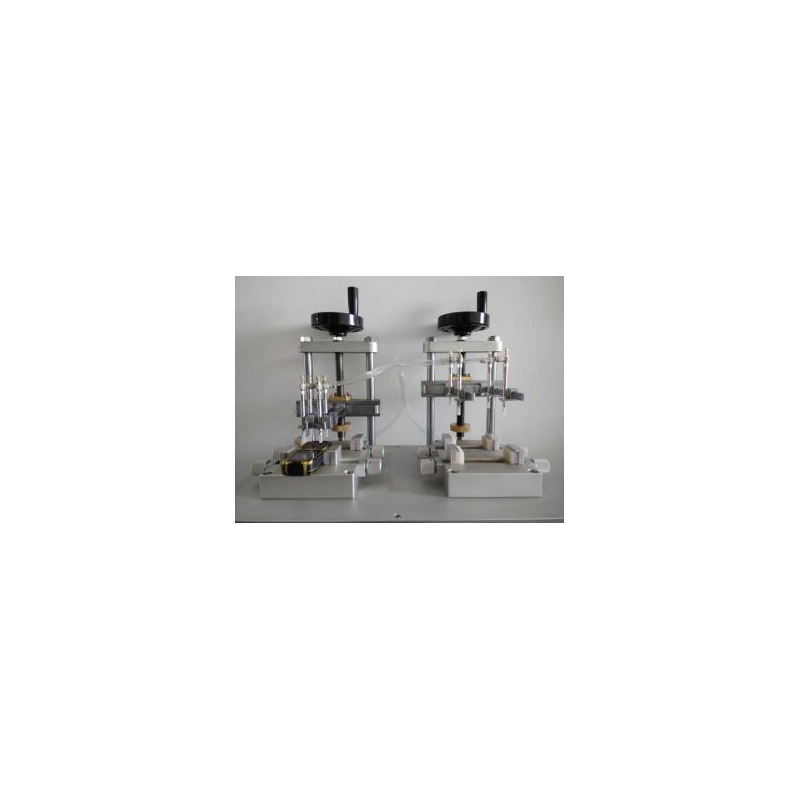

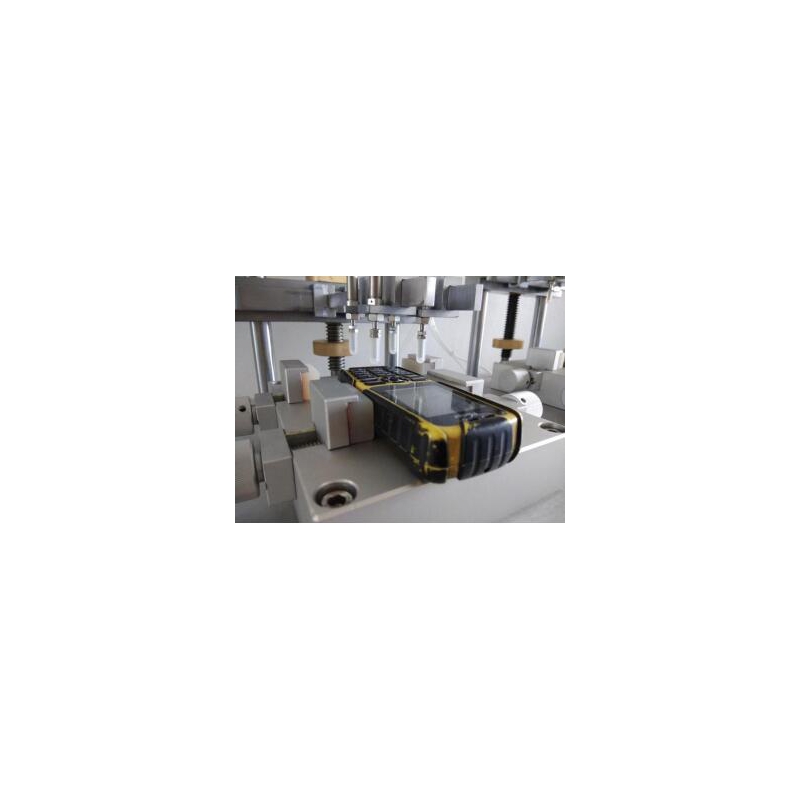

Pneumatic Buttons Keyboards Life Test Machine versatility, you can test various buttons, keyboards, switches and other fatigue life.
Pneumatic Buttons Keyboards Life Test Machine using lower cylinder head (18) driven by the drive operation, so that the keys or the keyboard and the stylus relative motion.
Technical parameters:
|
Work Station |
2 samples can be measured simultaneously, each can do six buttons |
|
Control |
touch-screen setting input direct action |
|
Test Method |
can set the keys at the same time action, can also be set according to the order of six key actions, but also arbitrarily set several stations suspend action needed |
|
Test speed |
10 ~ 60 times / min, manually adjustable |
|
Test phone thickness |
10 ~ 50mm Available |
|
Mobile holding fixture |
cover both sides of the lower clamp |
|
Height adjustment |
manually adjustable Direct |
|
Machine Size |
600 × 450 × 520mm |
|
Power source |
220V,single phase 60hz |
|
Weight |
55kg |
