Summary

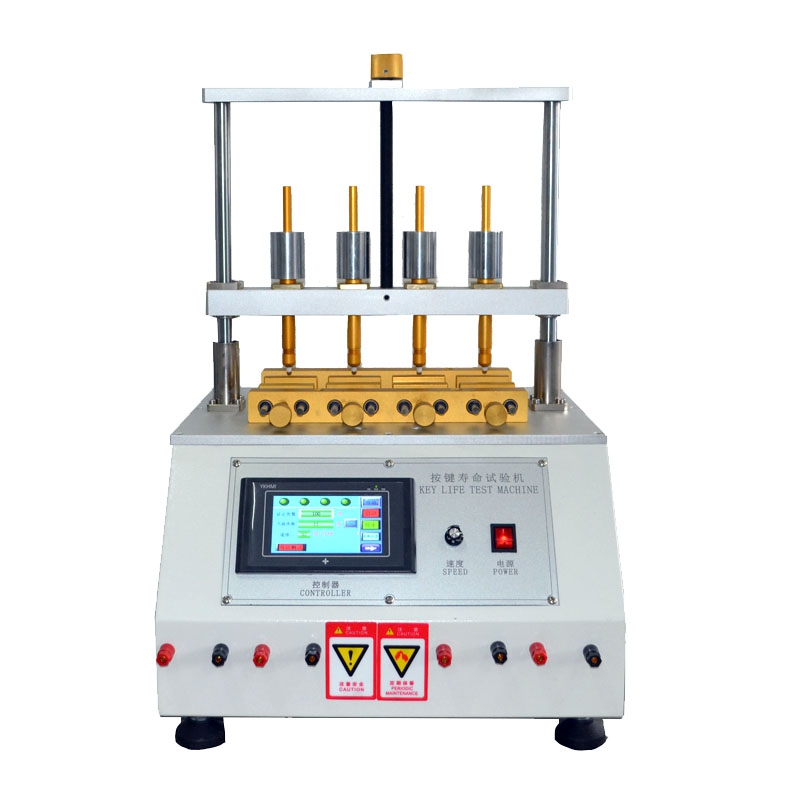

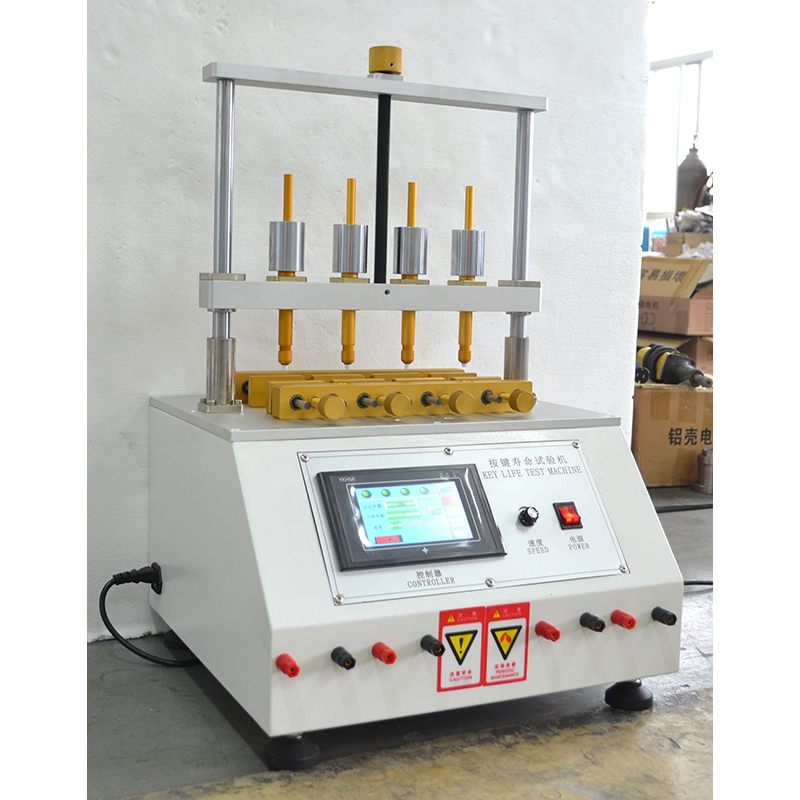

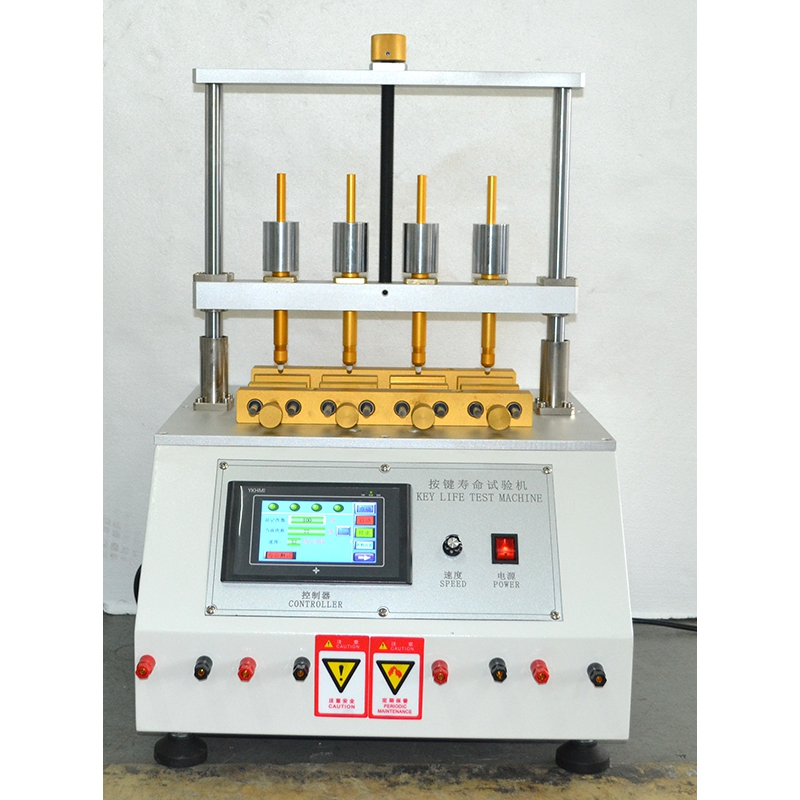

Button Switch Fatigued Life Tester is suitable for striking life aging test of button switches, computer keyboards, conductive rubber keypads, metal shrapnel keys (commonly known as” pot son”) or the same type of buttons and keys. The advanced programmable controllers will supervise the entire progress of key life test.
Specifications
|
Specifications |
uni-axial LT-1, tri-axial LT-3 ,five axises LT-5 |
|
Durable speed |
1-6 rounds/s OR speed adjustable |
|
Test pressure |
MAX load: 2kgf , loaded weight adjustable |
|
Up and down stroke |
10mm |
|
80 * 80mm |
|
|
The panel size |
50mm |
|
The impact way of movement |
up and down compression using linear bearing motion,accurate positioning |
|
Conductive test button |
Automatic stopping devices if the keys non-conductive and destroyed |
|
Automatic stop device can be set to 8 digits |
99999999 times automatic shutdown |
|
Touch warming lights |
connected by touch probe with metal reeds |
