Instruction:

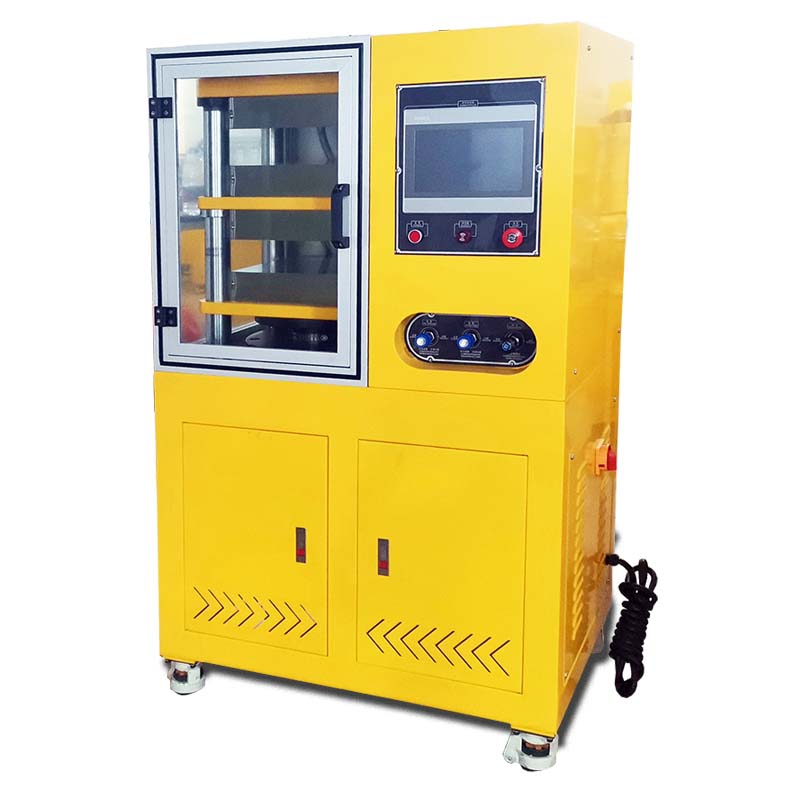

Hydraulic Silicone Rubber Heat Press Machine is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature, make the material shaping, testing and serving as the basis for the ingredient of mass production.
Parameters:
|
Capacity |
10T,20T,30T,50T |
|
Temp. Range |
Room temp. ~300℃ |
|
Temp. Controller |
LED Indicator,press key set input, |
|
Timer |
LED display,time range 0.1S~99min~9.9hr |
|
Heating type |
Electrical Heating |
|
Hot pressure plate |
300×300mm / 350x350mm / 500x500mm optional |
|
Cold pressure plate |
300×300mm / 350x350mm / 500x500mm optional |
|
Distance of pressure plate |
100mm |
|
Pressure material |
SKD chromium-molybdenum alloy |
|
Pressure surface |
Mirror chrome plated |
|
Cooling temperature scope |
Room temp. ~+5℃ |
|
Cooling type |
Water cooling / Air cooling (optional) |
|
Oil pressure system |
The proportion hydraulic pressure current capacity loop circuit control system,the GPY oil pump driver high performance electroencephalographic |
|
|
matching high accuracy non resistance piston of oil cylinder carry out constant speed rate control mode, can preelection one, twice pressure and time. |
|
Oil cylinder stroke |
Max 200mm |
|
Oil cylinder speed |
11mm/s |
|
Pressure gauge |
0~350kg/sq.cm |
|
power |
10.6HP |
|
Dimension W×D×H |
1000×500×1500 mm |
|
Power supply |
3 phase,AC 380V,20A (or customize) |
|
Weight |
About 500kg |
