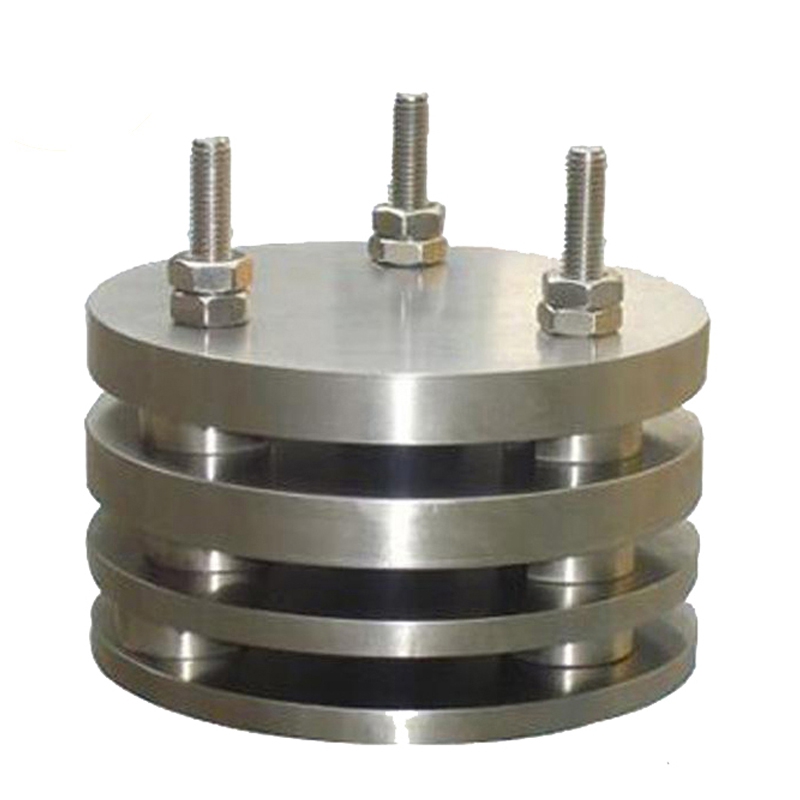

Manual Rubber Permanent Compression Deformation Testing Machine
Summary:
This test consists of parallel steel fasteners limiter and composition, in line with GB7759, ISO815 requirements for vulcanized rubber and thermoplastic rubber at room temperature, high and low temperature conditions to certain compression ratio, after a certain time measurement of compressed rubber deformation.
Technical Parameters:
| Sample | Type A: diameter 29mm, height 12.5mm |
| Type B: diameter 13mm, height 6.3mm | |
| height limiter |
Sample Type A B Compression ratio of 25% mm 9.3-9.4 4.7-4.8 Compression ratio of 15% mm 10.6-10.7 5.3-5.4 When the compression rate is 10% mm 11.25-11.3 5.65-5.7 |
| Dimensions | Diameter 115mm, height of about 110mm |
| Quality | 10kg |
