Specification:
|
Model |
NDJ-5s |
|
Control / display mode |
Large screen LCD display (in Chinese and English) |
|
Speed (r/min) |
6/12/30/60 |
|
Measuring range |
10~100000mPa.s (1-10mPa.s, need to choose 0# rotor) |
|
Rotor |
1 - 4# (standard); 0# rotor (optional) |
|
Viscosity accuracy |
0.01mPa.S |
|
Measurement error (Newtonian liquid) |
±1% |
|
Repeat error (Newtonian liquid) |
±0.5% |
|
Timing function |
Yes |
|
Temperature measurement |
Yes |
|
Automatic scanning function |
Automatically scan and recommend a priority combination of rotor and speed |
|
Display measurement range |
Automatically display the selected combination of rotor and speed. Viscosity measurement range |
|
Data output interface |
Yes |
|
Thermostatic unit |
Option (including special thermostats for various viscometers, thermostatic cups, etc.) |
|
Working power |
110V / 60Hz or 220V / 50Hz |
|
Dimensions |
400 × 400 × 480(mm) |
Summary:

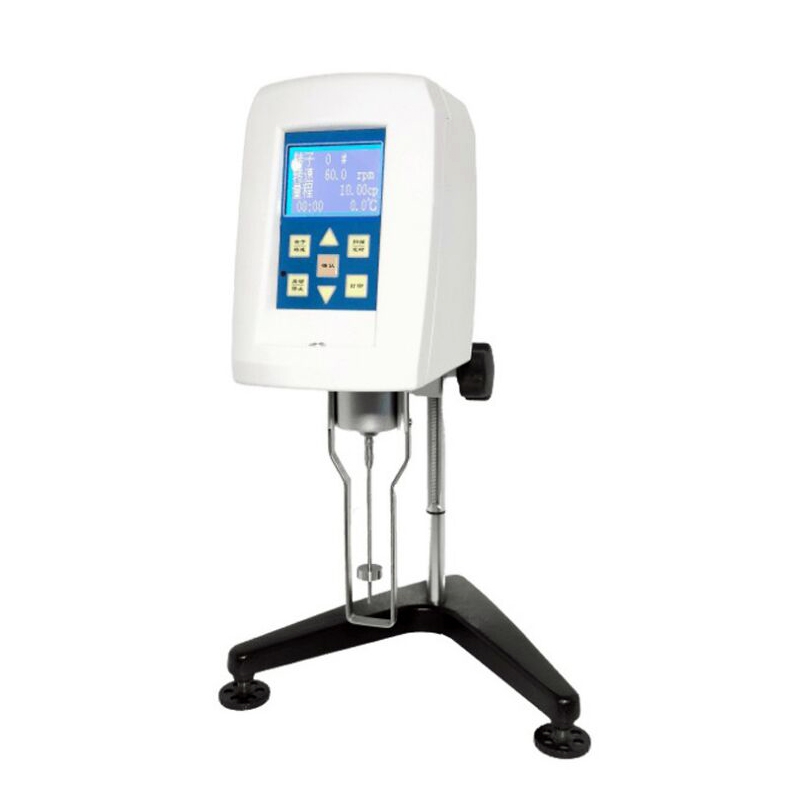

The NDJ Series Digital Rotary Viscometer measures the viscosity of Newtonian liquid or non-Newtonian liquids. The rheological properties of non-Newtonian liquids can be analyzed using viscometer data processing software.
Applicable industry:
NDJ series digital rotary viscometer is widely used in fluid, semi-fluid production, research institutes and universities of oils, paints, coatings, slurries, textiles, foods, pharmaceuticals, adhesives and cosmetics.
